10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
10~80mm2 Range Wire Cable Production Line Paper Wrapping Machine Siemens Motor Driven
Specifications
Brand Name :
Herrman
Model Number :
4x/8x/12x
Certification :
ISO , CQC , SGS , CE
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10 sets per month
Delivery Time :
3 months after receit of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Production Range :
10~80mm2
Line speed :
8-16 m
Color :
Customerized
Motor :
Siemens
Max rotating speed :
800RPM
Actual max working speed :
600RPM
Description

Paper Wrapping Machine Wire Production Line Transposed Wire And Cable

1. Main Technical Specification

Production Range 10~80mm2
Width/Thickness Ratio 0.4-12
Paper size Width 6~30mm Thickness 0.040~0.125mm
Max rotating speed 800RPM
Actual max working speed 600RPM
Line speed 8-16 m
Diameter of taping head External diameter at 350mm, internal diameter at 75mm
Range of paper wrapping pitch 8~32mm
Breaking detector theory with optical electrical Kraft break detector
Electrics SIEMENS or OMRON
Transducer Mitsubishi

2. Introduction

This machine is use for making the paper taping for transformer wire.

It's according the request of transformer manufactory for improve the quality of the paper wrapping strip. Our Paper Taping Machine has high speed with invariablenes tension.

3. Main Parts:

Caterpillar

Meter measuring device

Take up

Electric control

Pay off Stand

Straightening device

Tapping head

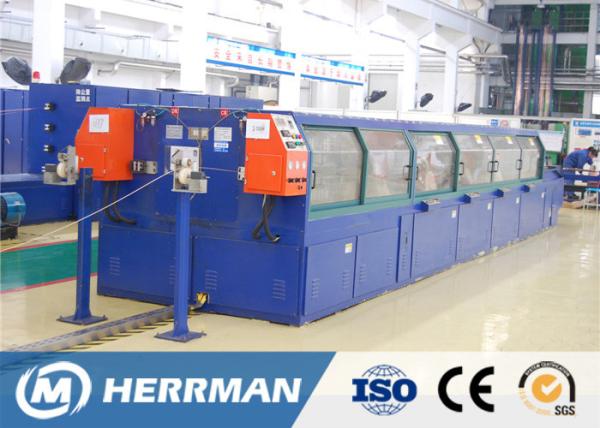

4. Picture for reference
