Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
Specifications
Brand Name :
Herrman
Model Number :
90mm, 120mm
Certification :
CE, UL, SGS,TUV, ISO, GS
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability :
20 Sets Per Month
Delivery Time :
95 Working Days
Packaging Details :
Export Packing
Product Name :
Outdoor Optical Fiber Cable Sheathing Line
Cable Diameter :
Ф7-Ф35mm
Screw Type :
BM Screw
Extruding material :
LDPE, MDPE, HDPE, PA12 and HF
Extruder Output :
280kg/h
Line Speed :
100m/min
Description

Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing

Application

1 To produce optical fiber cable inner sheathing on cable core.

2 To produce optical fiber cable outer sheathing on inner sheathing armoured or non-metallic cable core.

3 The machine will be capable to produce parallel dual steel wires or FRP enforced tube for optical fiber cable etc.

4 Extruding materials: LDPE, MDPE, HDPE, PA12 and HF.

Basic Line Configuration

sheathing line for fiber optic cable with 90mm or 120mm screw extruder.

The sheathing normally contains the following components by option:

Pay-off with tension dancer

yarn server

Steel tape pay-off

Steel tape Splice table & Welder

Metal tape accumulator

Steel tape corrugators and lubricator

Ripcord pay-off

Steel tape cone forming station

Armor powder application system for cone formin

Water blocking tape pay-off

Dual single head concentric binder

Mylar tape pay-off

Hot melt applicator

90mm(or 120mm) Extruder

First Water trough

Second water trough

Diameter gauge/ lump detector

Spark tester

Hot stamp printer

Linear Belt Capstan

Cable accumulator

Take-up

Electrical control system (PLC + touch screen)

Main Technical Data

Cable Diameter   Ф7-Ф35mm
  Structure Speed   100m/min
  Line Speed   10--90 m/min
  Line Length   <60m approximately
  Screw Type   BM
  Line center height   1000mm
  Pay-off reel size   PN1000-PN2000
  Take-up Reel Size   PN1000-PN2000
  Extruder Output   Max280kg/h

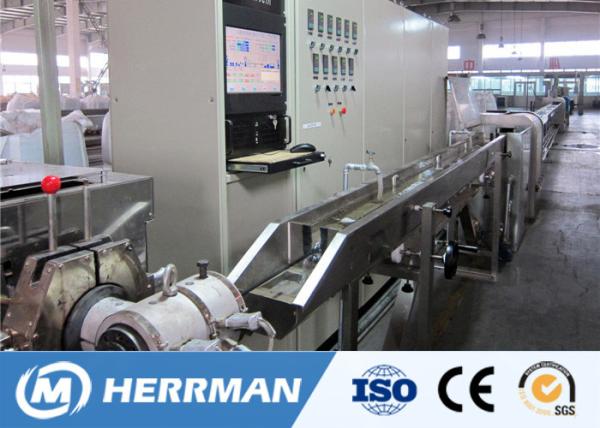

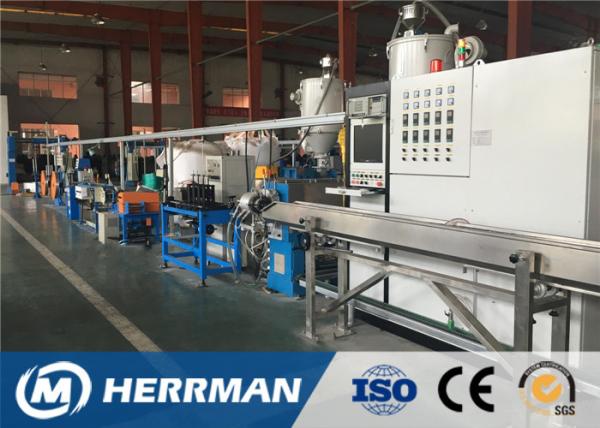

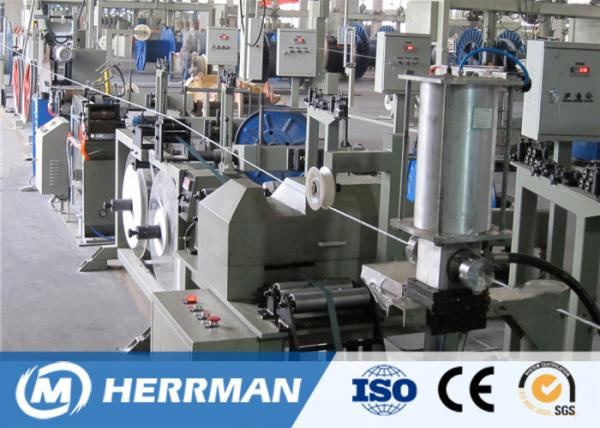

Machine Photo

Optical Fiber Cable Sheathing Line For Armoured Cable Core Inner / Outer Sheathing
