Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
Specifications
Brand Name :
Herrman
Model Number :
50MM
Certification :
CE, UL, SGS,TUV, ISO, GS
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability :
20 Sets Per Month
Delivery Time :
62 Working Days
Packaging Details :
Export Packing
Product Name :
Optical Fiber Secondary Coating Line For Loose Tube
Optical fiber number :
12PCS, 24PCS
Pay-off tension :
(0.4-1.2N)±0.05N
Line Sspeed :
800n/min
Extruded tube dia. :
(Ф1.0-Ф6.0)mm±0.05
E.F.L range :
0~0.3%
Description

Optical Fiber Secondary Coating Line For Loose Tube 2 - 12 Optical Fibers with PE, PBT

Application,

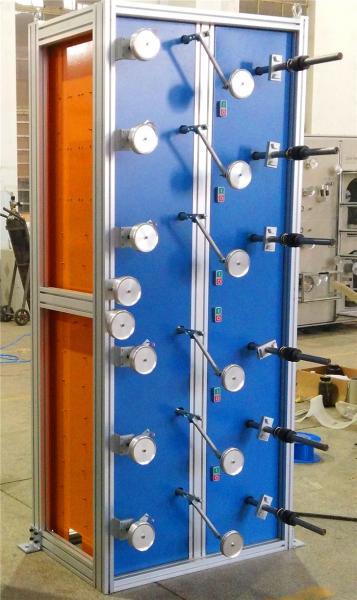

Secondary coating line has a max. working speed of 350m/min. The secondary coating line is consisted of:　24 Optical fiber pay-off, Jelly degassing and filling device(vacuum type) ,. Extruding group 50mm, Hot water trough and hot water tank,.Φ800 over-length capstan, Cooling trough and chiller, Blowing dryer , Diameter gauge, Wheel capstan dancer of over-length control, Wheel capstan haul-off, Take-up dancer, Ф800mm Dual automatic take-up, Electrical control system (PLC+ touch screen)

Main Technical Data

Type
  		   HM05 HM06

 Optical fiber number		 12 24
 Pay-off tension    (0.4-1.2N)±0.05N (0.4-1.2N)±0.05N
 Optical fiber reel size 25km/50km reel 25km/50km reel
 Line structure speed 450m/min 800m/min
 Operation speed 20~350m/min (Ф1.8) 600m/min (Ф1.8*0.3mm, 6-fiber, without SZ device)
 Extruded tube dia. (Ф1.8—Ф4.0)mm±0.05 (Ф1.0-Ф6.0)mm±0.05
 Take up reel size PN800mm PN800mm, PN630
 E.F.L range 0~0.3% 0~0.3%
 Extra-attenuation ≤0.02dB/km ≤0.02dB/km(1310nm,1550nm)

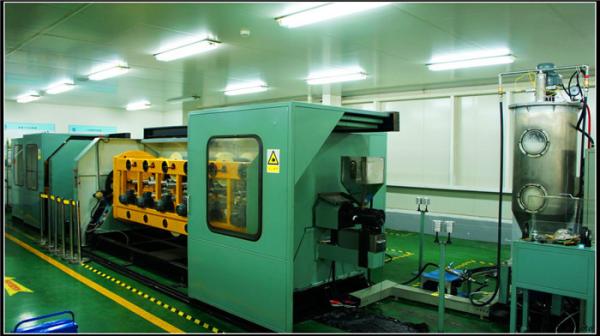

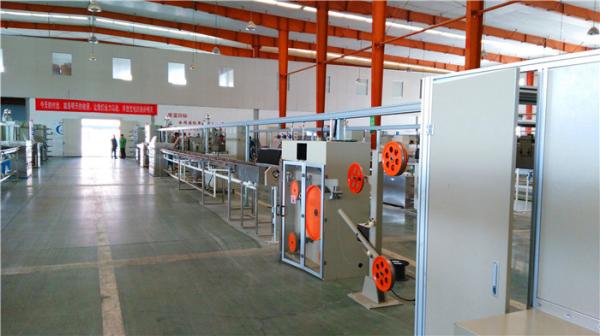

Machine Photo
Automatic Fiber Optic Cable Production Line Loose Tube Secondary Cable Coating Machine
