Professional Composite RTP Pipe Making Machine Aramid Taping Machine 4/6 Pads
Professional Composite RTP Pipe Making Machine Aramid Taping Machine 4/6 Pads
Specifications
Brand Name :
Herrman
Model Number :
6 , 4
Certification :
CQC CE SGS ISO
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, , T/T
Supply Ability :
10 Sets Per Year
Delivery Time :
160 days
Packaging Details :
Plastic Films
Usage :
Aramid Taping
Final Product :
RTP Pipe With Aramid Tape
Aramid Tape Width :
20-150mm
Aramid Tape Thickness :
0.6-1.5mm
Pipe Diameter :
76-400mm
Aramid Tape O.D. :
1200-1800mm
Description

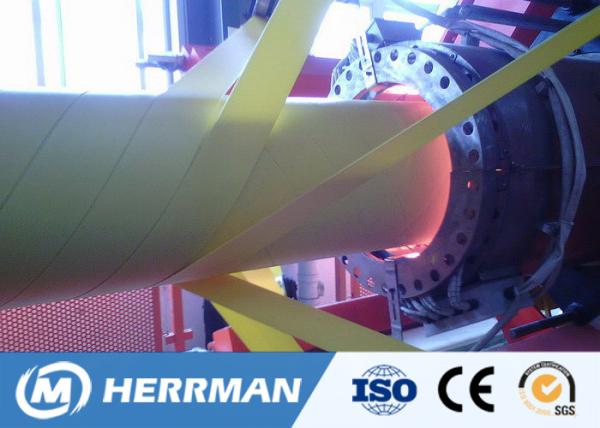

Composite Pipe Machine Pipe Wrapping Machine Aramid Taping Machine

1. Usage

The machine is mainly used for Taping the aramid fiber on the outer of the high pressure composite pipe, reinforcing inner pipe by second layer aramid fiber, then composite pipe core is formed after heat curing.

2. Main Characteristics

Inner adopt far infrared heater, heating temperature automatically track the line speed and keep constant.

Eveary plate pay-off tension adopts closed loop control, which can be realize full pad to empty pad of aramid fiber pay-off tension constant.

3. Main Technical Data

Aramid fiber size(W x T) (mm) (20~150) x (0.6~1.5)
Pad qty 4/6 pads
Pipe OD (mm) 76~400
Pad size(OD x ID x W) (mm) (1800~1200) x 200 x (20~150)
Central height (mm) 1100
