Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
Specifications
Brand Name :
Herrman
Model Number :
400/216+216
Certification :
CE, UL, SGS,TUV, ISO, GS
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, or By Negotiation
Supply Ability :
2 Sets Per Month
Delivery Time :
121 Working Days
Packaging Details :
Export Packing
Product Name :
RTP Composite Pipeline Steel Wire Reinforced Plane Type Winding Machine With Tension Control
Steel Tape QTY :
400/216+216
Max. armoring O.D. :
325mm
Hauf off :
6-claws hual-off device
Steel wire diameter :
0.6-2.0mm
Max. rotating speed :
10rpm
Description

RTP Composite Pipeline Steel Wire Reinforced Plane Type Winding Machine With Tension Control

Main Feature

It is usually adopted for winding steel wire to reinforce the strength of RTP.

- Steel wire pay-off tension is controlled by mechanical friction, and can be adjusted.

- Stranding cage adopts plane type structure. It has front and back support, with good rigidity.

- Each part is driven by independent motor. It adopts SIEMENS PLC to unified control and managed the working condition of each motor. The rotating speed and stranding pitch can be changed by stepless and shown on the touch screen.

Main Technical Specification

Specification JLC-400/216+216
Steel wire diameter 0.6-2.0mm
Max. armoring O.D. 325mm
Max. rotating speed 10r/mim
Haul-off device Hual-off type

6-claws hual-off device

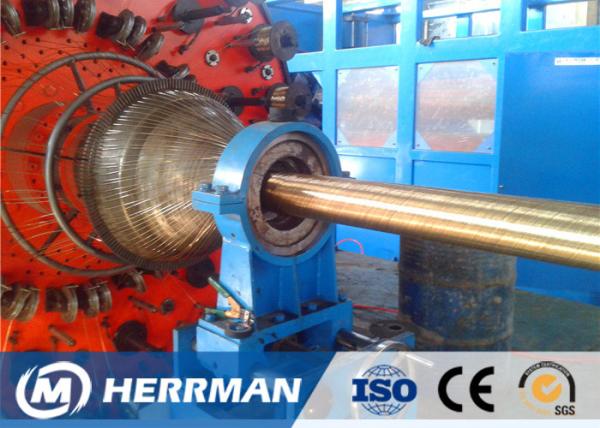

Machine Photo

Steel Wire Reinforced Yarn Winding Machine Plane Type Tension Control
