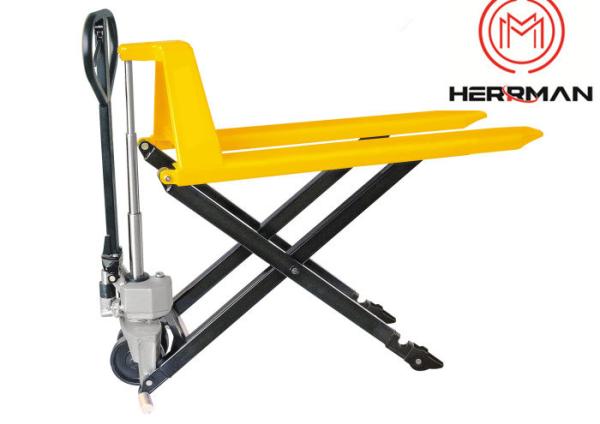

Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack
Specifications
Brand Name :
HERRMAN
Model Number :
JF
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T,O/A
Supply Ability :
1000 SETS PER YEAR
Delivery Time :
21 Working days
Packaging Details :
In wooden case
Product Name :
High Lift Truck
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair
Min. Lifting Height :
3.3inch
Fork Width :
21/27inch
Weight :
230-254lbs
Fork Length :
45.3inch
Core Components :
Motor, Pump, Engine
Warranty :
1 year
Description

hand pallet jack forklift 2200lbs capacity high lift hydraulic manual truck

Hand pallet truck JF features:

• ldeal design with numerous possibilities makes this unit very suitable as a pallet truck/scissor lift table.

• Telescopic jack composes of 3 piston rods creating light pumping force giving great rigidity.

• support legs come into operation automatically.

• It prevents the unit from moving when the forks are raised to keep the safety of the operator.

• Truck automatically slows the descending speed when heavy goods loaded to prevent cargo damage.

• 210 degree turning radius.

• 2 lateral stabilizers when raised ensure good stability.

• Option: Stainless Steel.

Hand pallet truck JF size information:
Model JF
Capacity Q(kg) 1000
Lowered fork height h13(mm) 85
Steering wheel mm Φ180X50
Fork wheel mm Φ74X50
Fork length l(mm) 1150
Width overall forks b5(mm) 520/550/685
Aisle width for pallets 1000×1200 crossways Ast(mm) 1715
Aisle width for pallets 800×1200 lengthways Ast(mm) 1765
Turning radius Wa(mm) 1360
Service weight kg 104-115
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack
PRODUCTION SCENE
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack
PACKING&SHOPING
Mobile 85mm Fork Height 1000kg Hand Scissor Lift Pallet Jack
FAQ


Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
