5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift
5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift
5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift
5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift
5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift
5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift
Specifications
Brand Name :
HERRMAN
Model Number :
CPD15/20/30/35Ex
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
By negotiation
Payment Terms :
L/C, D/A, D/P, T/T,O/A
Supply Ability :
Ten thousand sets per year
Delivery Time :
20days
Packaging Details :
In wooden case
Name :
Explosion-Proof Electric Forklift Truck - Xilin CPD-Ex
Fork Length :
1070mm
Turning radius :
1980-2430mm
Overall Width :
1140mm-1220mm
Max. Lifting Height :
3000-5600mm
Power Souce :
AC Motor
Rated Loading Capacity :
3 Ton/2 ton/1.5 Ton/2.5 Ton
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Rep
Type of drive control :
AC
Description

5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

Advantages:

Our Ex AC type electric forklift is approved with Explosion-proof mark: Ex d mb s ⅡB T4 Gb/Ex tD A21 IP65 T130℃ explosion-proof equipment for Category 2G, applicable to Zone I and Zone II which may have explosive gas environment. Offer high safety functions according to international standards.

  • Side-put lifting cylinders and chains offer Wide-view visibility .
  • AC Variable-frequency speed control technology, greatly improved the reliability and safety.
  • Advanced H-drive axle, low center of gravity design, with stable turning.
  • With regenerative braking system, ramp soft starting, reverse braking system and other protection settings. Improve the safety under the hazardous environments.
  • Charger connection and emergency switch have an inter-lock system, safe for charging.
  • Special explosion-proof sealed VBS batteries conform to UK BS directive.
  • With anti-friction flameproof brake plate.
  • With alloy copper plated truck back body and forks.

SIZE INFORMATION

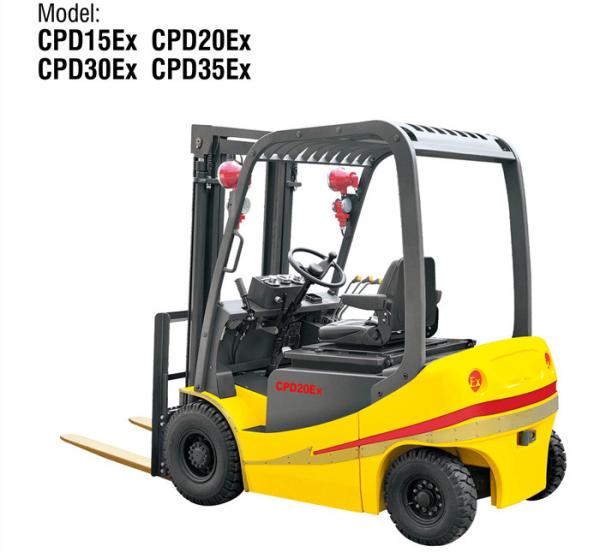

Model CPD15Ex CPD20Ex CPD30Ex CPD35Ex
Explosion-proof Exd mbsⅡBT4 Gb/Ex tD A21 IP65 T130℃
Operation type seated seated seated seated
Capacity/rated load Q(kg) 1500 2000 3000 3500
Load centre distance c(mm) 500 500 500 500
Lift height h3(mm) 3000~5600 3000~5600 3000~5600 3000~5600
Load distance, centre of drive axle to fork x(mm) 428 428 498 498
Wheelbase y(mm) 1460 1460 1850 1850
Service weight(with battery) kg 3520 3680 5120 5300
Axle loading, laden front/rear kg 4210/810 4820/860 7260/860 8010/790
Axle loading, unladen front/rear kg 1660/1860 1760/1920 2510/2610 2620/2680
Tyre size, front 6.50-10-10PR Ex 6.50-10-10PR Ex 28×9-15 Ex 28×9-15 Ex
Tyre size, rear pcs 5.00-8-8PR Ex 5.00-8-8PR Ex 6.50-10-8PR Ex 6.50-10-8PR Ex
Wheels, number front rear(x=driven wheels) b10(mm) 2x/2 2x/2 2x/2 2x/2
Tread, front b11(mm) 970 970 1000 1000
Tread, rear 920 920 970 970
Tilt of mast/fork carriage forward/backward . 3/6 3/6 4/6 4/6
Height, mast lowered h1(mm) 2090~2450 2090~2450 2040~2660 2040~2660
Height, mast extended h4(mm) 4067~6667 4067~6667 4280~7280 4280~7280
Height of overhead guard(cabin) h6(mm) 1992 1992 2140 2140
Seat height h7(mm) 980 980 1100 1100
Coupling height h10(mm) 480 480 590 590
Overall length l1(mm) 3300 3300 3755 3755
Length to face of forks l2(mm) 2160 2160 2640 2640
Overall width b1(mm) 1140 1140 1220 1220
Fork dimensions s/e/l(mm) 45/120/1070 50/120/1070 55/130/1070 55/130/1070
Fork carriage type A,B A A A A
Fork carriage width b3(mm) 980 980 1200 1200
Ground clearance, laden, below mast m1(mm) 100 100 110 110
Ground clearance, centre of wheelbase m2(mm) 130 130 140 140
Aisle width for pallets 1000×1200 crossways Ast(mm) 3600 3600 4080 4080
Aisle width for pallets 800×1200 lengthways Ast(mm) 3400 3400 3880 3880
Turning radius Wa(mm) 1980 1980 2430 2430
Travel speed, laden/unladen km/h 11.5/12 11/11.5 11.5/12 11/12
Lift speed, laden/unladen mm/s 280/300 260/300 220/240 200/240
Lowering speed, laden/unladen mm/s <600 <600 <600 <600
Max. gradeability, laden/unladen % 10/15 10/15 10/15 10/15
Service brake mechanical/hydraulic
Battery voltage, nominal capacity K6 V/Ah 48/480 48/540 80/480 80/540
Battery weight kg 820~860 920~960 1320~1380 1480~1540
Type of drive control AC AC AC AC
Sound level at the driver’s ear acc.to DIN 12053 dB(A) 68 68 68 68

PRODUCT DESCRIPTION

5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift


5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

5.6m Height 3.5t Explosion Proof Sit Down Electric Powered Forklift

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
