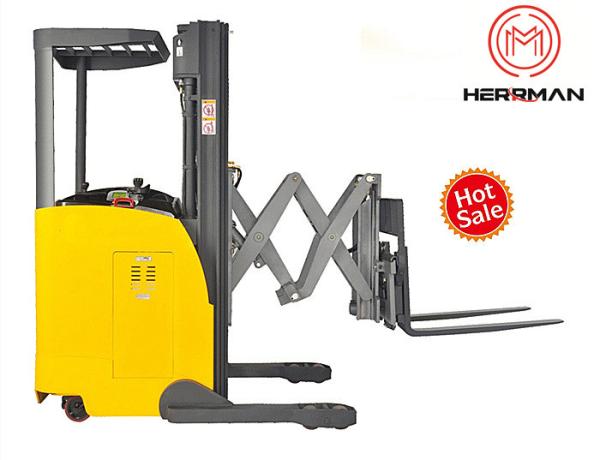

AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck
Specifications
Brand Name :
HERRMAN
Model Number :
CQDH15C double scissor forklift
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Delivery Time :
15-30 work days
Packaging Details :
1pc / pallet or 1pc / wooden box
Rated Loading Capacity :
1 ton
Max. Lifting Height :
3000mm 3500mm 4000mm 4500mm 5000mm 5500mm 6000mm
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Rep
Warranty :
2 Year
Warranty of core components: :
1 Year
Fork Length :
1070mm
Fork Width :
100mm
Power Souce :
AC Motor
Power type :
Electric Power
Marketing Type :
New Product 2020
Core Components :
Motor, Pump, Engine
Load Centre :
500mm
Options :
Lifting Height
Description

AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck

PRODUCT DESCRIPTION

Herrman 1000kgs 1ton double scissor forklift max.lift height 6m Electric Fork Reach Truck

AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck

Advantages:

SAFETY AND STABILITY
● Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.
● Equipped with adjustable hand-rest, adapted to different operator.
● Built-in pressure relief valve protects the trucks from overloads.
● Emergency power disconnect.

STRUCTURAL
● Low Center of Gravity ensures the stable operation.
● Vertical driving wheel has a small turning radius and easy to maintain. The motor structure is water-proof and dust-proof.
● The Scissor Reach Forks is operated by electric controller, which makes operation stable and no impact.

SERVICEABILITY
● Low battery protection setting prolongs the battery use time.
● All pivot points have grease fitting and serviceable bushing, reducing component wear and extending component life.
Option:
* Straddle legs
* Double front wheels
* Side shift
* Full free lift masts
SIZE INFORMATION
Model CQDH15C(double scissor)
Capacity / rated load (kg) 1000
Load centre distance c(mm) 500
Load distance,centre of drive axle to fork x(mm) 159 135
Height, mast lowered h1(mm) 2125/2375/2625 2185/2345/2505/2675
Free lift h2(mm) ~/~/~ 1575/1700/1825/2000
Max. lift height h3(mm) 3000/3500/4000 4500/5000/5500/6000
Height, mast extended h4(mm) 4035/4535/5035 5535/6035/6535/7035
Height of overhead guard (cabin) h6(mm) 2246
Overall length l1(mm) 2585 2609
Overall width b1/b2(mm) 1308/1040 1308/1040 1370/1040
Fork dimensions s/e/l(mm) 35/100/1070
Aisle width for pallets 1000x1200 crossways Ast(mm) 2951 2971
Aisle width for pallets 800x1200 lengthways Ast(mm) 3034 3056
Turning radius Wa(mm) 1718 1718
Travel speed, laden / unladen Km/h 6.5/7
Lift speed, laden / unladen m/s 0.135/0.16
Service weight (with battery) (kg) 2480/2530/2590 2730/2830/2930/3030

AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck

PACKING&SHOPING

AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck

PRODUCTION SCENE

AC Control 1070x100mm 1000kgs Reach Scissor Lift Forklift Truck

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
