Walk Behind 1.5 Ton 1600mm Economical Semi Electric Pallet Stacker
Walk Behind 1.5 Ton 1600mm Economical Semi Electric Pallet Stacker
Specifications
Brand Name :
HERRMAN
Model Number :
CDD15B-E
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
By negotiation
Payment Terms :
L/C, D/A, D/P, T/T,O/A
Supply Ability :
Ten thousand sets per year
Delivery Time :
20days
Packaging Details :
In wooden case
Rated Capacity :
1500kg
Min. Lifting Height :
1.6m
Lift Height :
1600/2500/3000/3300/3500mm
Load Center Distance :
400mm
Power Souce :
DC MOTOR
Fork Length :
1070mm
Operator Type :
Walkie
Service weight :
335/395/415/425/435kg
Fork Width :
300-930mm
Description

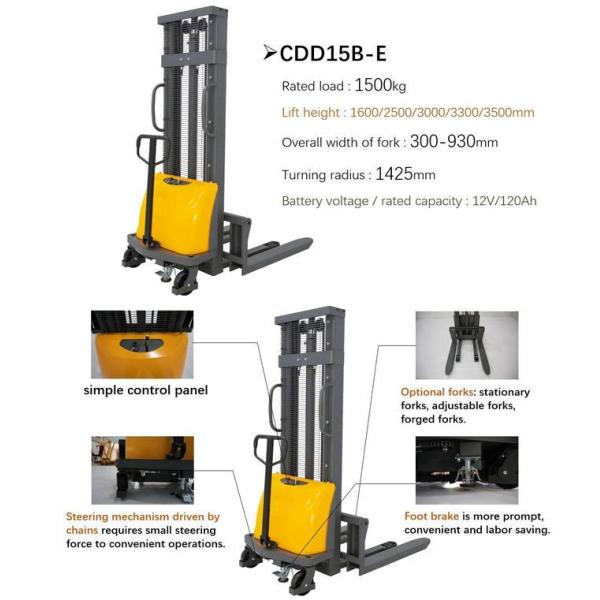

Walk Behind 1.5 Ton 1600mm Economical Semi Electric Pallet Stacker


Advantages:

● With hydraulic leveler control lifting and lowering, speed is adjustable.
● Explosion-proof valve applied in the cylinder prevents injuries in case of hydraulic pump failure.
● Brand-new configuration: adopted 1.5kw hydraulic pump (manual descending with controllable speed)
● With large storage battery.
● adopted plate chains with high strength. Ensure safety and stability.

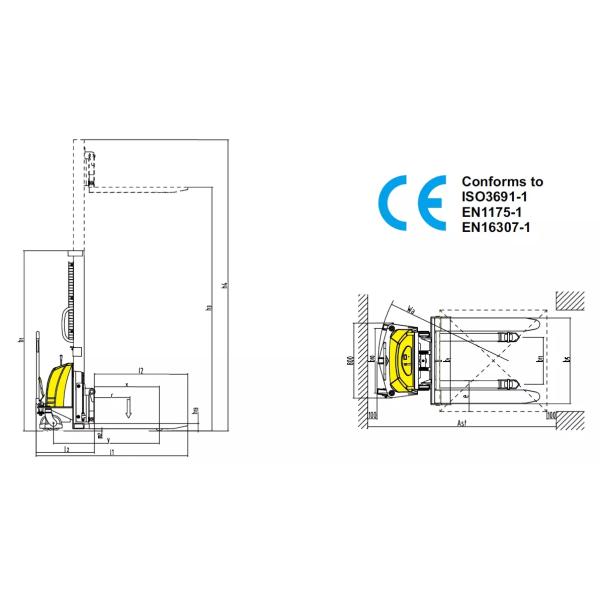

Semi Electric Pallet Stacker size information

Model
CDD15B-E
Capacity
(kg)
1500
Load centre distance
c(mm)
400
Load distance, centre of drive axle to fork
x(mm)
650
Height, mast lowered
h1(mm)
2100/1850/2100/2250/2350
Max. lift height
h3(mm)
1600/2500/3000/3300/3500
Height, mast extended
h4(mm)
2100/3060/3560/3860/4060
Height, lowered
h13(mm)
90
Overall length
l1(mm)
1745
Length to face of forks
l2(mm)
1070
Overall width
b1(mm)
960
Fork dimensions
s/e/l(mm)
60x142x1070
Width overall forks
b5(mm)
300-930
Aisle width for pallets 1000x1200 crossways
Ast(mm)
2288
Aisle width for pallets 800x1200 lengthways
Ast(mm)
2267
Turning radius
Wa(mm)
1425
Lifting speed, laden/unladen
m/s
0.05/0.08
Service brake
Mechanical brake
Battery Voltage, normal capacity K5
V/Ah
12/120
Truck weight
kg
335/395/415/425/435
Walk Behind 1.5 Ton 1600mm Economical Semi Electric Pallet Stacker

Walk Behind 1.5 Ton 1600mm Economical Semi Electric Pallet StackerWalk Behind 1.5 Ton 1600mm Economical Semi Electric Pallet StackerWalk Behind 1.5 Ton 1600mm Economical Semi Electric Pallet Stacker
