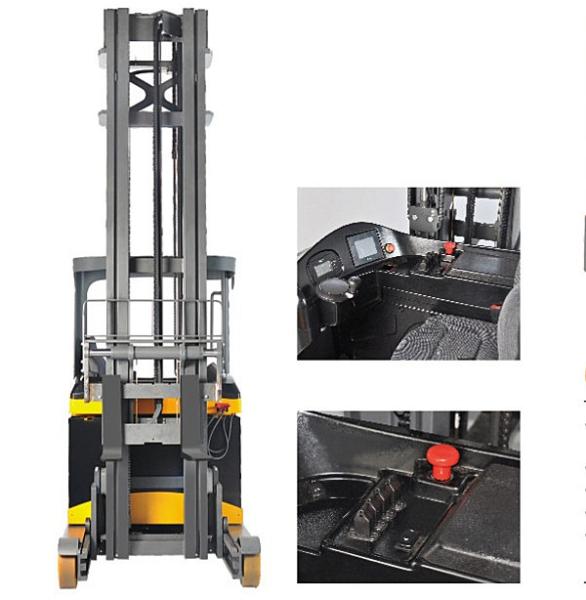

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck
Specifications
Brand Name :
HERRMAN
Model Number :
CQD16
Certification :
ISO,CQC,IQNET,CNAS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability :
200 Unit/Units per Month
Delivery Time :
21-30 work days
Packaging Details :
1pc / pallet or 1pc / wooden box
Rated Loading Capacity :
1600kg
Fork Length :
1070mm
Warranty :
2 years for machinery warranty|1 Year for Core(Core Components include Motor,Pump,Engine) Components
Max. Lifting Height :
7400mm 8000mm 8600mm 9500mm
Fork Width :
100mm
Steering type :
Electrikc Power Steering EPS
Core Components :
Motor, Pump, Engine
Color :
Customer Demanded
Type :
Electric Reach Forklift
Description

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

PRODUCT DESCRIPTION

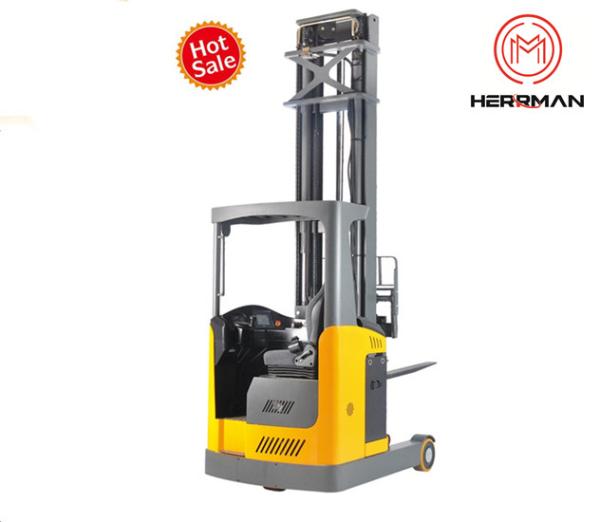

Herrman Forklifts 1600kgs 1.6ton Max Lift Height 9.5m with AC motor Electric Reach Truck Drive Wheel

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

Advantages:

● With powerful AC drive motor, increase the production efficiency.
● Offers three different driving speed options ( Low/medium/high).
● Standard With ELECTRIC POWER STEERING system (EPS ) , steering is very light.
● Hydraulic system with proportional lifting, precisely control different speed .
● Steering wheel can be turn at 360degrees and or 180 degrees, two type steering functions can be freely switched as demand.
● Two lifting cylinder on two sides of mast and provide vide view in the front.
● Have multifunction instrument: show steering wheel direction. BDI battery status, faulty code, different driven speed.
Option:
● Keypad ignition with PIN CODE, easy to access the management system of truck.
● High solution camera, easy to operate for high fork position.
● Height position offers easier pallet handling at high height position.
● Side way moving battery.
● Provide different option of overhead guard width, have smaller overhead guard can operate in driven- in racking warehouse.
SIZE INFORMATION

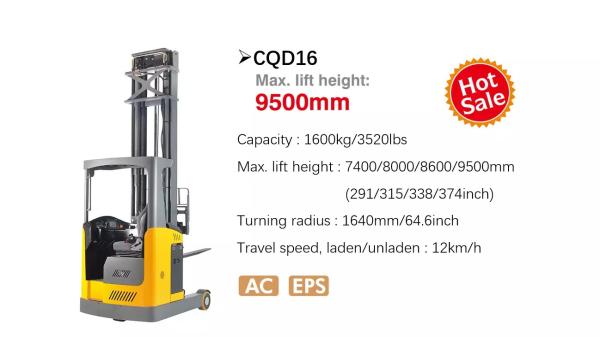

Model CQD16
Capacity / rated load (kg/lbs) 1600/3528
Max. lift height h3(mm/inch) 7400/8000/8600/9500(291/315/339/374)
Load centre distance c(mm/inch) 600/23.6
Height, mast lowered h1(mm/inch) 3890/153.1
Free lift h2(mm/inch) 3200/125.9
Height, mast extended h4(mm/inch) 10500/413.4
Height of overhead guard (cabin) h6(mm/inch) 2200/86.6
Seat height / stand height h7(mm/inch) 1050/41.3
Height of crura h8(mm/inch) 310/12.2
Overall length l1(mm/inch) 2400/94.5
Length to face of forks l2(mm/inch) 1320/52
Overall width b1/b2(mm/inch) 1260/50
Fork dimensions s/e/l(mm/inch) 35*100*1070(1.4*3.9*42.1)
Reach distance l4(mm/inch) 560/22.1
Aisle width for pallets 1000x1200 crossways Ast(mm/inch) 2750/108.3
Aisle width for pallets 800x1200 lengthways Ast(mm/inch) 2810/110.6
Turning radius Wa(mm/inch) 1640/64.6
Travel speed, laden / unladen Km/h 12
Lift speed, laden / unladen m/s 0.35/0.4
Service weight (with battery) (kg/lbs) 3600/7938

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

PACKING&SHOPING

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

PRODUCTION SCENE

12km/H AC Motor 9.5m 1.6T Outdoor Electric Lift Truck

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.
Q6: What can I get from cooperating with Herrman?
A6: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
