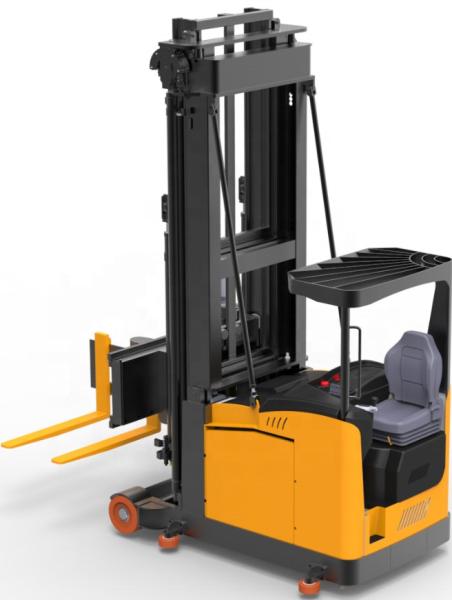

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel
Specifications
Brand Name :
HERRMAN
Model Number :
FB20R FB25R
Certification :
ISO,CE,CQC,IQNET,CNAS
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, O/AWestern Union, MoneyGram
Supply Ability :
200 Unit/Units per Month
Delivery Time :
21-30 work days
Packaging Details :
1pc / pallet or 1pc / wooden box
Condition :
New
Power Souce :
AC Motor
Min. Lifting Height :
88mm
Fork Length :
1250mm
Fork Width :
125mm
Warranty :
Warranty: 2 years
After-sales Service Provided :
Free spare parts
Core Components :
Motor
Load Centre distance :
600mm
Steering type :
Electrikc Power Steering EPS
Description

Advantages:

1. Full AC control system.
2. Finger-tips operation handle.
3. Electric power steering (EPS) system.
4. With electric magnetic multi-valve.
5. Multi-function display, brake status, driving direction, hour meter, driving speed, fault code etc.
6. 48V -3 phase AC type with large capacity battery 1000Ah.
7. With smallest Aisle width is 1600mm.
8. Full suspension comfortable seat with belt is adjustable.
9. Germany ZF brand gear box.

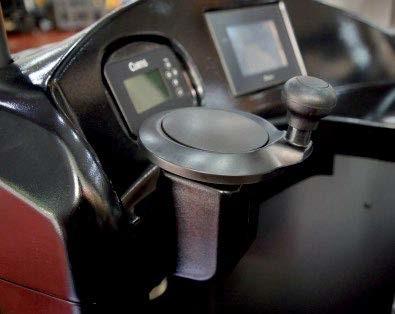

10. Adjustable steering wheel.
11. Sideway battery system.

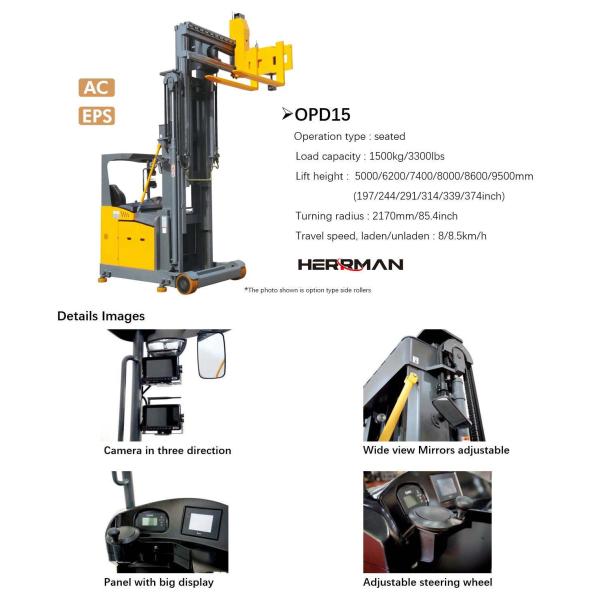

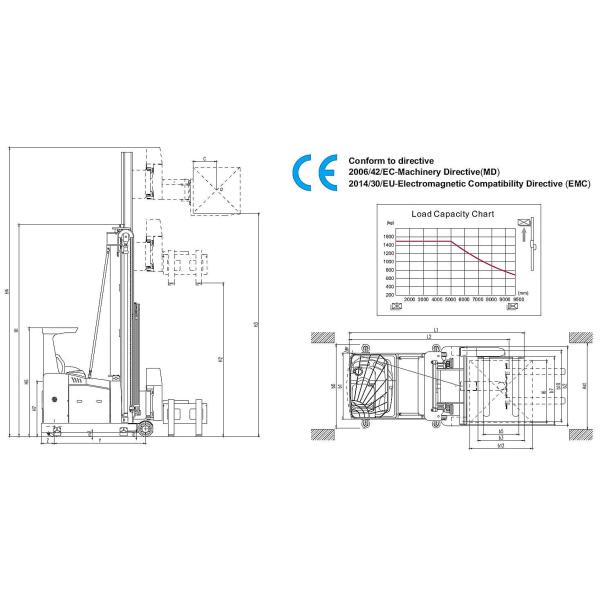

SIZE INFORMATION

Model
OPD15
Operation type
SEATED

Capacity / rated load
kg
1500
Track width,front
b10(mm)
1356
Lift height
h3(mm)
5000/6200/7400/8000/8600/9500
Lowered mast height
h1(mm)
2800/3200/3600/3800/4000/4300
Free lift
h2(mm)
1700/2100/2500/2700/2900/3200
Extened mast height
h4(mm)
6300/7500/8700/9300/9900/10800
Height of overhead guard (cabin)
h6(mm)
2200
Seat height / stand height
h7(mm)
1120
Overall length
l1(mm)
3340
Length to face of forks
l2(mm)
3055
Overall width
b1/b2(mm)
1260/1520
Fork dimensions
s/e/l(mm)
45/125/1250
Fork carriage width
b3(mm)
880
Width over forks
b5(mm)
845
Width across guide roller
b6(mm)
1600
Reach,lateral
b7(mm)
1300
Aisle width for pallets 1200*800
Ast(mm)
1700
Turning radius
Wa(mm)
2170
Pallet width
b12(mm)
1200
Pallet length
l6(mm)
800/1200
Travel speed,laden/unladen
Km/h
8/8.5
Lift speed,laden/unladen
mm/s
220/320
Lowering speed,laden/unladen
mm/s
400/350
Reach speed,laden/unladen
mm/s
150/150
Service brake
regenerative/hydraulic
Parking brake
electric spring-loaded
Type of drive control
AC power control

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

PRODUCT DESCRIPTION

1500kg 3300lbs 1.5Ton Capacity 48V Forklift with AC motor Lateral Electric Reach Truck

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

1500kg 3300lbs 1.5Ton Electric Lift Stacker Reach Truck Adjustable Steering Wheel

FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?

A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?

A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?

A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?

A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?

A5: T/T,L/C or O/A if you want any other way, please contact us.

Q6: What can I get from cooperating with Herrman?

A6: 1. Unique products, with customized service.

2. Timely production and delivery, time is money.

3. Market protection service, long term business strategy.
