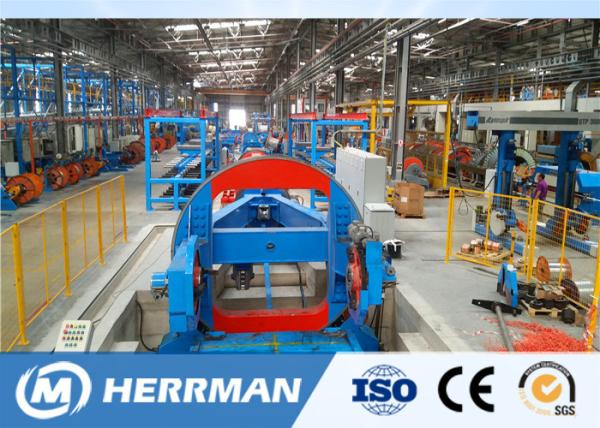

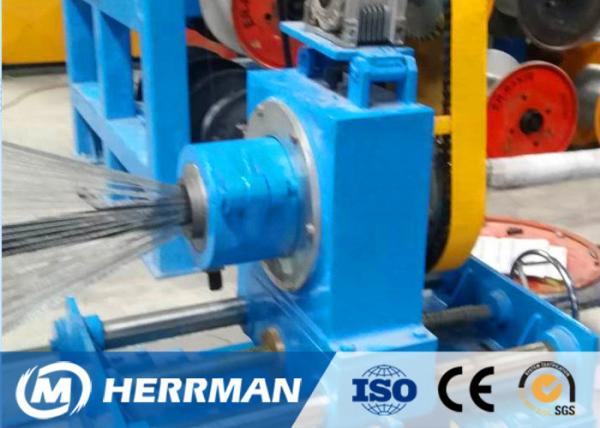

JPD-3000 Drum Twister Line

1. JPD-300 Drum twisting wire laying-up used for laying-up of large section ,long length power cables. The wire is for laying-up of pre - twist or non-twist cable cores, and also can used for steel wire armoring.

2. The machine is composed of ø2250 rotating pay off stand (5 sets),Ф3000 center rotating pay off stand(1 set),Fill rope pay off stand(2 sets),guiding holder ,three row wire die holder ,phase correction ,rotating die holder,Longitudinal taping device, yarn bundle device, non-metal taping device, metal taping device, steel wire armored device, 6T rotating caterpillar device, ф 3000 rotary take up and traverse stand , electrical transmission and control system ,pneumatic hydraulic system.

2.1 Max outer diameter of finished cables

Ф120mm

2.2 Max rotating speed of take up,pay off stand 40r/min

2.3 Max linear speed 50m/min(stepless)

2.4 Laying up pitch50～2500mm

2.5 Max caterpillar power 6T

2.6 Max rotating speed of non-metallic taping device

800rpm

2.7 Max rotating speed of metallic taping device 500rpm

2.8 Filling rope specification(ODX IDX WIDTH X QTY)

Ф400XФ22X360X10

Ф800XФ52X320X4

2.9 Main motor N=90KW(AC)n=1500rpm(AC frequency conversion)

2.10 Caterpillar motor N=45KW(AC)n=1500rpm(AC frequency conversion)

2.11 Non metal taping motor N=15KW(AC)n=1500rp(AC frequency conversion)

2.12 Metal taping motor N=18.5KW(AC)n=1500rpm

(AC frequency conversion)

2.13 Yarn bundle motor N=5.5KW(AC)n=1500rpm(AC frequency conversion)

2.14 Rotation pay off stand motor(5 sets) N=22KW(AC)n=1500rpm(AC frequency conversion)

2.15 Center pay off stand motor N=45KW(AC)n=1500rpm(AC frequency conversion)

2.16 Traverse motor N=2.2KW n=1500rpm

2.17 Take up motor (2 sets) N=7.5KW(AC)n=1480rpm(AC frequency conversion)

2.18 Pay off reel size PN1800,PN2200

2.19 Center pay off reel size PN1800,PN3000

2.20 Take up reel size PN3000

2.21 Center height 1000mm
