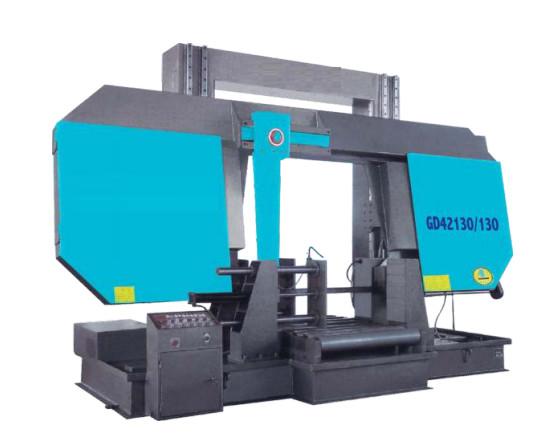

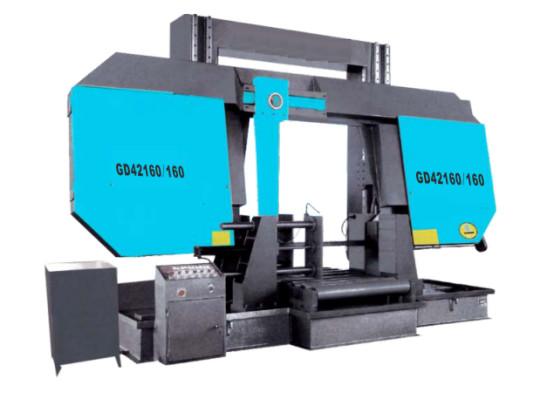

Portal Semi Automatic Metal Band Sawing Machine Worm Reducer
Portal Semi Automatic Metal Band Sawing Machine Worm Reducer
Portal Semi Automatic Metal Band Sawing Machine Worm Reducer
Portal Semi Automatic Metal Band Sawing Machine Worm Reducer
Specifications
Brand Name :
HERRMAN
Model Number :
GD
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
CHINA
MOQ :
1SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1/SET /30DAYS
Delivery Time :
30 DAYS
Packaging Details :
EXPORT PACKING
Name :
Portal semi-automatic metal band sawing machine
Cutting material :
metal
Advantages :
Worm reducer ,optional gear reducer
pack :
export packing
SIZE :
6800x2300x3900，4800x2100x3400
TYPE :
GD42160/160, GD42130/130
Description

Portal semi-automatic metal band sawing machine

1. The machine uses hydraulic stepless speedcontrol feed rate, Taiwan on the silver linear guide, guided sawing high precision,Host with gantry structure, good rigidity, saw blade mining With hydraulic tension, lift into a double cylinder, lift into To a more stable,saw blade with automatic chip removal device, mention: High clean efficiency, the feed can be usedroller or platform Feed, double vise clampworkpiece stability is good

GD42160/160 GD42130/130
Cutoff the range φ 1600 1600x1600 φ 1300 1300x1300
Cutting speed Step-less Step-less
Saw specifications 15400x80x1.6 11800x67x1.6
Saw blade speed 10-50 10-50
Motor power 18.5 15.08
Clamp method Hydraulic Hydraulic
Dimensions 6800x2300x3900 4800x2100x3400
