Specifications
Brand Name :
Herrman
Model Number :
1200/1+1000/4
Certification :
CE, UL, GS, SGS, TUV, ISO
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T or By Negotiation
Supply Ability :
10 SETS PER MONTH
Delivery Time :
120 DAY
Packaging Details :
EXPORT PACKING
Name :
Copper Alloy Trolley Wire Drawing Machine
ID :
20~22mm
O D :
10.8mm - 14.4mm
Wheel Material :
copper, copper silver, Cu-Sn copper magnesium, Al or Al alloy flat wire
Elongation :
20% - 47%
Wire Speed :
60m/min
Description

Wire Metal Drawing Machine , Contact Wire Drawing Plant For Cu-Sn Copper Magnesium

Contact Wire Trolley Wire Drawing Machine For Copper Silver, Cu-Sn Copper Magnesium

Usage

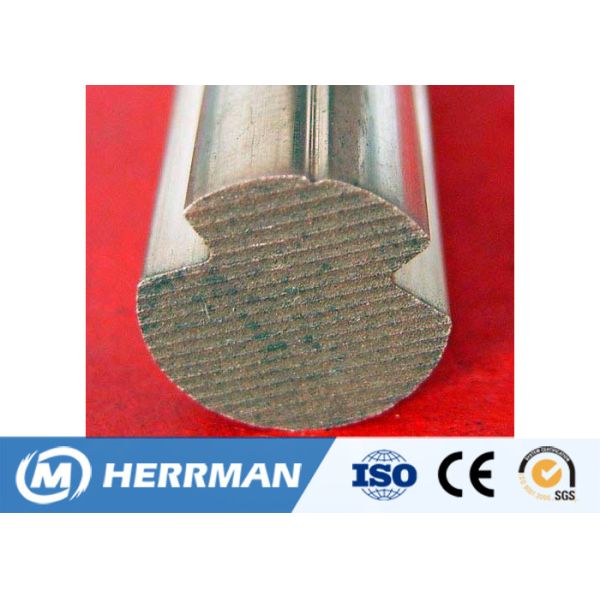

Copper alloy trolley wire drawing machine is mainly used to draw and produce copper alloy trolley wire used in electrified railways. Draw dia. 20-22 mm rod to dia. 10.8~14.4 mm contact trolley wire.

Main specification

Each drawing capstan is driven by separate motor, torque controlled, so the wires hardly slip on the capstan.

The drawing capstans are all cooled by circulating water to guarantee cooling of wires.

The machine use wire guiding ring to push the wires to prevent wires from deflecting when take-up.

The application of touch screen: displaying and setting parameters are convenient.

Components

coil type pay-off, axial loading pay-off frame, drawing main machine, mechanical electronic meter counter, gantry ground rack type take-up machine, electric control system, drawing cooling system, wire pointing machine

Main Data

Type 1200/1+1000/4 1000/4 Drawing Material
Inlet Wire Dia.(mm) 20~22 20 copper
Outlet Wire Dia. (mm) 10.8~14.4mm 10.8~14.4mm copper silver
Section Elongation 20~47% 20~47% Cu-Sn copper magnesium
Max. drawing Speed(m/min) 60 60 Al or Al alloy flat wire
Motor power 1 pc of 75kw, 4pcs of 55kw, DC 1 pc of 75kw, 3pcs of 55kw, DC
Ratio of reducer 80~200 80~140
Pay off reel 2000 2000
Take up reel 2000 2000

Machine Drawing

Contact Wire Drawing Plant For Cu Sn Copper Magnesium

Machine Photo

Contact Wire Drawing Plant For Cu Sn Copper Magnesium

Contact Wire Drawing Plant For Cu Sn Copper Magnesium
