Rigid Type Wire & Cable Stranding Machine Copper Aluminum
Rigid Type Wire & Cable Stranding Machine Copper Aluminum
Rigid Type Wire & Cable Stranding Machine Copper Aluminum
Rigid Type Wire & Cable Stranding Machine Copper Aluminum
Rigid Type Wire & Cable Stranding Machine Copper Aluminum
Rigid Type Wire & Cable Stranding Machine Copper Aluminum
Specifications
Brand Name :
Herrman
Model Number :
400 , 500 , 630 , 710 , 800
Certification :
ISO , CE , CQC , CE
Place of Origin :
China
MOQ :
1 SET
Price :
By Negotiation
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1 set per 1 month
Delivery Time :
2 months after receipt of down payment
Packaging Details :
To be packed in containers directly without packing and be fixed by steel rope. Suitable for long distance sea-transportation and well protected against change of climate, moisture and shock.
Driven :
Ground shaft or separate motor
Material :
Copper, Aluminum
Reel size :
400 , 500 , 630 , 710 , 800(mm)
Motor :
Siemens bramd
Bearing :
NSK bramd
Usage :
Stranding,armoring
Description

Rigid Type Wire & Cable Stranding Machine

1. Characteristics

Bobbin size : 400mm , 500mm , 630mm , 710mm , 800mm

Bobbin quantity of single cage : From 6 bobbin to 48 bobbin

Clamping : Pneumatic type clamping , Motor clamping , Manual Clamping

Tension control : Hysteresis tension control , Mechanical tension control

Mechanical tension control with feedback , Pneumatic tension control

Bobbin loading : Side bottom hydraulic loading , Side bottom electrical loading , Side loading

2. Technical specification

Bobbin size Max. rotation speed (rpm) Wire dia.(mm)
500 6B 12B 18B 24B 30B 36B Aluminum Copper
273 225 198 173 151 120 1.8-5.0
242 199 175 153 133 96 1.2-5.0
630 Normal 218 189 166 146 130 103 1.8-5.0
190 167 147 129 115 82 1.2-5.0
High speed 310 290 250 215 185 135 1.8-5.0
210 195 170 145 128 108 1.2-5.0

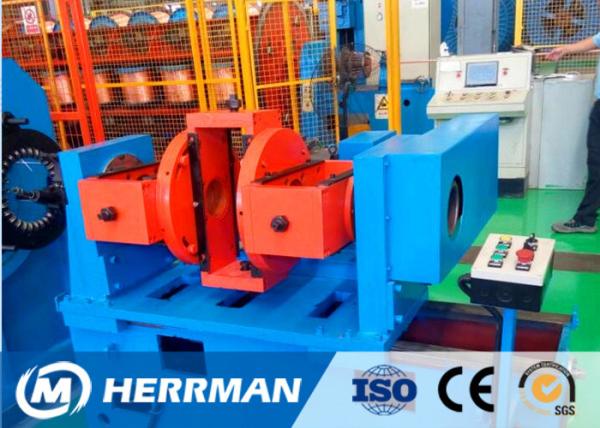

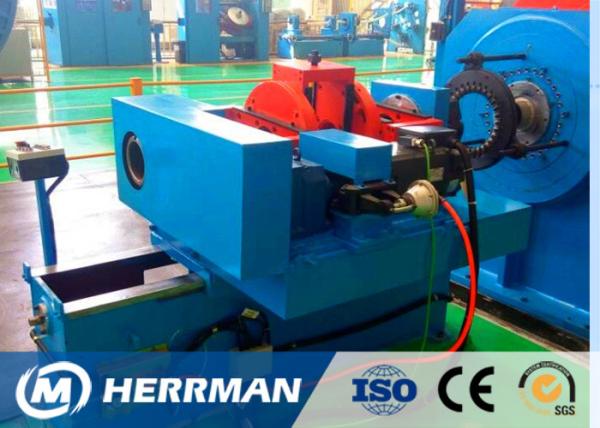

3. Photo

Rigid Type Wire & Cable Stranding Machine Copper Aluminum
