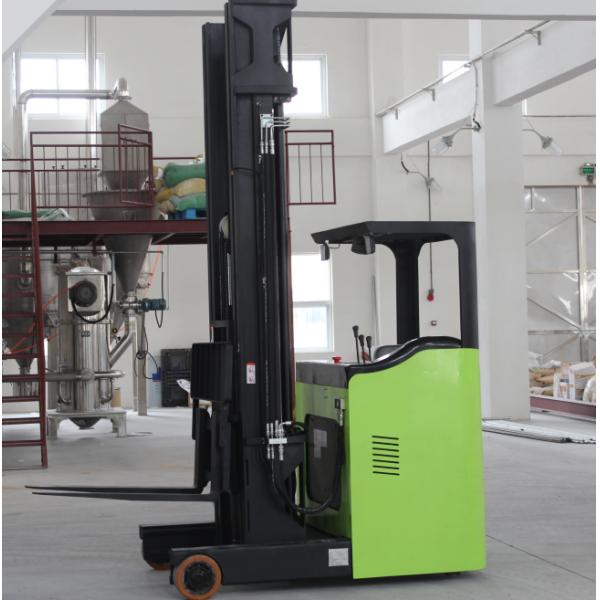

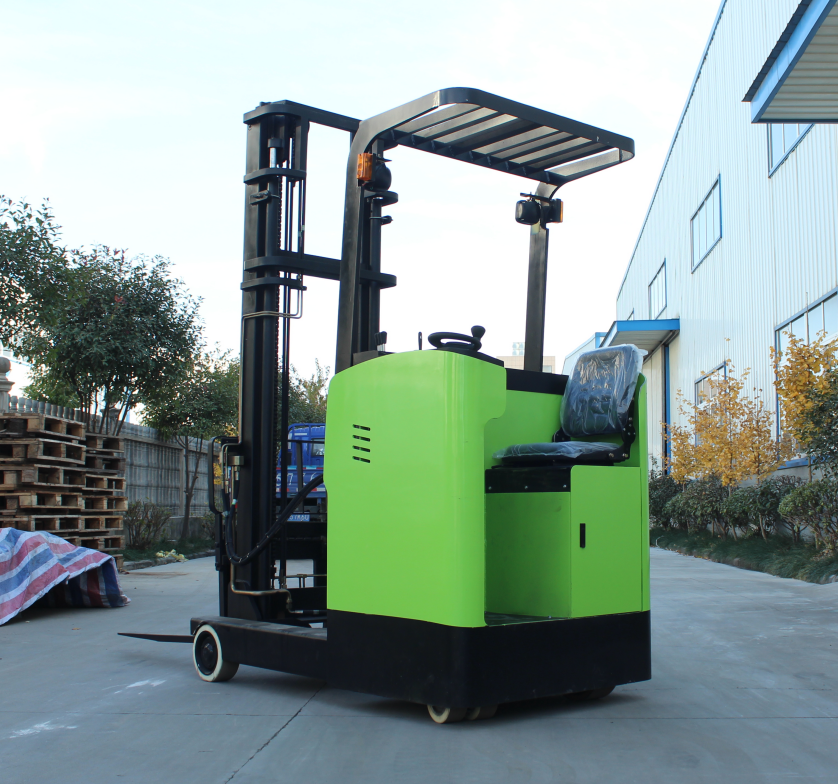

Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type
Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type
Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type
Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type
Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type
Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type
Specifications
Brand Name :
HERRMAN
Model Number :
HMCQD15-45S
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Delivery Time :
20 DAYS
Packaging Details :
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advert
Power Souce :
DC MOTOR
Warranty of core components :
1 Year
Machinery Test Report :
Provided
Core Components :
Pressure vessel, Motor, Bearing, Pump, Gearbox
Description

Hot Sales Narrow Channel Used 48V 00kg Load Capacity EPS Electric Reach Forklift

Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type

1. Specification

Electric Reach Forklift (Stand Type)48V HM CQD
Characteristics 1.1 Model No. HM CQD15-45S
1.2 Power type Electric
1.3 Operation type Stand Type
1.4 Load capacity Q(kg) 1500
1.5 Load center C(mm) 500
1.6 Wheelbase Y(mm) 1383
1.7 Reach distance L(mm) 530
Total weight 2.1 Total weight with battery kg 2700
Wheel, Chassis 3.1 Wheel type PU
3.2 Front wheel

∅×w(mm)

 ∅267*114
3.3 Driving wheel ∅×w(mm) ∅382*142
3.4 Balance wheel ∅×w(mm) ∅180*76
3.5 Wheel tread, front wheel(Above 6.5m)

b10(mm)

 1081
Dimension 4.1 Mast lowered height h1(mm) 2100
4.2 Free lift height h2(mm) 1500
4.3 Lift height h3(mm) 4500
4.4 Max. height when lifting h4(mm) 5480
4.5 Height of overhead guards h14(mm) 2280
4.6 Fork height when mast closed h13(mm) 35
4.7 Mast tilt angle forward/backward . 3/5
4.8 Overall length(Without fork)(Above 6.5m) l1(mm) 1752/2400
4.9 Overall width(Above 6.5m) b1(mm) 1195
4.10 Fork size s/e/l(mm) 35/100/1070
4.11 Fork spread b5(mm) 210-705
4.12 Min ground clearence m2(mm) 80
4.13 Aisle width for pallet 1000*1200 crossaway(Above 6.5m) Ast(mm) 2730
4.14 Min. turning radius(Above 6.5m) Wa(mm) 1680
Performance 5.1 Max. travel speed(Unload/load) km/h 8/7
5.2 Lifting speed (Unload/load) m/s 0.330/0.245
5.3 Lowering speed(Unload/load) m/s 0.260/0.325
5.4

Max. Grade ability(Unload/load)

 % ≦10
5.5 Brake type Electromagnetic

Motor,

charger

 6.1 Driving motor kw 4.5
6.2 Lifting motor kw 6.3DC
6.3 Battery type Lead Acid
6.4 Battery capacity V/Ah 48V/300Ah
6.5 Charger V/Ah 48V/40A
Other 7.1 Drive controlling type AC
7.2 EN12053 Noise level in driver’s ear dB(A) 75


Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type
Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type

2.Configuration

1,US CURTIS Control system,Stepless speed regulation;

2,Brand contactor;

3,Brand hydraulic lifting pump station;

4,48V/400AHLead acid battery;

5,48V/50Aexternal intelligent charger;

6,Brand sealing elements;

7,Vertical AC drive motor;

8,Vertical transmission gearbox;

9,High wear resistant polyurethane wheel(Bearing wheel, driving wheel and balancing wheel);

10,Pedal foot switch, seat, steering wheel;

11,Fork lift with buffer;

12,Forged fork, suitable for single and double pallets;

13,Multi function electricity meter;

14,Electromagnetic brake;

15,Electric Power Steering.

3. PACKING&SHOPING

Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type

4.PRODUCTION SCENE

Narrow Channel 48V 1500kg Electric Reach Forklift Stand Type

5.FAQ

Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.

Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.

Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.

Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.

Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;

Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.

Q7:how can we guarantee quality?
A7:1).Always a pre-production sample before mass production.
2).Always final Inspection before shipment.

Q8: what services can we provide?
A8:1).Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
2).Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
