Large Cross Section Laying Up Machine for Submarine Cable Making Machines
Large Cross Section Laying Up Machine for Submarine Cable Making Machines
Specifications
Brand Name :
Herrman
Model Number :
3500/4500/5000
Certification :
CQC, CE, ISO, SGS
Place of Origin :
China
MOQ :
1 sets
Payment Terms :
T/T, L/C, L/C, D/A, D/P
Supply Ability :
10 sets per year
Delivery Time :
6 months
Price :
by Negotiation
Packaging Details :
Plastic film
Cable size :
140~240mm
Max. linear speed :
20m/min
Turntable size :
10~18m
No. of steel wires :
96~120pcs
Motor :
SIEMENS
Bearing :
NSK
Description

Large Cross Section Laying Up Machine for Submarine Cable Making Machines

1. Introduction

This line is use for stranding large cross section and great length submarine cables, optical fiber cables and power cables. It also can be used for laying up the general cables and crosslink cables, as well as making steel wire armoring or coating bitumen on the cable surface..

2. Main Technical Data

Type 5000/3+2800/3 4500/3+2500/3 3500/3+2000/3
Max Single Wire Dia.(mm) 90 90 55
Max Lay Up Dia(mm) 240 220 140
Max speed of cage(rpm) 3.5 4 5
Max line speed(m/min) 20 20 20
Main motor 160kw(DC) 160kw(DC) 132kw(DC)
Motor for cage 90kw(DC) 75kw(DC) 55kw(DC)
Number of steel wire armoring 120 120 96
Reel size of steel wire armoring 630 630 630
Dia of capstan(mm) 5000 5000 4000
Turn plate dia of cage(mm) 16000 12000 10000
Turn plate dia of take up(mm) 18000 16000 12000

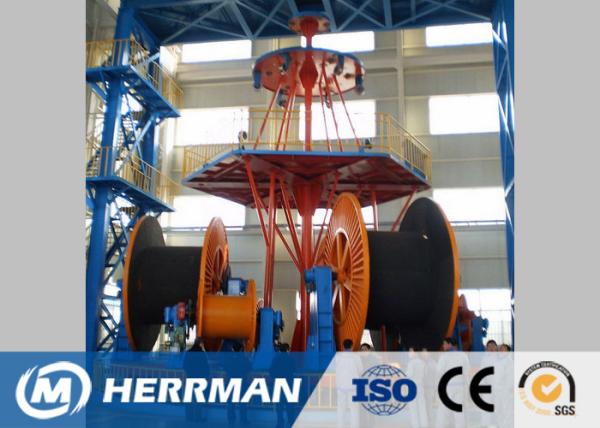

3. Photos
Large Cross Section Laying Up Machine for Submarine Cable Making Machines
