100r/Min Drum Twister Cable Machine 50m/Min Line Speed
100r/Min Drum Twister Cable Machine 50m/Min Line Speed
Specifications
Brand Name :
Herrman
Model Number :
1000~4500mm
Certification :
SGS, CQC, CE, ISO
Place of Origin :
Hefei, Anhui, China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
T/T, L/C, D/A, OA, D/P
Supply Ability :
20 Sets Per Year
Delivery Time :
120 days
Packaging Details :
Plastic Film Packing
Usage :
Cabling
Final Product :
Control Cable
Rotating Speed :
50~100r/min
Bobbin Size :
1000~4500mm
Linear Speed :
40~50m/min
Motor Power :
45~75KW
Description

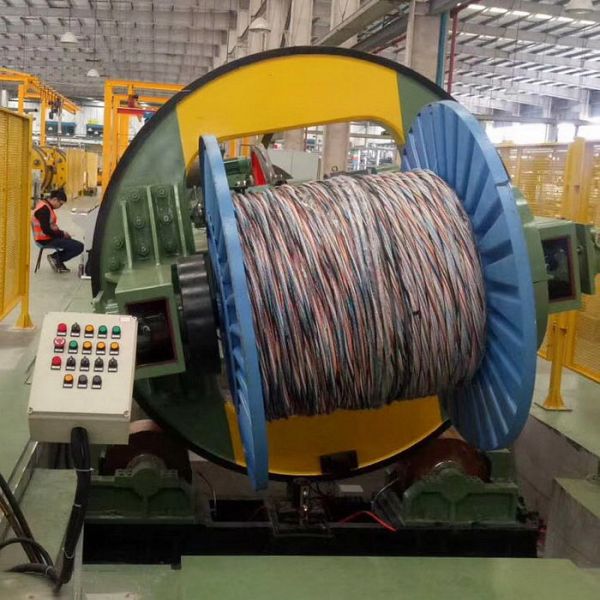

100r/min High Speed Drum Twister Type Cabling Machine for Control Cable

1. Application

The machine is used for cabling control cables.

2. Type

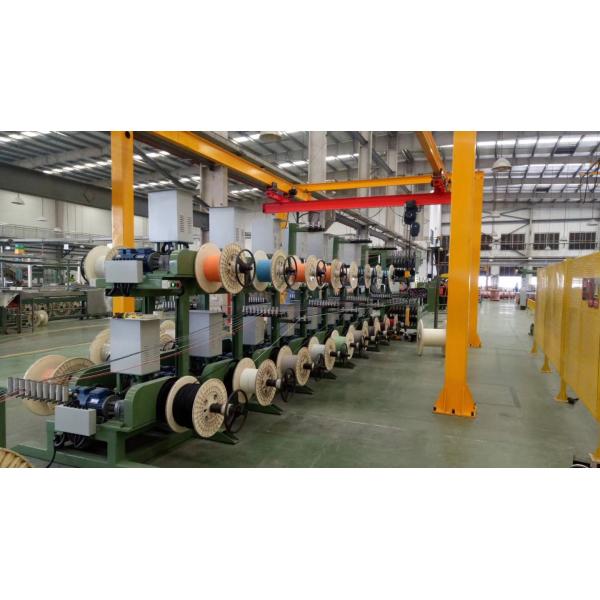

Pay-off stand

Φ1000, Φ1250, Φ1600, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500

Take-up stand

Φ1600, Φ1800, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500, Φ4000, Φ4200

Steel-wire pay-off stand

Φ500, Φ630

3. Main Technical Specification

Model JPD-2500 JPD-3150 JPD-3600
Max. laying-up OD Φ20 –Φ120 Φ25 –Φ130 Φ25 –Φ130
Max. rotating speed of rum twister and pay-off stand 50 30 30
Laying-up pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Max. linear speed 50 40 40
Max. haul-off force Standard 3000 3000 3000
With 96pcs steel wire armoring 5000 6000 6000
Non-metallic taping device Max. speed 500 500 500
Taping pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Tape reel Φ600 xΦ80 Φ600 xΦ80 Φ600 xΦ80
Tape width 15 - 80 15 – 80 15 - 80
Metallic taping device Max. speed 300 300 300
Taping pitch Step-less, adjustable Step-less, adjustable Step-less, adjustable
Tape reel Φ800 xΦ200 Φ800 xΦ200 Φ800 xΦ200
Steel tape width 15 - 60 15 - 60 15 - 60
Central pay-off stand PN2500 PN3150 PN3600
Pay-off stand PN1600 PN2000 PN2500
Take-up drum head size PN2500 PN3150 PN3600
Steel wire armoring specification PND500 PND630 PND630
Main motor power 45 55 75
Central payoff stand motor power 22 45 55

100r/Min Drum Twister Cable Machine 50m/Min Line Speed

100r/Min Drum Twister Cable Machine 50m/Min Line Speed

100r/Min Drum Twister Cable Machine 50m/Min Line Speed
