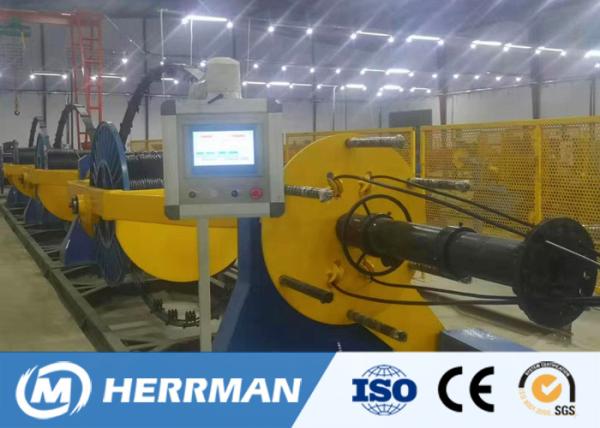

Insulated Core 1600 Bobbin Power Cable and ABC Cable Manufacturing Machine
Insulated Core 1600 Bobbin Power Cable and ABC Cable Manufacturing Machine
Specifications
Brand Name :
Herrman
Model Number :
1000, 1250, 1600mm
Certification :
CE, ISO, SGS, CQC
Place of Origin :
China
MOQ :
1 line
Price :
By Negotiation
Payment Terms :
T/T, L/C, D/A, OA, D/P
Supply Ability :
25 Sets Per Year
Delivery Time :
3 months
Packaging Details :
Plastic Film Packing
Max. Rotating Speed :
160r/min
Max. Single Wire Diameter :
25mm
Max. finished diameter :
75mm
Raw Material :
Insulated Core
Motor :
SIEMENS
Bearing :
NSK
Description

1000~1600 Bobbin Size Power Cable Machiney Skip Type Cabling Machine

1. Usage

1000~1600 Bobbin Size Power Cable Machiney Skip Type Cabling Machine is used for cabling each kind of insulated core.

2. Structure

The machine works speedily with the stranding bow of high rotation speed. Both ends of the stranding bow are connected to the rotary arm. For this reason, the natural formation can be ensured when the bow rotates in a high speed.

3. Specification

Model Bobbin Size d1 Bobbin Quantity Max. Core Dia. Cabling Dia. Take-up Center Height
1000/1+3 1000 1+3 16 40-48 1250/2500 1000
1000/1+4 1+4
1000/1+5 1+5
1000/1+6 1+6
1250/1+3 1250 1+3 20 48-60 1250/2500
1250/1+4 1+4
1250/1+5 1+5
1250/1+6 1+6
1600/1+3 1600 1+3 25 60-75 1600/3150
1600/1+4 1+4
1600/1+5 1+5
1600/1+6 1+6
