2.0mm diameter Copper Steel Wire RTP Armouring Machine
2.0mm diameter Copper Steel Wire RTP Armouring Machine
Specifications
Brand Name :
Herrman
Model Number :
560/96B,400/102+102, 400/216+216
Certification :
CE SGS ISO CQC
Place of Origin :
China
MOQ :
1 Set
Price :
By Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
12 Sets Per Year
Delivery Time :
150 days

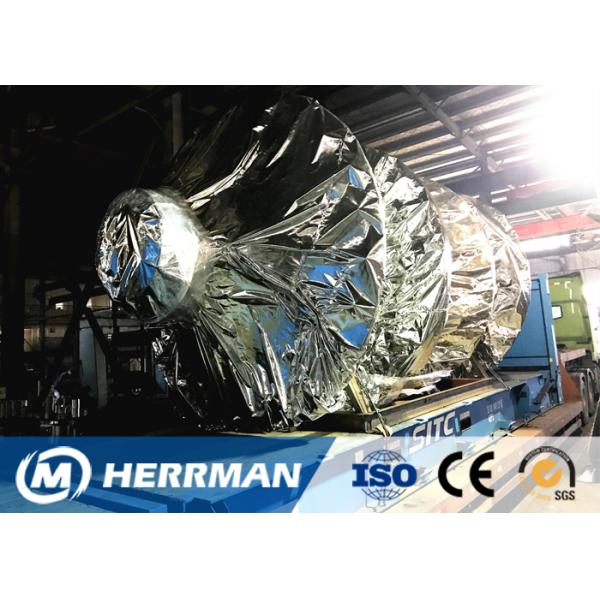

Packaging Details :
Plastic Films Winding
Name :
Wire and Cable and RTP Pipe Plane Type Armoring Machine Copper wire Steel wire
Usage :
Steel Wire Armoring
Pipe Diameter :
Max. 350mm
Steel Wire Diameter :
0.6-2.0mm
Linear Speed :
8m/min
Rotating Speed :
10r/min
Cu wire dia. :
1.25-3.5mm
Description

Wire and Cable and RTP Pipe Plane Type Armoring Machine Copper wire Steel wire

1. Application

Wire and Cable and RTP Pipe Plane Type Armoring Machine Copper wire Steel wire is mainly used for armoring high-pressure hose. Final hose is used for conveying of offshore oil, natural gas and fresh water in the ocean. And conveying oil and chemical material on the land.

2. Main Features

- Steel wire pay-off tension is controlled by mechanical friction, and can be adjusted.

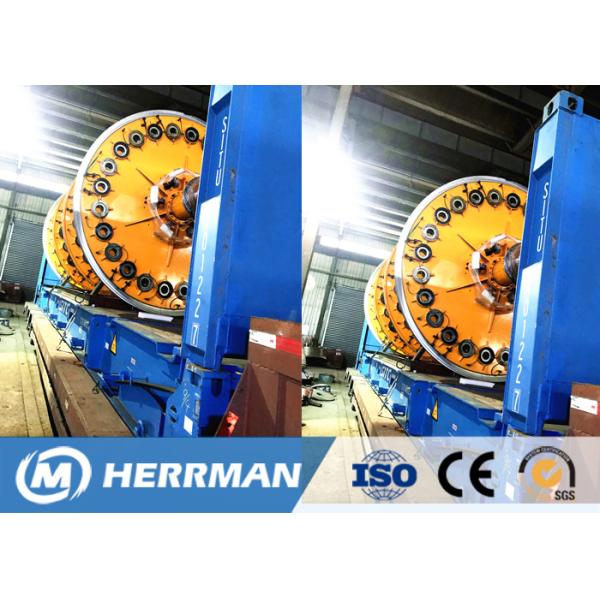

- Stranding cage adopts plane type structure. It has front and back support, with good rigidity.

- Each part is driven by independent motor. It adopts SIEMENS PLC to unified control and managed the working condition of each motor. The rotating speed and stranding pitch can be changed by stepless and shown on the touch screen.

3. Main Technical Specification

Specification 400/216+216 400/102+102
Steel wire diameter 0.6-2.0mm 0.6-2.0mm
Max. armoring O.D. 325mm 250mm
Max. rotating speed 10r/mim 10r/mim
Haul-off device 6-claws hual-off device 3-claws hual-off device

2.0mm diameter Copper Steel Wire RTP Armouring Machine

2.0mm diameter Copper Steel Wire RTP Armouring Machine

2.0mm diameter Copper Steel Wire RTP Armouring Machine
