Double Wires Copper Rod Breakdown Machine Annealing Servo Motor Driving
Double Wires Copper Rod Breakdown Machine Annealing Servo Motor Driving
Double Wires Copper Rod Breakdown Machine Annealing Servo Motor Driving
Double Wires Copper Rod Breakdown Machine Annealing Servo Motor Driving
Specifications
Brand Name :
Herrman
Model Number :
HM450-13(2)/11(2)/9(2)
Certification :
SGS, CE, ISO,
Place of Origin :
Anhui, China
MOQ :
1 set
Price :
by Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
30 Sets Per Year
Delivery Time :
150 days upon receipt of deposit
Packaging Details :
Plastic film package
Input wire :
2×Φ8.0mm
Output wire :
2×Φ1.3~Φ4.5mm
Max. speed :
25m/s
Motor :
Servo motor
Bearing :
NSK
Driving :
Separate motor
Description

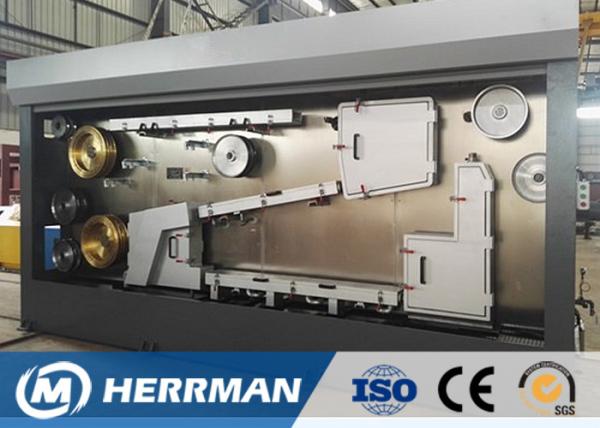

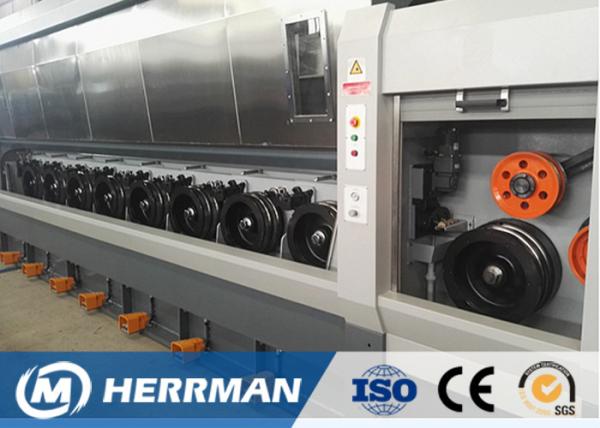

Servo Motor Driving Double Wires Copper Rod Breakdown Machine with Continuous Annealing

1. Introduction

The machine is used for draw 2×Ф8.0mm copper rods to 2×(Ф1.2~Ф3.6mm) annealed copper wires.

2. Main Feature

2.1 Capstans are driven by separate servo motors directly without gears, less power consumption, less noise and easy to maintain. It can keep same performance after several years later. Compared with this new model, the speed of traditional machine will decrease because of gear abrasion.

2.2 It only needs to change the final die to adjust output wire size, the other dies no need to be changed to match gear ratio.

2.3 Traversing is driven by servo motor, it can calculate traversing speed automatically. It can traverse to left/right according to spool width without sensor, which improve traversing reliability.

2.4 The machine can save roughly 10% power compared with gear type separate motor, 20% compared with traditional single motor gear type.

3. Main Technical Specification

Specification HM450-13(2) HM450-11(2) HM450-9(2)
Inlet dia. 2×Φ8mm 2×Φ8mm 2×Φ8mm
Outlet dia. 2×Φ1.3~Φ4.5mm 2×Φ1.7~Φ4.5mm 2×Φ2.1~Φ4.5mm
Max. mechanical speed 25m/s 25m/s 21m/s
Drawing wheel dia. Φ450mm Φ450mm Φ450mm
Drawing motor Servo motor Servo motor Servo motor
Fixed speed wheel motor Servo motor Servo motor Servo motor
