Sliding Type Copper Rod Breakdown Machine LHD450-13

1. General description:

This machine is used to draw Φ1.2-Φ3.5mm copper wires. The drawing blocks are mounted in one row. The constant-speed wheel and the other 12 drawing block are driven by two motors respectively. Such design makes easy operation and change dies quickly.

2. Technical parameter:

3. Brier introduction:
3.1 Payoff stand:
Type: cantilever type
Payoff stand consists of column, cantilever and steering roller.
Height of the column is 5000mm or so. The two aluminum reels can achieve continuous pay off.

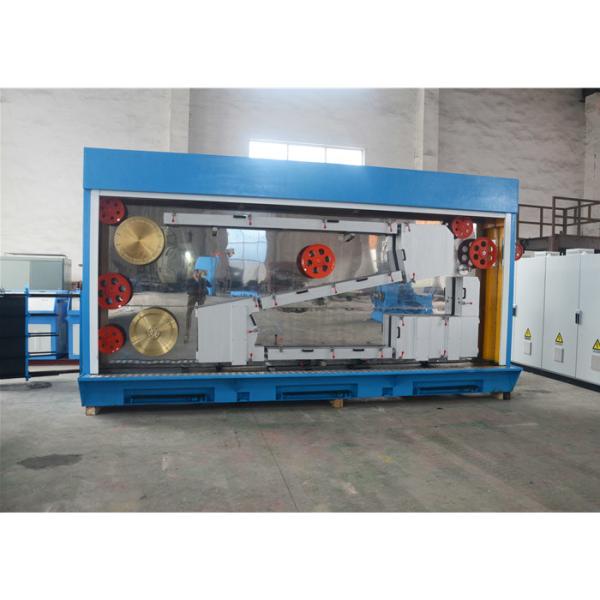

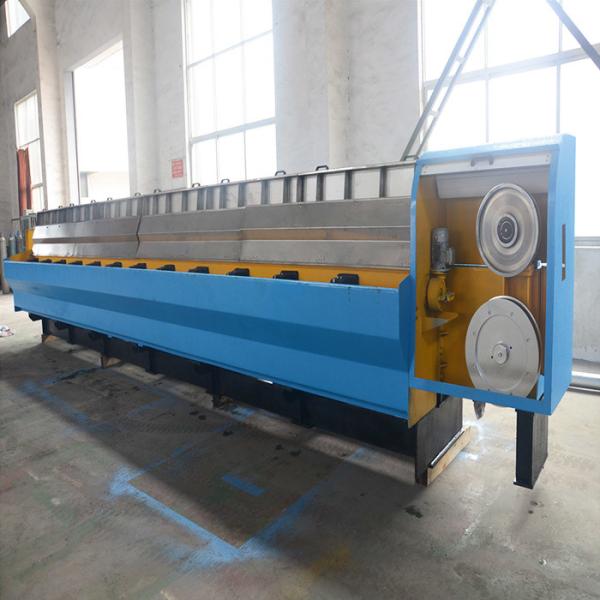

3.2 Main drawing machine:
Type: slip type. 13-die copper wire drawing machine with drawing blocks of the same diameter
The machine consists of trough for cooling and circulation of drawing emulsion, gearbox, lubrication system, constant speed wheel, main motor and the motor for the constant speed wheel.
Four clip-and-run switches for die stringing by clip-and-run operation. Device to prevent the drawing block and drawing die holder extend identical distance from the body of gearbox.
Drawing blocks adopt steel wheels. Its surface is covered by tungsten carbide to prolong its use life.

3.3 Accumulator:
Capacity of the accumulator: 7m
Max. Tension: 138N
Tension is regulated by air cylinder pressure.

3.4 Annealing device:
Type: horizontal DC annealing, speed tracking automatically
Diameter of annealing inlet wire: Φ1.2mm-Φ3.5mm
Max linear speed of annealing: 25m/s

3.5 Φ500-Φ630 Dual-spool take-up:
Spool size: PND500~PND630
Max. take up speed: 25m/s
Take-up motor: 22KW (two, AC)

3.6 Coiling machine (can be used for soft and hard wire)
Applicable wire diameter: Φ1.5mm-Φ3.5mm
The speed: 20m/s
The coil diameter: Φ800mm
Loading: 1400kgs
Motor power: 15KW (AC)
The size of the coil basket: Φ600*Φ110*1300mm.

4. FAQ:
Dear customers, there are several models for the coppr rod breakdown machine. In order to recommend the suitabe models, we'd like to learn some information:
1. Inlet and outlet wire diameter
2. Whether need online annealer
3. Take up method: Spool bobbin or coiler?
4. Dimension drawing of spool bobbin/wire basket

Best regards
