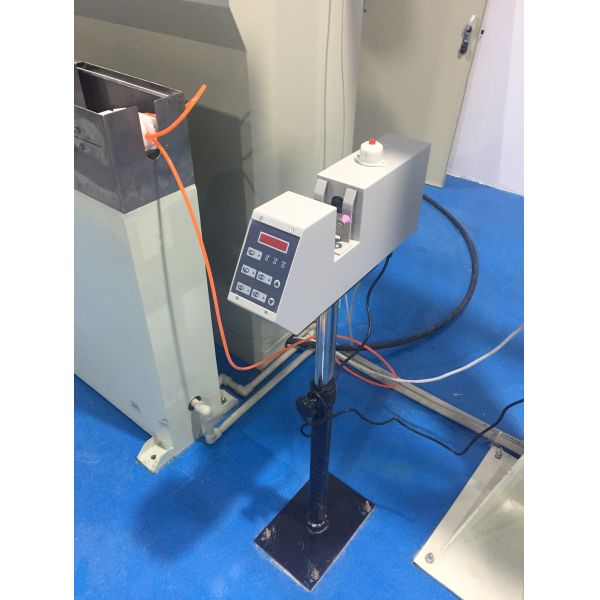

Outer diameter measuring device for cable

Outer Diameter (OD) Measuring Device is a critical tool used in cable manufacturing to ensure the precise measurement of the cable's outer diameter during or after the extrusion process. This device helps maintain quality control, ensuring that the cable meets specified tolerances and standards.

Key Features of an Outer Diameter Measuring Device:

Non-Contact Measurement: Uses laser or optical sensors to measure the cable diameter without physical contact, preventing damage to the cable surface.

High Accuracy: Provides precise measurements, often with an accuracy of up to ±0.001 mm.

Real-Time Monitoring: Continuously measures and displays the cable diameter during production.

Automatic Feedback System: Integrates with the extrusion line to automatically adjust parameters (e.g., extruder speed) if the diameter deviates from the set value.

Wide Measurement Range: Can measure a variety of cable diameters, from very thin wires to thick cables.

User-Friendly Interface: Features a digital display or software interface for easy monitoring and control.

Data Logging: Records measurement data for quality assurance and process optimization.

Types of Outer Diameter Measuring Devices:

Laser Measurement Devices: Use laser beams to measure the diameter with high precision.

Optical Measurement Devices: Use cameras and image processing to determine the diameter.

Ultrasonic Measurement Devices: Use ultrasonic waves for non-contact measurement, suitable for specific materials.

Applications:

Cable Extrusion Lines: Monitors the outer diameter of cables during insulation or sheathing processes.

Wire Drawing: Ensures the diameter of drawn wires meets specifications.

Quality Control: Used in final inspection to verify cable dimensions before packaging.

Benefits of Using an Outer Diameter Measuring Device:

Consistent Quality: Ensures the cable diameter remains within specified tolerances.

Reduced Waste: Detects deviations early, minimizing material waste and rework.

Improved Efficiency: Automates the measurement process, reducing manual inspection time.

Compliance with Standards: Helps meet industry standards and customer requirements.

Integration with Cable Extrusion Line:

The OD measuring device is typically installed after the extruder and cooling tank in a cable production line. It works in conjunction with other equipment, such as:

Pay-Off Machines: Feeds the wire or cable core into the extruder.

Extruders: Applies insulation or sheathing to the cable.

Cooling Tanks: Cools the extruded cable.

Capstans and Take-Up Machines: Pulls and winds the finished cable.
