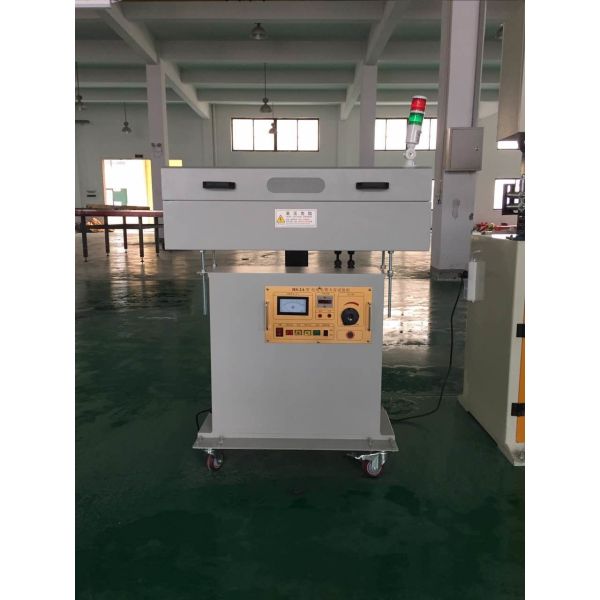

Spark machine/Sparker/Spark tester

Cable Spark Machine, also known as a Spark Tester or High-Voltage Tester, is a critical quality control device used in the cable manufacturing industry. It is designed to detect defects, such as pinholes, cracks, or voids, in the insulation or sheathing of cables. The machine works by applying a high voltage to the cable, and if there is a defect, a spark will occur, indicating the flaw.

Key Features of a Cable Spark Machine:

High-Voltage Application: Applies a high voltage (AC or DC) to the cable to test the integrity of the insulation.

Defect Detection: Detects even the smallest defects, such as pinholes, cracks, or thin spots in the insulation.

Adjustable Voltage: Allows operators to set the test voltage according to the cable's specifications and standards.

Automatic Alarm System: Triggers an alarm or stops the production line when a defect is detected.

Non-Destructive Testing: Tests the cable without damaging it (if the insulation is intact).

Real-Time Monitoring: Continuously monitors the cable during production.

Compliance with Standards: Meets international standards such as IEC, UL, and ASTM.

How It Works:

The cable passes through an electrode (or series of electrodes) in the spark tester.

A high voltage is applied to the electrode, creating an electric field around the cable.

If there is a defect in the insulation, the electric field will cause a spark to jump through the defect.

The spark is detected by the machine, which triggers an alarm or marks the defective section for repair or rejection.

Types of Cable Spark Machines:

Offline Spark Testers: Used for testing finished cables in a separate process.

Online Spark Testers: Integrated into the production line to test cables in real-time during manufacturing.

AC Spark Testers: Use alternating current for testing.

DC Spark Testers: Use direct current for testing, often preferred for thicker insulation.

Portable Spark Testers: Handheld devices for field testing or small-scale operations.

Applications:

Wire and Cable Manufacturing: Tests the insulation of power cables, communication cables, and control cables.

Quality Assurance: Ensures the cable meets industry standards and customer requirements.

Repair and Maintenance: Identifies defects in installed cables or during cable repair processes.

Benefits of Using a Cable Spark Machine:

Improved Product Quality: Ensures the insulation is free from defects.

Reduced Waste: Detects defects early in the production process, minimizing material waste.

Compliance with Standards: Helps meet international quality and safety standards.

Enhanced Safety: Identifies potential failures in cables that could lead to electrical hazards.

Key Parameters to Consider When Choosing a Spark Tester:

Voltage Range: Ensure the machine can test at the required voltage for your cable type.

Cable Diameter Range: Check the maximum and minimum cable diameters the machine can handle.

Testing Speed: Match the testing speed with your production line speed.

Sensitivity: Ensure the machine can detect the smallest defects relevant to your application.

Integration: Determine if the machine can be integrated into your existing production line.
