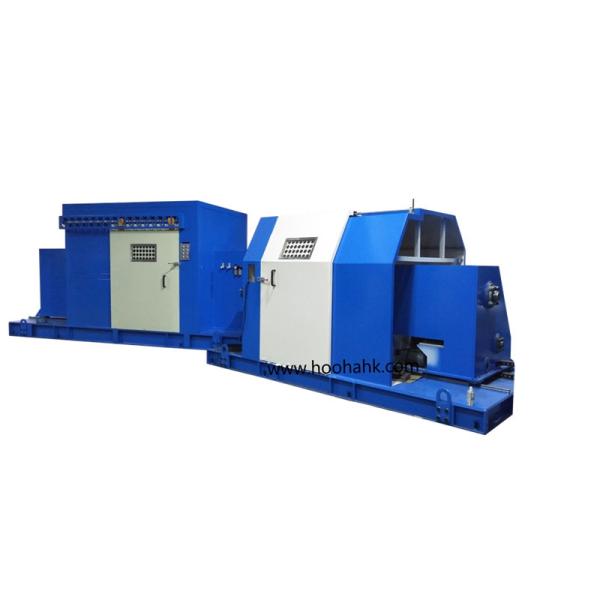

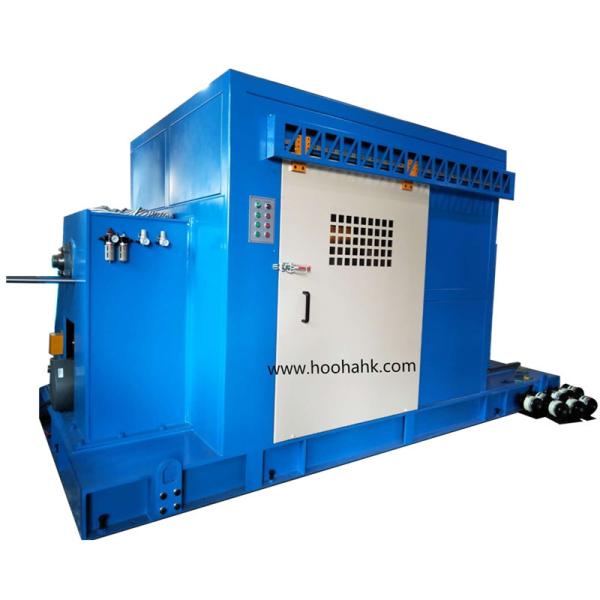

Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding
Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding
Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding
Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding
Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding
Cantliever Single Twisting Machine Cable Twsiting Machine Wire Twister For Power Electric Wire Insulated Wire Stranding
Specifications
Brand Name :
HOOHA
Model Number :
HH-1250
Certification :
ISO, CE, SGS
Place of Origin :
Guangdong，China
MOQ :
1unit
Price :
USD 220000/unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1 unit 60days
Delivery Time :
60days
Packaging Details :
film/wooden package
Usage :
Stranding
Pay off :
1250mm
Main body speed :
400 RMP
Line speed :
150M/min
Conductor Section :
10-50mm²
Rotor speed :
350 rpm
Motor Power :
55/65/75KW
Max Core :
12mm
Description
Specification
item
value
Place of Origin
China
Brand Name
HOOHA
Model Number
HH-630/800/1000/1250
Usage
Twisting
Certificate
ISO/Ce
Motor
Siemens
Bearing
NSK
Inverter
Siemens
Electric Element
Siemens and Omron
Features
Automatic
Transport Package
Plastic Package
HS Code
8479811000
Warranty
12 Months
Product Description
630-1250 Cantliever Type Cable Single Bunching Machine in Cable Manufacturing Equipment
Application:
The machine manly apply to multiple cable of data cable,HDMI wire cable,,power cable, naked copper wire(fine wire), shielding layer cable, control cable etc.
Configuration:
Singles stranding main unit, electric control system,Centre wrapping machine, side-way giving wrap & wire device.

Traits:
1.Computer control pitch,non-tension traction wheel,motion wiring cable passing path,increase the traction wheel diameter to reduce the wire cable curve.
2.Stranding main unit cantilever arm structure,revolving body with low rotating inertia,high rpm and stable speed.
3.Coiling box move trays left and right along the slide way,pitch stable with stepless adjusting,stranding wire cable ranking
neat,balance tension.
4.Compared with traditional single stranding machine,it has the advantage of avoiding screw rod breaking at high speed.
5.Tray loading and discharging easy with low labour consumption.
Layout of the equipment
Inside of machine
Cantilever single twisting machine
machinery model
HH-630
HH-800
HH-1000
HH-1250
single wire OD of high-speed cantilever single twisting machine
Φ0.5-Φ3.0mm
Φ0.8-Φ3.0mm
Φ1.0-Φ5.0mm
Φ1.0-Φ5.0mm
max strandding OD of high-speed cantilever single twisting machine
Φ12mm
Φ20mm
Φ25mm
Φ30mm
traverse pitch of high-speed cantilever single twisting machine
2-12mm
3-20mm
3-30mm
3-35mm
speed of high-speed cantilever single twisting machine
max800rpm
max600rpm
max500rpm
max450rpm
twisting pitch of high-speed cantilever single twisting machine
20-200mm
20-300mm
20-400mm
30-500mm
pay-off bobbin size of high-speed cantilever single twisting machine
Φ500mm
Φ500-Φ630mm
Φ500-Φ630mm
Φ500-Φ630mm
take-up bobbin size of high-speed cantilever single twisting machine
Φ630mm
Φ800mm
Φ1000mm
Φ1250mm
The wire samples
*Apply for Data cable, HDMI cable, power cable, bare copper cable, shielded layer cable, control cable, etc.
* Multistrand copper/aluminium/steel wire and cable
Company Profile
* Modern production mode
* Factory specialized assembly line operation
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong Kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.
Hu Machine Designer 20 years engineering design experience
Bi Head Engineer Responsible for project type engineering
Chen Senior Engineer Machine design for 30 years
Professional Engineers and Sale Teams
Name
Education
Position
Mainly responsible for project
Specializing in project
work year
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15 years
xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10 years
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25 years
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15 years
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16 years
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15 years
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7 years
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10 years
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10 years
haipin Li
University
Engineering director
Marketing and sales
project consulting
8 years
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5 years
Exhibitions ＆ Certifications

2018 Bombay, India Fair
Our company took part the exhibition in India in 2018.

2019 Thailand Exhibition
Our company is attached to Thailand to participate in the exhibition in 2018

2020 International Cable & Wire Fair
Our company will participate in the Shanghai International Cables and Wire Wire Exhibition in 2020
CE Certification Incorporation Certification Cabex Certification SGS Certification
Customer Cases
Huston, USA
Dubai
Egypt
Syria
Algeria
Packing & Delivery
The raw material packing

1.The CCA copper will packing anti the oxidation way
2.The PVC/PE/FEP packing will use the paper box and wood packing
3.The tape also use the paper box add wood package
The machine packing

1.usually use the PE foam package
2.The base need wood package
3.The tape will fixed the machine on the container
The machine package arrange

1.The machine will arrange the drawing of each machine on the container before loading
2.save the space for our client
3.ensure the machine delivery 100% safty
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,
sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%).
There are 5-10 professional workers in HOOHA.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery；
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
6.After service
1. Delivery dates: 45 days
2. Payment: TT or L/C
3. Packing: Plastic packing to ensure the goods safety on the transportation.
4. Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5. After service phone number online
