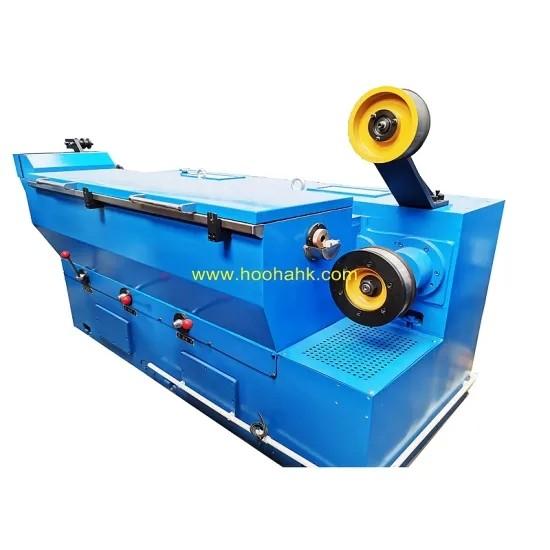

Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Best Quality Automatic Electric Cable and Wire Drawing Machine in Cable Making Machine
Specifications
Brand Name :
HOOHA
Model Number :
HH-D-350-9/11/13
Certification :
CE,ISO,SGS
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets/year
Delivery Time :
60 working days
Packaging Details :
1. film packing 2. wooden package 3.enclosed wooden package
Place of Origin: :
Guangdong, China
Model Number: :
HH-D-350-9/11/13
Electric Element: :
Siemens and Omron
Block Dia.: :
500mm
Max Dies No.: :
13 Dies
Weight :
15000 Kg
Bearing :
Japan-NSK
Control Box: :
International Standard
Wire Size: :
8mm Rod
Dimensions :
15*5*3 M
Description
Specification
item
value
Place of Origin
Guangdong China
Brand Name
HOOHA
Usage
Drawing
Model NO.
HH-D-350-9/11/13
Bearing
Japan-NSK
Electric Element
Siemens and Omron
Max. Number of Block
21
Control Box
International Standard
Wire Size
8mm Rod
Max Dies No.
13
Origin
Dongguan
Wire Finished Diameter
1.2-3.5
Power Supply
380V/50/60Hz
Product Description
Copper Wire Intermediate Drawing Machine with Annealer
The production line is highly integrated by uncoiling, leveling, forming, cutting off, punching, receiving and related process.The whole production line is controlled by PCL program.Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control, manual control, separate operation and emergency stop.
Machine type
280/13DH
300/9DH
250/13DH
250/17DH
260/17D-C
260/17D
Max.inlet Dia.(mm)
3.5
outlet Dia.(mm)
0.65-2.8
1.2-2.8
0.65-1.6
0.4-1.6
0.4-1.5
0.4-1.2
Max.Die No
13
9
13
17
17
17
Max.line speed(m/min)
2000
1200
1800
1800
1500
1200
body structure
Ironed cast
slip ratio of m/c(%)
20
18
20
20
18
18
fix speed capstan Dia.(mm)
280
300
250
250
260
260
transmission type
By high precision grinding gear
By chain
main motor power
55(45)
37
take-up motor(kw)
11(15)
11
lubrication type
Full immersion
Spray type
take-up bobbin size(mm)
500/630(bore is 127mm)or changed by requirement
Optional equipment
1.continuous annealing device
2.coiler
After service
1).Delivery dates: 25-30 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4).Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5).After service phone number online
The Technical Team
Certificates and Exhibitions
Customer Cases
Customers from Egypt come to visit our factory.
Customer from Dubai was testing equipment.
We contracted the Algerian government-level cable project in 2018.
Dinner with customers in the U.S.
Packing & Delivery
1. film packing 2. wooden package 3.enclosed wooden package
