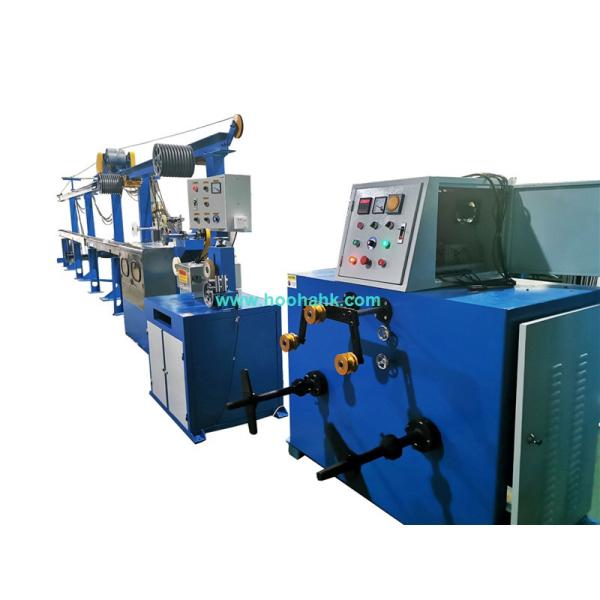

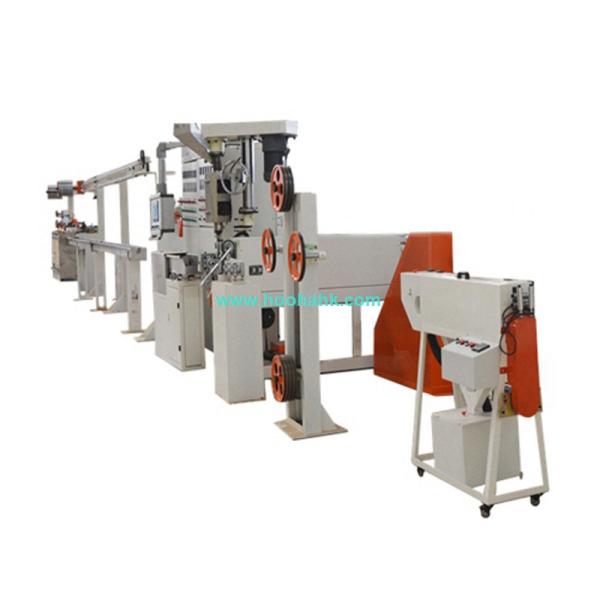

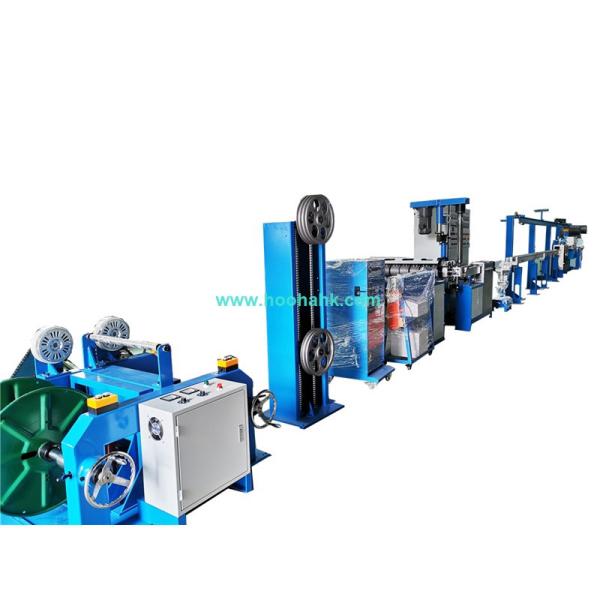

PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
Specifications
Brand Name :
HOOHA
Model Number :
HH-E-80+40
Certification :
CE,ISO,SGS
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 Sets/year
Delivery Time :
60 working days
Packaging Details :
1. film packing 2. wooden package 3.enclosed wooden package
Model NO. :
HH-E-80+40
Cross Sectional Area :
0.5-2.5 Square mm
Extrusion Capacity :
80kg/H
Voltage :
380V, Can Be Customized
Measurement (L*W*H) :
20*3*3 M
Transport Package :
PE Plastic
Origin :
Guangdong, Dongguan
Workers Recommendation :
3 Workers
Production Capacity :
10sets/Month
HS Code :
8477209000
Description

Wires And Cables Extruding Machinery With Speed Of 300 M/Min PVC/ PE Insulation

Product Description

PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min

This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.

Specification
No. Items Features
1 Inlet Wire Diameter 1~15 mm
2 Finished Wire Diameter 2~20 mm
3 Cross Sectional Area 1~10square mm
4 Extrusion Speed Max300m/min
5 Extrusion Capacity 200kg/h
6 Installed Capacity 65kva
7 Voltage 380V, can be customized
8 Weight 4500 kg
9 Measurement (L*W*H) 26*3.5*3.5 m
10 Workers recommendation 3 workers
Main Parts
1 400-630 motorized pay-off stand
2 5-wheel Straightening device
3
  1. wheel tension stand
4 80 Host extruder
5 80 Adjustable extrusion head
6 Φ40mm vertical injection machine
7 75KG Automatic drying and feeding machine
8 PLC Electric control box
9 1.5m Movable water tank with cover
10 Diameter tester
11 High speed printing machine
12 12m Fixed water tank with cover and leak-proof


Details Images
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/MinThe straightening device
1. Wheels 5*Φ60mm, dual grooves on each
2. Treatment Chromed and anodized for long-term usage
3. Bearing 6000, 6202
4. Material Q-235-A/Q-245-A/#45


PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/MinThe pay-off stand
1.Bobbin size 400-630 mm
2.Loading 500 kg
3.Pay-off speed 500 m/min
4.ension 5kg magnetic powder clutch
5.Main motor+Lift motor 3.7 kw + 0.75 kw
6.Material Q-235-A/Q-245-A/#45
Factory Picture

PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
Company Profile

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams.
We are a Hong Kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min


Customer Cases
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min

Exhibitions & Certifications
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min

Product packaging
PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min
FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%),
There are 5-10 professional workers in HOOHA.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After
service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
