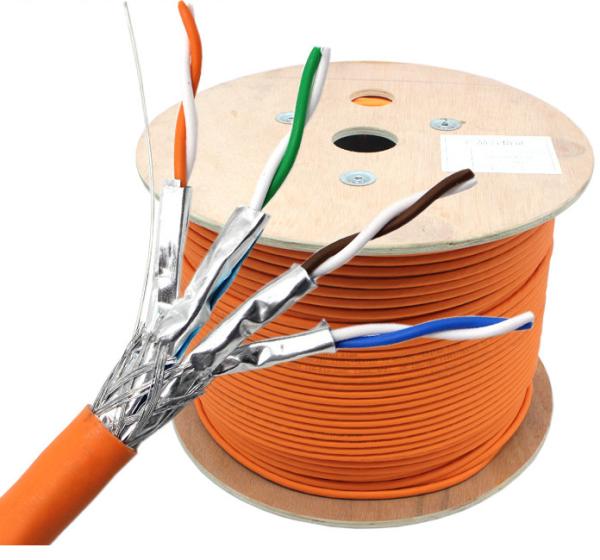

23AWG 8 Bare Copper Conductors SFTP Cat6 Cat7 LAN Cable Network Cable

1. Description

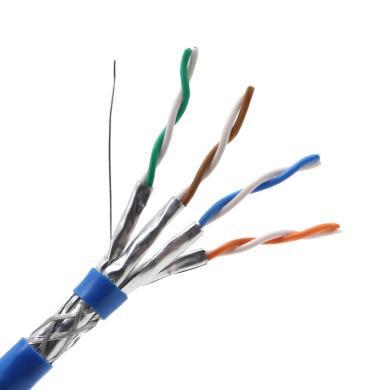

ISO/IEC 11801 7 class /F class standard in the latest kind of twisted-pair wire, it is mainly to adapt to the application and development of megabit Ethernet technology.But it is no longer an unshielded twisted pair, but a shielded twisted pair, so it can provide a combined attenuation-to-crostalk ratio of at least 500MHz and an overall bandwidth of 600MHz, more than twice the Class 6 and Super Class 6 lines, with a transmission rate of up to 10Gbps.In the seven types of cables, each pair of wires has a shield layer, and four pairs of wires together have a common large shield layer.Physically, the additional shielding gives the seven types of wires a larger wire diameter.

Another important difference is the ability to connect hardware. The parameters of the seven types of systems require that all line pairs provide at least 60dB of integrated near-end string winding at 600MHz of the connector.However, the super class 5 system only requires 43dB at 100MHz, and the value of class 6 at 250MHz is 46dB.

2. Parameters

Number of Conductors:8

Priduct Type:sftp Cat7 cable

classify:SFTP

Conductor:Bare Copper

Diameter:0.56mm/0.64mm

Insulation:FPE

Jacket: PVC LSZH LSOH PE HDPE

Packing:2 reels /carton

Specification:305m/1000ft per reel

Color:Green Black Yellow White Blue

Certification: CE, ROHS

3. Specification

6. Detailed Photos

7. Application

8. Reasons to choose HOOHA

1.HOOHA GROUP provide a series of solution based on the real need of our customers in the field of wire and cable making machine. We offer the layout design of cable plant, machine shipping and installation, and subsequent equipment operation training and so on. It means you only spend less money on machine and can enjoy such services and save time.We are committed to providing you with cost-effective products to reduce your concerns.

2.Throughout the entire trade operation process, we strictly control every handover step with highly efficiency in order to guarantee the best products being sent to our customers within the required time.

3.Our corporate culture is growing together with customers. Helping customers achieve greater development through cooperation with us is what we have been doing.
