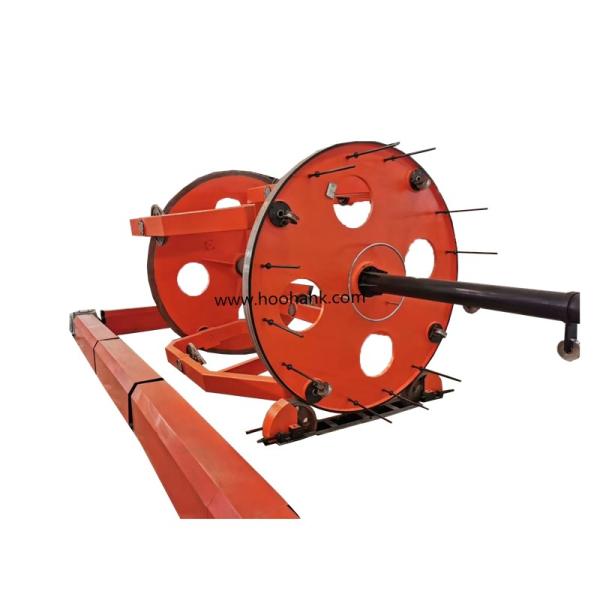

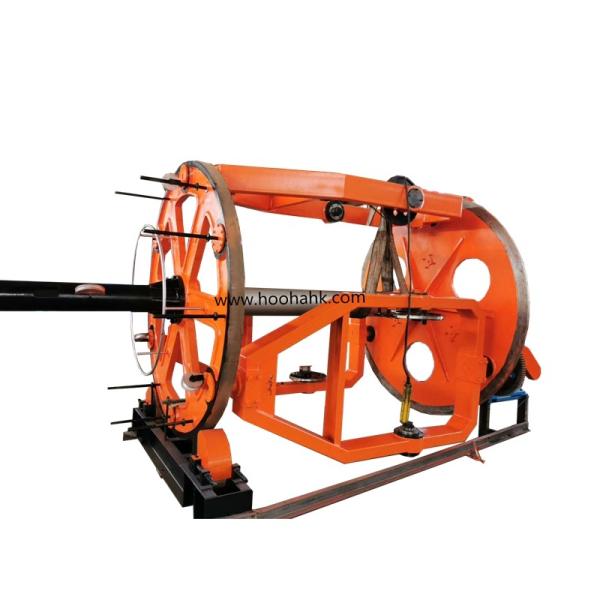

Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Factory Price Control Cable Laying Up Machine in Stranding Processing
Specifications
Brand Name :
HOOHA
Model Number :
HH-1000/1600
Certification :
ISO, CE, SGS
Place of Origin :
Guangdong，China
MOQ :
1unit
Price :
USD 220000/unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1 unit 60days
Delivery Time :
60days
Packaging Details :
film/wooden package
Usage :
Stranding
Automatic Grade :
Automatic
Motor :
Germany-Siemens
Inverter :
Siemens
Wire material :
Copper
Specification :
CE ISO
Warranty :
12 Months
Description
Specification
item
value
Place of Origin
China
Brand Name
HOOHA
Model Number
HH-1000/1600
Usage
Cabling
Type
Cable Laying-up Machine
Automatic Grade
Automatic
Motor
Germany-Siemens
Inverter
Siemens
Electric Element
Siemens and Omron
Specification
CE ISO
HS Code
8479400000
Warranty
12 months
Transport Package
Wood Package
Product Description
Best Quality Exported Bow Type Cable Laying-up Machine
-------We make solutions and machines
help installating and operating
keep training and maintaining
Factory Price Control Cable Laying Up Machine in Stranding Processing
Application:
The machine is suitable for stranding and lay-up various sizes and various specifications of 3-7 cores. This is mainly used for power cables,insulated cores, which can be round or sector.
Component:
1 Φ 1600mm Manual pay-off stand 1 Set 2 Φ 1600/5 bow-shaped twister 1 Set 3 Wire-stranded mould stand 1 Set 4 Meter counter 1 Set 5 Φ 2000mm Double capstan wheels 1 Set 6 Φ 2500mm Column type take-up with traverse 1 Set 7 Transmission system 1 Set 8 Electric control system 1 Set 9 Safe cover 1 Set 10 Φ 400mm x 2 Taping machine 1 Set
Character:
1. More kind and specification, this series machine can be used extensively, so customers can choose the very laying-up equipment.
2. Equipped with retreat-spiralling and non-retreat-spiralling function. The way of retreat-spiralling is retreat-spiralling
circle , planet retreat-spiralling and sprocket retreat-spiralling.
3. The way of pre-spiralling is manual and automatic, the same to thread reel clamp .And the take-up is axle or non-axle.
Specification
HH1000/1+1+3
HH1250/1+1+3
HH1600/2+3
HH2000/2+3
HH1000/1+6
HH1250/1+6
Dia. of single wire(mm)
5-20
5-25
10-35
15-45
Diameter of cable forming
80
100
120
Cable forming pitch(mm)
4.0-20.7
4.1-12.1
3.4-8.1
Cable forming pitch(mm)
255-6850
227-9250
338-6585
403-7650
Speed of taping head(rpm)
136-303
Taping pitch(mm)
15.5-272
Armor speed (r/min)
136-303
Armor pitch (mm)
15.5-272
Diameter of wheel haul-off(mm)
1800
2000
2500
Production speed(m/min)
4.7-37
3.2-26.6
Size of take-up reel(mm)
PN2000
PN2500
The wire samples
It is mainly used for Data cable, HDMI cable, power cable, bare copper cable, shielding layer cable, control cable and other cables are multiple converged cables.
Company Profile
Hu Machine Designer
20 years engineering design experience
Bi Head Engineer
Responsible for project engineering
Chen Senior Engineer
Machine design for 30 years
Professional Engineers and Sale Teams
Name
Education
Position
Mainly responsible for project
Specializing in project
work year
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15 years
xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10 years
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25 years
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15 years
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16 years
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15 years
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7 years
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10 years
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10 years
haipin Li
University
Engineering director
Marketing and sales
project consulting
8 years
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5 years
Exhibitions ＆ Certifications
2018 Guangzhou Exhibition
2019 Russia Exhibition
2018 Bombay, India Fair
2019 Thailand Exhibition
2020 International Cable & Wire Fair
CE Certification Incorporation Certification Cabex Certification SGS Certification
Customer Cases
Syria
Dubai
Egypt
Algeria
Huston, USA
Packing & Delivery
The raw material packing

1.The CCA copper will packing anti the oxidation way2.The PVC/PE/FEP packing will use the paper box and wood packing
3.The tape also use the paper box add wood package
The machine packing

1.usually use the PE foam package2.The base need wood package
3.The tape will fixed the machine on the container
The machine package arrange

1.The machine will arrange the drawing of each machine on the container before loading2.save the space for our client
3.ensure the machine delivery 100% safty
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2017
* HOOHA products sell to
Africa(17.00%)
Mid East(17.00%)
Southeast Asia(16.00%)
Eastern Asia(13.00%)
South Asia(10.00%)
South America(8.00%)
Eastern Europe(4.00%)
North America(3.00%)
Northern Europe(3.00%)
Southern Europe(3.00%)
Oceania(2.00%)
Western Europe(2.00%)
Central America(2.00%)
2.What can you buy from us?
Drawing Machine
Cabling Machine
Bunching Machine
Stranding Machine
Extrusion Machine
Wrapping and Packing machine
3. How can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
4. What services can we provide?
Accepted Delivery Terms:
FCA,FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency:
USD,EUR,CNY
Accepted Payment Type:
T/T,L/C,Credit Card,PayPal,Western Union,Cash
Language Spoken:
English,Chinese,Cantonese
5. What are our advantages over other suppliers?
10 year R&D working experience with over sea service
5 big LV/MV cable project over 5 million working experience
After service team has 30 country working experience
HOOHA team focus on the cable making and use solution supply chain.
