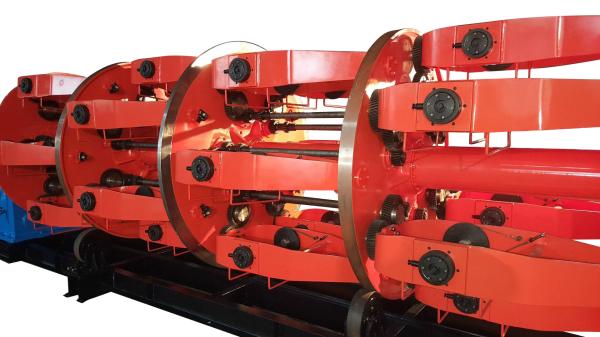

Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Specifications
Place of Origin :
guangdong
MOQ :
1 set
Price :
179000 $
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
60 work days
Packaging Details :
flim packing
Usage :
Stranding,Twisting,Cabling,core cable laying up machine
Color :
Customized,Blue,Blue RED GREEN,black,green or as customer required
Name :
laying up machine
Application :
Cable Making Industry,Stranding,Copper/Steel wire stranding
Function :
electric wire laying up,Twist/stranding Wires,stranding,laying up cores into cable
Wire material :
conductor or insulated cores,steel tire cord/copper wire
Weight :
1000~3000kg
Warranty :
12 Months
Type :
Electrical Appliance Machinery
Certification :
ISO
Motor :
siemens
Description
Video Description
00:09
00:24
Company Profile
00:00
02:00
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Cage Twisting Wire And Cable Making Machine For 1+6/1+12 Cable Making 500 type
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Product Description
Application:
This production line is for manufacturing quality control cables, optical fiber cables and multi-strand cables. It's structure is composed of pay-off stand, stranding cage, die holder, wrapping bobbin, meter counter, tractor device, and electrical control box and so on.
400
500
600
Wire diameter
7mm
8mm
10mm
Max.speed
126rpm
105rpm
85rpm
Stranding pitch
48-1315mm
48-1315mm
58-1280mm
Max. tapping speed
500rpm
500rpm
500rpm
Tapping pitch
14.5-279.4mm
14.5-279.4mm
14.5-279.4mm
Steel tape
146-376rpm
146-376rpm
146-376rpm
Pitch range of tapping head
14.5-279.4mm
14.5-279.4mm
14.5-279.4mm
Specification of pay off reel
PN400
PN500
PN630
Specification of take up reel
800-1600
1000-2500
1000-3150
Power of main motor
11-37KW(AC)
22-45KW(AC)
22-55KW(AC)
Take up torque motor
16-60.N.M
40-60.N.M
60-80.N.M
Machine height
1000mm
1000mm
1000mm

Main feature:

1. This equipment adopts PLC program control, using frequency conversion motor controller make output shaft speed constantly.
2. Hydraulic brake and electromagnetic brake was equipped by this production line, so they can achieve to stop steady and quickly.
3. All of wheel gears are helical gears which reduce noisy and the pitch is automatic adjustment.
4. The servo motor was equipped in the important position, so the speed is computer stepless speed regualtion.
5. We provide safety guardrail around the production line and hoister for lifting.
6. Take-up machine and traverse wire device adopts torque motor.
Equipment Layout
The wire samples
It is suitable for the production of steel core wire, bare copper, bare stranded aliuminum wire, but also for rubber cables,
multi-strand power cable and all kinds of communications wire into a cable.
The Technical Team

Why choose us?

1. We are the cable equipment manufacturer.
2. Professional engineer, long-term to research and development for to cable equipment .
3. High frequency capacity manufacturer machine is provide. Guarantee the machine all weather running .
4. Our machine use the international qualified brand, like Siemens, Omron, NSK, Lg, etc.
5. Technical support and spare parts service.
6. Well-experienced in overseas to support customer with technical,training,operating.
7. Responsible and Good communication and customer service skills,and save time and human cost for customers.
8. Complete Foreign Trade Team.
9. Working efficiently,quickly response to customer needs.

Chen Senior Engineer
Machine design for 30 years

Hu Machine Designer
20 years engineering design experience

Wen Plant Engineer
30 Years experience
Professional Engineers and Experienced Sales Team
Name
Education
Position
Mainly responsible for project
Specializing in project
Working history ( year )
Zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
Xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
Xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
Lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
Zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
Jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
Xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
Changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
Haipin Li
University
Engineering director
Marketing and sales
project consulting
8
Sen Yang
University
Engineering translator
Marketing and sales
project consulting
5
Our professional sales and engineering team
Customer Cases
HOOHA provides technical support to overseas customer service
Dubai
Algeria
Syria
Egypt
Pre-sale
1.Professional engineer team provide customized design and machine arrangement drawing service 2.Professional engineer team can
visit customers's company in person and provide face-to-face service 3.Professional trading system provide high-efficient communication 4.Professional sales team including pre-sale staffs,after-sale staffs,order supervisor,shipping managers, finance
managers,cable. making engineers would give you more detailed consultant service.
Mid-sale
1.Professional follow-up system ensures high-quality service including live production video shooting,etc. 2.Quality control system with professional engineers ensures project goes smoothly.
3.Quality checking will be provided with professional quality inspection report before machine delivery.
After-sale
1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training.
2.Free online consultance service. 3.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
4.Extend service support, such as raw material or accessory suggestions etc.
Exhibitions ＆ Certifications
2018 Bombay, India Fair
Our company took part in Bombay Exhibition in 2018
Russia Exhibition
The communication of Russia exhibition
2019 Thailand Exhibition
A successful interchange at the Exhibition in Thailand
2020 International Cable & Wire Fair
The Shanghai exhibition is gain a lot
Our Certificate
Packing & Delivery
Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special packaging way as per discussed.
Carton package
wooden package
Wrap in plastic film to prevent wetting
Container transportation
1. film packing 2. wooden package 3.enclosed wooden package
