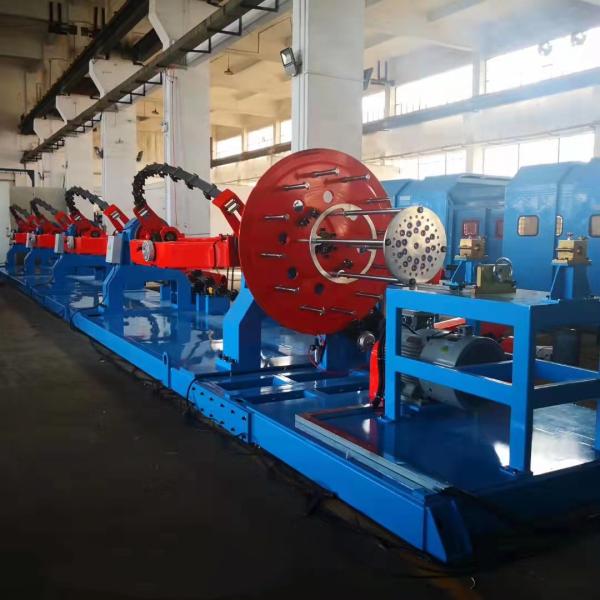

Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor
Specifications
Brand Name :
Hooha
Model Number :
HH-1250 1+5 Bow Type Stranding Machine
Place of Origin :
dongguang
MOQ :
1 set
Price :
223888$ per set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per month
Delivery Time :
60 works day
Packaging Details :
film packing
Max diameter :
20mm
Max Speed :
179r/min
Pulley diameter :
1600mm
Equipment center height :
1000mm
Pay-off reel specification :
PN1250
Description

Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor

Production

Application:

The equipment is mainly used for cabling of flexible structural cables such as control cables, mining cables and rubber sheathed cables.

Parameter:

1
Maximum single wire diameter
20mm
2
The maximum speed of the bow is
179r/min
3
Strand pitch
73.5～676mm
4
The maximum speed of double coiled toe head
800r/min
5
Double coiled toe head pitch
Stepless adjustable
6
Pulley diameter
F1600mm
7
Traction line speed
13.1～121m/min
8
Specification of center pay off reel
PN800～PN1250
9
Pay-off reel specification
PN1250
10
Specification of take-up reel
PN1250～PN2500
11
Main motor
75kW(AC)
12
Double coil wrap motor
15kW (AC variable frequency motor)
13
Equipment center height
1000mm

Manufactory Technique

Testing

Cable Making Machine 1250 1+5 Bow Twisting Machine Flexiable Conductor

Why choose us?

1. We are the cable equipment manufacturer.
2. Professional engineer, long-term to research and development for to cable equipment .
3. High frequency capacity manufacturer machine is provide. Guarantee the machine all weather running .
4. Our machine use the international qualified brand, like Siemens, Omron, NSK, Lg, etc.
5. Technical support and spare parts service.
6. Well-experienced in overseas to support customer with technical,training,operating.
7. Responsible and Good communication and customer service skills,and save time and human cost for customers.
8. Complete Foreign Trade Team.
9. Working efficiently,quickly response to customer needs
