Specifications
Brand Name :
HOOHA
Model Number :
HH-100MM
Certification :
CE/ISO
Place of Origin :
Guangdong
MOQ :
1 set
Price :
US＄78690-75890/1set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10set/1 month
Delivery Time :
30 Working Days
Packaging Details :
plastic package
Condition :
New
warranty :
12 Months
Color :
Customize
Screw Design :
Single Screw
plastic processed :
PVC
Usage :
insulation
Automatic Grade :
Full Automatic
Weight :
4T
Voltage :
380V
Description

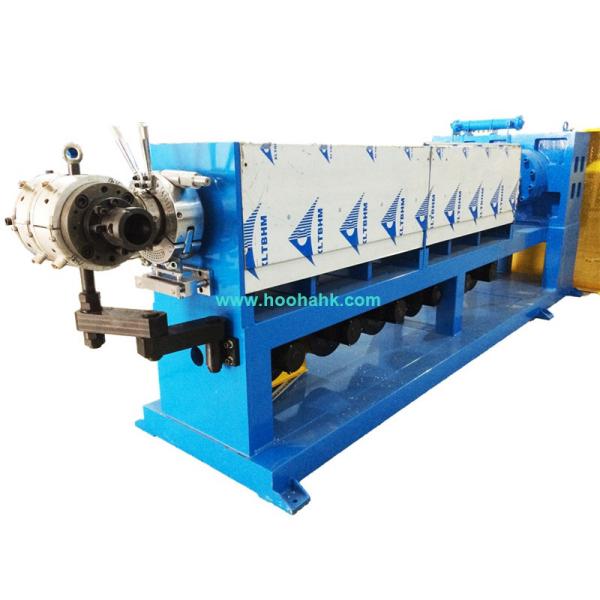

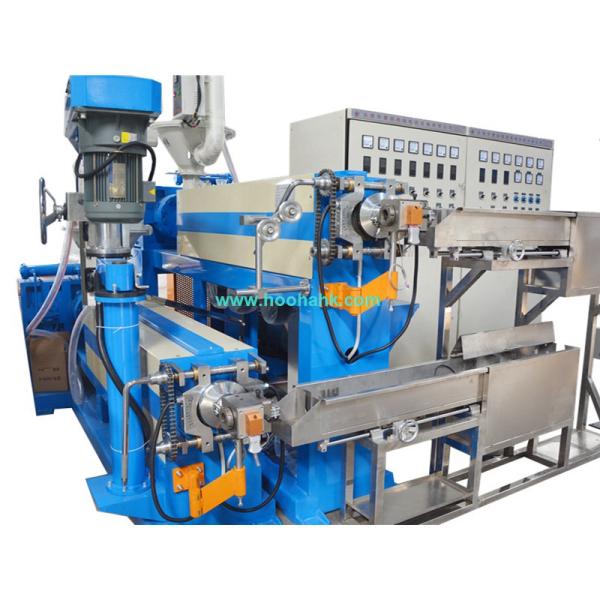

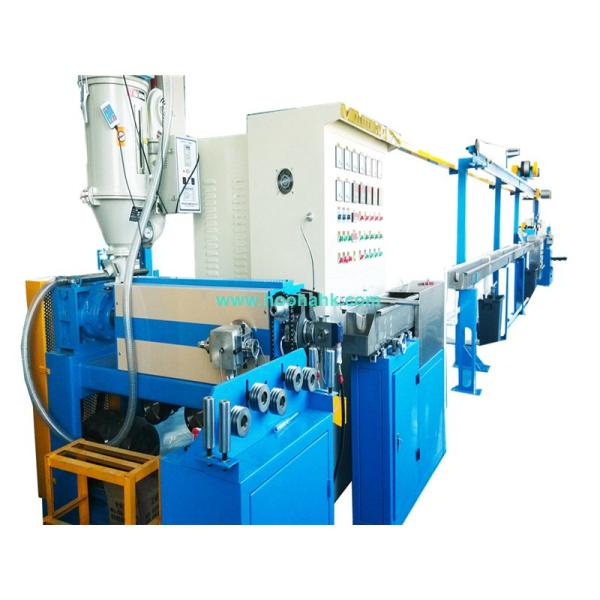

Extruder machine for cable manufacturing PVC power cable jacket production extrusion line

More information :

Youtube:https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow

1. Application

It's used for the insulation of wire&cable with PVC,LDPE,NYLON,TPU.

Also it can be equipmented with triple co-extrusion crosshead and double layer

2. Specifications

Main technical parameter Screw Parameters Extrusion Capacity (kg/h)
Dia(mm) L/D Ratio Ratation Speed(r/min) PVC LDPE PP
HH-30 Extrusion Φ30 25:1 20-110 25 16 13
HH-40 Extrusion Φ40 25:1 20-110 40 20 17
HH-50 Extrusion Φ50 25:1 20-110 80 40 34
HH-60 Extrusion Φ60 25:1 15-110 100 53 41
HH-70 Extrusion Φ70 25:1 15-110 130 86 68
HH-80 Extrusion Φ80 25:1 10-90 200 122 96
HH-90 Extrusion Φ90 25:1 10-80 240 133 124
HH-100 Extrusion Φ100 28:1 10-80 260 144 130

Siemens PLC electric control box
1. PLC Siemens
2. Language English / Chinese
3. Operation Touch screen with quick response
4. Control Single / linkage
5. Monitoring and control Data can be set and display on the screen: host rotation speed, extrusion speed, temperature, actual outlet meters etc. Humanized design, simple, convenient and safe operation
6. Inverter Adopts full frequency conversion control, which greatly reduces the energy consumption and ensures the stability of the entire production line.

Automatic drying and feeding machine
1 Style SHD-25 barrel type
2 Capacity 25 kg
3 Feeding speed 200 kg/h
4 Feeding height Max 4m
5 Feeding motor 0.75 kw
6 Heating tube 2 kw
7 Temperature control Automatic control with temperature and time setting

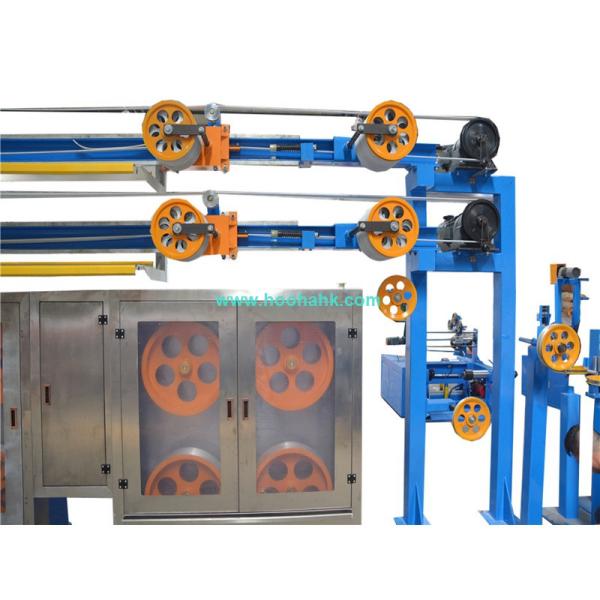

400-630 Double-head take-up machine

1 Bobbin size 400-630 mm

2 Take-up speed 500 m/min

3 Wire laying Automatic, row space and width are adjustable

4 Main motor 3.7 kw *2

100 adjustable extrusion head

1 Centrality Adjustable

2 Construction Single layer or color line

3 Material and process 40CrMoA1A alloy steel with nitriding treatment, chromed and polished

4. Factory & Workshop &Warehouse

Company name HOOHA Co.,Ltd
Established 2003
Main products upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location Humen Town,Dongguan City,Guangdong province.
Manufacturing Center 4000 sqm
Showroom More than 2000 sqm.

High Capacity Wire And Cable Making Machinery / Power Cable Jacket Extrusion LineHigh Capacity Wire And Cable Making Machinery / Power Cable Jacket Extrusion Line
High Capacity Wire And Cable Making Machinery / Power Cable Jacket Extrusion Line
Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.

5. Package

Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

Plywood frames and Stretch film are used to avoid breakage in transit.

The Technical Team
Hu,machine designer
Wen,plant designer
Chen,senior engineer
Team of service
Name
education
Position
Mainly responsible for project
Specializing in project
Industry working history ( year )
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
xioahua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Chnaghong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
haipin Li
University
Engineering director
Marketing and sales
project consulting
8
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5
Customer Cases
Algeria
Dubai
Syria
Thailand
Egypt
Houston, USA
Argentina
