Specifications
Brand Name :
HOOHA
Model Number :
HH-150MM
Certification :
CE/ISO
Place of Origin :
Guangdong
MOQ :
1 set
Price :
US＄53470-65,000/1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5set/1 month
Delivery Time :
25-35Working Days
Packaging Details :
Wood, plastic as customer requiry
Condition :
New
Installed Capacity :
About 235 Kg/h
Length of Production Line :
38meters
Color :
Customize
Screw Diameter :
Ø150mm
Warranty :
12 Months
Available Material :
PVC PE LSZH XLPE
Line Speed :
Max 200m/Min
Description

150mm large cable outdoor cable underground cable wire extrusion machine

1. Application:


It is for insulating, coating, stripping single or two layer wire and cable with extruding PVC, XLPE and LDPE compound material. Also it is suit for making power cable, building wire, communication cable, and so on.

2. Technical Characteristics

1. Finished Wire Diameter: Φ30 mm～Φ120mm
2. Applicable Material XLPE
3. Screw Diameter 150mm
4. Extrusion Capacity (When the head is turned on.): Φ150 Machine=max600 kg/h
5. Linear Velocity: 1～100m/min
6. Length of Production Line: 38 Meters
7. Installed Capacity: About 235 KW/h
8. Color: Grass Green/customize

Underground Wire Extrusion Machine , 150mm Large Cable Manufacturing Machine With ISO CE

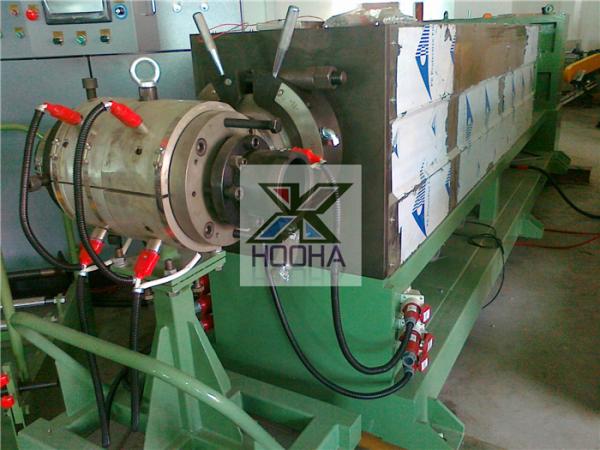

3. 150mm Extrusion Host

Applicable Material: XLPE, Plasticization degree of 100%.
Maximum Extrusion Capacity: 600kg/hr.
Mechanical Center Height: 1000mm
Ratio of Length and Diameter: 1:25
Compression Ratio: 1:2.8
Rotation Rate of Screw: 0—50 RPM
Material of Screw: One Ø150mm screw with whole tooth nitrogen treatment of alloy steel and chrome-plated polished surface and screw-passing cooling water device.
Material of Screw Cylinder: 38CrMoA1A alloy steel, nitrogen treatment and precisely grinding. The surface hardness inside the screw cylinder is R2-3 degree higher than that of the front surface of the screw and the screw thread. The cooling water jacket is added on the feed point of the screw cylinder.
Gearbox: Imitation of Italian-type, hardened helical gear gearbox, material of cast steel, oil-bath lubrication, tooth-face high-efficiency quenching and adoption of Japanese NACHI bearing.
Electric Heating: 380V, with even three-phase separated flow.
Control of Temperature: Use the PID automatic temperature control gauge made in Yangming, Taiwan, automatically set the control under 0-399℃ and use KTYP as the thermal-couple.
Cooling: Screw cylinder zone 6, use 6 sets of cooling fans (750W).
Head: Vacuum equipment head
Host Motor: The Siemens motor drags with 110 KW. Germany DC converter controls and unloads by synchronization. The velocity adjustment is convenient and steadily operated.
Screw cylinder electric heating zone 6, the cast aluminum heating ring heating is affixed with cooling air duct.
Head electric heating zone 1, heating by cast aluminum heating ring.
Neck electric zone 1, heating by the electro-thermal tablets.
Eye die electric heating zone 1, heating by the electro-thermal tablets.

Underground Wire Extrusion Machine , 150mm Large Cable Manufacturing Machine With ISO CE

4. After service


1).Delivery dates: 45 days
2).Payment: TT or L/C
3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

5. Factory & Workshop &Warehouse

Company name HOOHA Co.,Ltd
Established 2003
Main products upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location Humen Town,Dongguan City,Guangdong province.
Manufacturing Center 4000 sqm
Showroom More than 2000 sqm.



Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.

Underground Wire Extrusion Machine , 150mm Large Cable Manufacturing Machine With ISO CE

Underground Wire Extrusion Machine , 150mm Large Cable Manufacturing Machine With ISO CE

6. Package

Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

Plywood frames and Stretch film are used to avoid breakage in transit.

7. FAQ

Question Answer
MOQ 1 set
Lead Time 30~40 working days since starting producing.
Warranty Time 1-year quality guarantee for the machine
Payment Terms 30% T/T in advance for production material, 70% in the period of shipment.
Installation
(3 choices )		 a. HOOHA's Chinese installation team.
b. HOOHA's overseas installation co-partners in your country.
c. DIY Guide: HOOHA supports online guidance.
How to Start Contact us and leave your contact email and phone number.

8. Why choose us?

1.We are the cable equipment manufacturer.

2.Professional engineer,long-term to research and development for to cable equipment .

3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

5.Technical support and spare parts service.

6.Well-experienced in overseas to support customer with technical,training,operating.

7.Responsible and Good communication and customer service skills,and save time and human cost for customers.

8.Complete Foreign Trade Team.

9.Working efficiently,quickly response to customer needs.
