Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine
Specifications
Brand Name :
HOOHA
Model Number :
HH-70/80/90MM
Certification :
CE/SGS/ISO
Place of Origin :
Guangdong
MOQ :
1 set
Price :
US＄8690-8580/1set
Payment Terms :
L/C,T/T, Western Union
Supply Ability :
10set/1 month
Delivery Time :
35Working Days
Packaging Details :
plastic package
Screw Speed :
390rpm
Condition :
New
Automatic Grade :
Full Automatic
Color :
Customize
Weight :
7600kg
Extrusion Capacity :
390kg / Hour
Application :
wire installion
Plastic Processed :
PE, PP, PVC, LDPE
Screw Design :
Doulbe Screw
Screw L/D Ratio :
25:1
Description
PVC insulated 90mm Cable making machine and cable extrusion line for power cable
1. Application:

Applied to BV,BVV,BVR,RV,N ylon sheath,and halogen-free environment-friendly building wire.
2. Specifications:
Machine model HH-WE-70 HH-WE-80 HH-WE-90
Pay-off line type Double axes/dynamic drum take-up Double axis way
Pay-off bobbin size(mm) 400-630 630-800
Screw diameter(mm) φ70 φ80 φ90
L/D of screw 25:1 BM type
Extrusion capacity(kg/hr) 140 200 250
Main unit power(HP) 30 40 50
Cooling device Single layer/double
Accumulator capacity 200m
Capstan power(HP) 5 7.5 7.5
Wire speed(meter/minute) 0-500 0-450 0-400
Take-up line type Double axes bundle packing /axis packing/swaying tray coiler packing Double axis way/axis
Receving reel 500mm-630mm
Take-up line power(HP) 5 5 7

Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine

Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine

Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine

3. Spare Parts Brands:

Motor: Dongguan Motor , Teco, ABB, Siemens
Inverter : Japan Yaskawa, Siemens, Taiwan Teco
Temperature Control Meter: Japan RKC;
Auxiliary Relay: Japan Omron ;
Ammeter and Voltmeter: Taiwan Risesun ;
Indicator, Switch and Button: Taiwan TEND ;
Contactor: Taiwan Shihlin
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

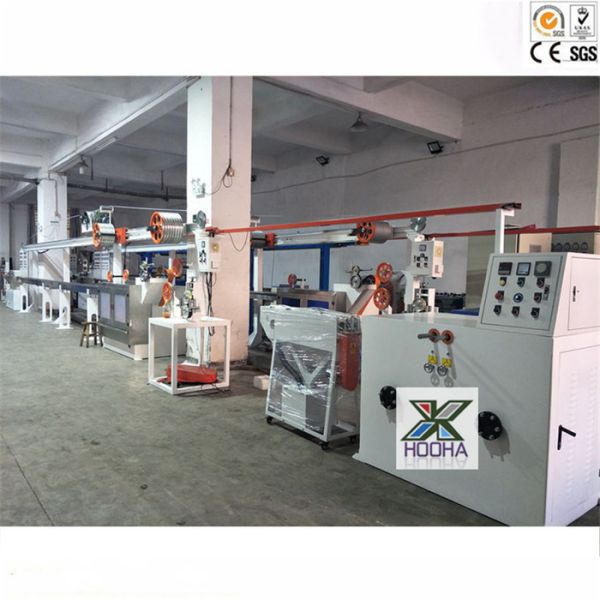

4. Consisting Components:

1, double-shaft pay-off rack
2, straightener platform
3, main extruder
4, automatic dryer and hopper
5, electric apparatus main control cabinet
6, Double layer movable trough
7, laser diameter gauge or Digital Diameter controller
8, high speed printing machine
9, double-wheels capstan
10, Meter counter
11, horizontal type wire-accumulator
12, power frequency sparker
13, double-shaft take-up machine

5. After Service:

1). Delivery dates: 45 days
2). Payment: TT or L/C
3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
5) after service phone number online

Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine


6. Contact us:


Http:www.hoohahk.com

Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China

7. Factory & Workshop &Warehouse

Company name HOOHA Co.,Ltd
Established 2003
Main products upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location Humen Town,Dongguan City,Guangdong province.
Manufacturing Center 4000 sqm
Showroom More than 2000 sqm.



Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.

8. Package

Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

Plywood frames and Stretch film are used to avoid breakage in transit.

9. FAQ

Question Answer
MOQ 1 set
Lead Time 30~40 working days since starting producing.
Warranty Time 1-year quality guarantee for the machine
Payment Terms 30% T/T in advance for production material, 70% in the period of shipment.
Installation
(3 choices )		 a. HOOHA's Chinese installation team.
b. HOOHA's overseas installation co-partners in your country.
c. DIY Guide: HOOHA supports online guidance.
How to Start Contact us and leave your contact email and phone number.

10. Why choose us?

1. We are the cable equipment manufacturer.

2. Professional engineer,long-term to research and development for to cable equipment .

3. High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

4. Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

5. Technical support and spare parts service.

6. Well-experienced in overseas to support customer with technical,training,operating.

7. Responsible and Good communication and customer service skills,and save time and human cost for customers.

8. Complete Foreign Trade Team.

9. Working efficiently,quickly response to customer needs.

11. Where are we?


Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
