1250/1+1+3 Cradle Type Laying-up Machine (Independent motor driven)

Application

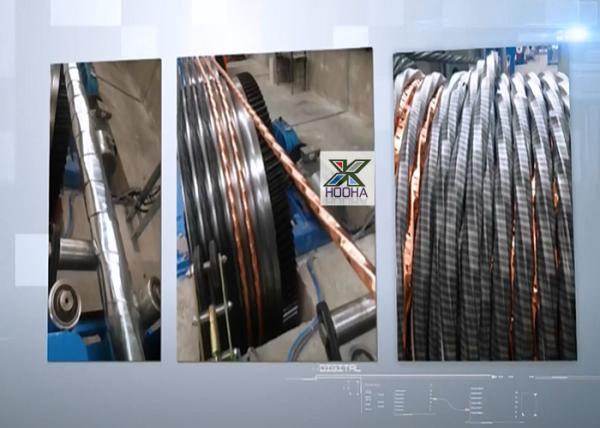

Laying up machine is mainly used for the cabling of power cables or control cables,and the stranded cables may be round or fan-shaped cables.Laying up machine is mainly composed of pay-off racks, stranding cages, die holder, wrapping equipment, steel wrapping device, meter counter,casptan, take-up & traverse rack, transmission system and electrical control system.

1. Pay-off

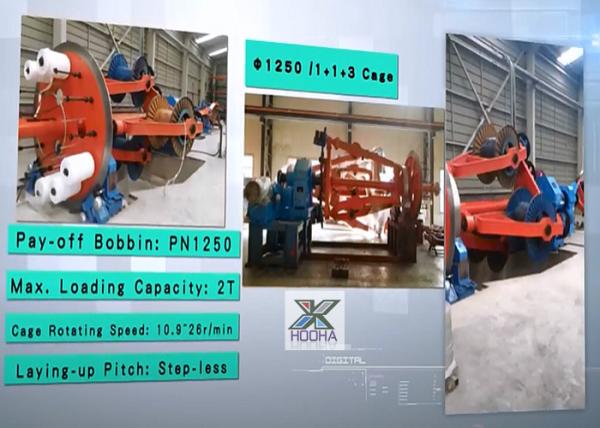

2. Φ1250 /1+1+3 Cage: Pay-off Bobbin: PN1250

Max.Loading Capacity: 2T Cage Rotating Speed: 10.9~26r/min Laying-up Pitch: Step-less

3. Φ600 Dual Taping Machine

Max.O.D. of Passable Cable: Φ120mm Max. Speed of Taping Head: 500r/min Taping Pitch: 20~208mm (Step-less)

4. Φ800 Steel Tape Armoring Machine

Max.O.D. of Passable Cable: Φ120mm Max. Speed of Armoring Head: 300r/min Armoring Pitch: 20~305mm (Step-less)

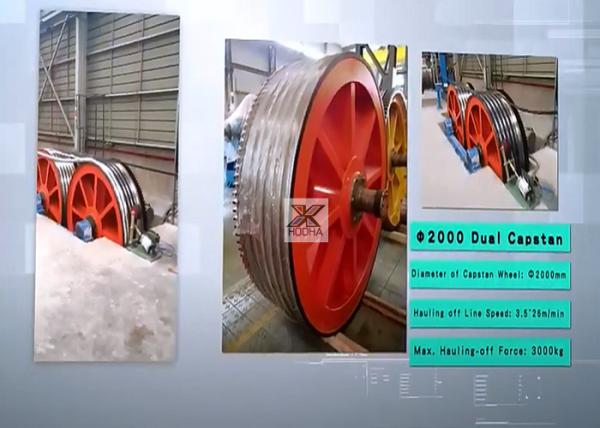

5. Φ2000 Dual Capstan: Diameter of Capstan Wheel: Φ2000mm

Hauling off Line Speed: 3.5~26m/min

Max. Hauling-off Force: 3000kg

6. Φ2500 Portal Type Take-up

Specification

What does your company guarantee for machines if we buy it ?

1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction,installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing,If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3. After installation,We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4. During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of re-installation

Q: What is your company experience to buyers ?

HOOHA is a manufacturing and trading combo for wire and cable industry field , with more than 15 years full experience and a professional team on sales and technical .

At HOOHA our mission is to be a team of highly skilled experts who collaborate to bring the best quality products, custom solutions, and innovative thinking to our customers.

1. Our pre-service team for machine designer ( 5 member) and wire and cable engineering (5) are over 15 years experience;

2. After service on electricity engineer (10), machinical engineer(8),software engineer(5) are over 10 years experience;

3. Sales team who is specialized in wire and cable engineering field ( 10 ) , are over 8-10 years experience in focus ;

4. Production self-inspection team ( 5 ) , are over 15 years experience .
