380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
Specifications
Brand Name :
HOOHA
Model Number :
630/800/1000/1250
Certification :
ISO\CE\SGS
Place of Origin :
Guangdong
MOQ :
1 set
Price :
US＄41186-40980/1set
Payment Terms :
Western Union, L/C, T/T, D/P
Supply Ability :
10set/1 month
Delivery Time :
30 Working Days
Packaging Details :
plastic package
Condition :
New
Warrantly :
12 months
Color :
Customize
Usage :
Twisting
Application :
Twisting Core ang Bare Wire
Voltage :
380V,50HZ
Power :
11kw
Take-up Tension :
Pneumatic
Traversing Type :
Stepless Regulation
Description

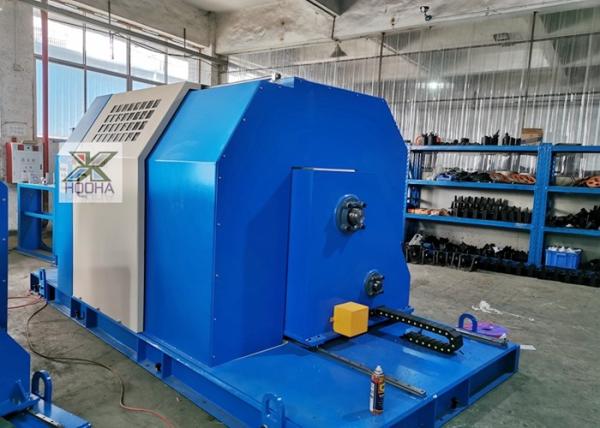

Cantilever Single Twist Machine for Core Wire stranding

Application:

The cantilever machine suit for various power wire, CAT5,ultraCAT5 and CAT6 data cable,commumication cable and other twist.

Perfoemance and features:

The series of equipment consist of PLC procedure, frequency conversion speed-regulation control, pneumatic control,

cantilever cabling twist motion, bobbin capstan take-up motion and reciprocating traverse motion are dual controlled by

mechanical linkage and pneumatic linkage,so, the excellent synchronous performance of the unit from starting. Normal

opeartion,slow stop and emergency stop status, in addition,the stable twist pitch is also ensure with small errorsat the

same time. Such cabling series are unique in the design of production line.Advanced in technology and it is the prefered

product for the seriesproduction of cabling and wrapping.

Optional parts:

1. Double head (Multiple-set)active pay-off

2. Multiple-head passive tension pay-off

3. Multiple-head back twisting machine

4. Multiple-head active back twisting machine

5. Side wrapping frame(verticle wrapping machine)

According to the take-up bobbin,it has 630mm,800mm,1000mm,1250mm four specification

380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding

Technology parameter:

Machine type HH-630 HH-800 HH-1000 HH-1250
Pay-off bobbin dia. 400-500-630mm 400-500-630mm 400-500-630mm 400-500-630mm
Take-up bobbin dia. 630mm 800mm 1000mm 1250mm
Applicable wire dia. 0.6-3.0mm 0.6-3.0mm 1.0-5.0mm 1.0-5.0mm
MAX. lay-up dia. 15mm 20mm 25mm 30mm
Twisting pitch 20mm-200mm 30mm-300mm 30mm-350mm 30mm-350mm
No.of rotate 1000r/min 800r/min 600r/min 550r/min
Take-up tension Pneumatic Pneumatic Pneumatic Pneumatic
Traversing type steppless regulation steppless regulation steppless regulation stepless regulation
Traversing distance 2mm-12mm 3mm-20mm 3mm-30mm 3mm-30mm
Twisting direction S /Z S/Z S/Z S/Z
Wrapping type centre/side centre/side centre/side centre/side

380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding

Factory & Workshop &Warehouse

Company name HOOHA Co.,Ltd
Established 2003
Main products upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location Humen Town,Dongguan City,Guangdong province.
Manufacturing Center 4000 sqm
Showroom More than 2000 sqm.


Cooperating with German spare parts and production software and using best quality materials and intelligent machine,

HOOHA's products maintain high quality with strongly competitive price.

380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding

Package

Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

Plywood frames and Stretch film are used to avoid breakage in transit.

FAQ

Question Answer
MOQ 1 set
Lead Time 30~40 working days since starting producing.
Warranty Time 1-year quality guarantee for the machine
Payment Terms 30% T/T in advance for production material, 70% in the period of shipment.
Installation
(3 choices )		 a. HOOHA's Chinese installation team.
b. HOOHA's overseas installation co-partners in your country.
c. DIY Guide: HOOHA supports online guidance.
How to Start Contact us and leave your contact email and phone number.

Why choose us?

1. We are the cable equipment manufacturer.

2. Professional engineer,long-term to research and development for to cable equipment .

3. High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

4. Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

5. Technical support and spare parts service.

6. Well-experienced in overseas to support customer with technical,training,operating.

7. Responsible and Good communication and customer service skills,and save time and human cost for customers.

8. Complete Foreign Trade Team.

9. Working efficiently,quickly response to customer needs.

380v 50hz Wire Stranding Machine Cantilever Single Twist Machine For Core Wire Stranding
