Specifications
Brand Name :
HOOHA
Model Number :
RG6
Certification :
CE ISO
Place of Origin :
Guangdong，China
MOQ :
100000 m
Price :
0.4 USD/m
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Million Meters Per Year
Delivery Time :
5-20 working days
Packaging Details :
Customized
Capacitance :
45±2 pF/m
Inner Conductor :
1.02 Bare Copper / CCS
Type :
RG6
Insulation withstand Voltage :
1KV
Jacket Spark Voltage :
2KV
Minimum Bending Radius :
34(indoor)mm
Minimum Bending Temperature :
-10 ºC
Installation Temperature :
-10~+50 ºC
Insulation :
4.80
Description

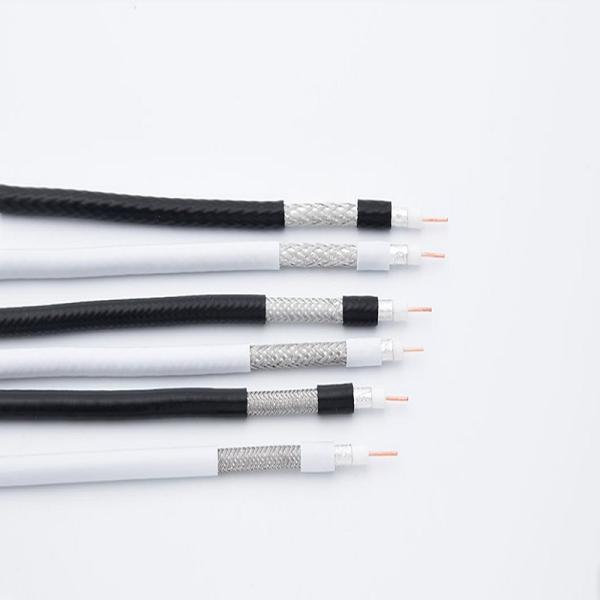

Outdoor CATV, CCTV System RG6 Coaxial Cable high quality Wire and cable

More information :
Youtube:https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
Product Description

1. Usage

Used as a distribution cable for Outdoor CATV, CCTV systems and as a connection cable for satellite systems.

2. Details

Model Number : RG6 Coaxial Cable
Certification : CE/RoHS
Inner Conductor : 1.02 Bare Copper / CCS
Dielectric : 4.57- 4.80mm FPE
Out Conductor : Al Foil +70%, 90%, 95% Braid
Braid Material : Al-Mg, CCA, BC, TC
Out Jacket : 6.80 - 7.0mm PVC/PE
Color : White, Black or Customized
Connector : F connecor or BNC

Type : Coaxial
Model : RG6

Number of Conductors : 1

3. Application

Wire and Cable Electrical Outdoor CATV CCTV System FPE Dielectric RG6 Coaxial Cable in Cable Manufacturing

4.Electrical Properties

Capacitance pF/m 45±2
Velocity % 86
Insulation Resistance MΩ·km >5000
Cut-off Frequency GHz 3
Insulation withstand Voltage KV 1
Jacket Spark Voltage KV 2
Attenuation (dB/100m) 50MHz ≤9.0
100MHz ≤10.8
200MHz ≤11.8
800MHz ≤19.00
1000MHz ≤20.0
Shielding Effectiveness (dB) 55MHz ≥55
300MHz ≥60
1000MHz ≥65
Return Loss (dB) 5~470MHz ≥20
470~862MHz ≥20
862~2200MHz ≥18

Wire and Cable Electrical Outdoor CATV CCTV System FPE Dielectric RG6 Coaxial Cable in Cable Manufacturing

5.Construction & Performance

Construction Conductor Material Copper Clad Steel
Diameter(mm) 1.0±0.02
Insulation Material Foaming PE
Diameter(mm) 4.80±0.10
Outer Shield Material AL foil+AL/mg wire braiding
Density 61%
Diameter(mm) 5.40±0.10
Performance Minimum Bending Radius mm 34(indoor)
Minimum Bending Temperature ℃ -10
Storage Temperature ℃ -10~＋75
Installation Temperature ℃ -10~＋50
Operating Temperature ℃ -10~＋75


Wire and Cable Electrical Outdoor CATV CCTV System FPE Dielectric RG6 Coaxial Cable in Cable Manufacturing

6.What can HOOHA provide

1.Professional and customized cable and die casting solutions

2.Suggestions and guidance of the overall cable factory operation

3.Overseas on-site installation and operation instruction

4.Cost accounting service of overall production operation

5.Talent delivery and training service

6.Lifetime after-sales online consultation service

7.Maintenance, reconstruction and upgrade services of the overall equipment

8.Additional support, such as raw material or accessories supply and suggestions, etc.

The Technical Team
Hu,machine designer
Wen,plant engineer
Chen,senior engineer
Team of service
Name
education
Position
Mainly responsible for project
Specializing in project
Industry working history ( year )
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
xioahua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Chnaghong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
haipin Li
University
Engineering director
Marketing and sales
project consulting
8
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5

Customer Cases
HOOHA provides technical support to overseas customer
Dubai
Algeria
Syria
Egypt

Packing & Delivery
Packing with carton box
Packing with wooden case
Packing with PE plastic
1. film packing 2. wooden package 3.enclosed wooden package
