OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera
Specifications
Brand Name :
HOOHA
Model Number :
RG6+2DC
Certification :
CE ISO
Place of Origin :
Guangdong，China
MOQ :
100000 m
Price :
USD 0.4/M
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Million Meters Per Year
Delivery Time :
5-20 working days
Packaging Details :
Customized
Model :
RG6 with Power Cable
Color :
Optional
Connector :
TRS Jacks
Material Shape :
Round type
Wire Core Material :
Bare Copper Wire
Style :
OEM
Specification :
RoHs/CE
Packaging Material :
PE Foam/Boxes
Coverage :
PE/PVC
Shield :
Copper Foil，Al Foil
Conductor Material :
Bc/Tc/Cu/Ccag/CCS/CCA
Application :
Communication Cable, Coaxial Cable,LAN Cable
Description

Camera CCTV Antenna Cable Power Cable Rg Series 75 Ohm RG6 +2DC

1. Description

Model NO.:RG6+2DC
Shield:Al Foil,Copper Foil

Trademark:OEM
Type:Coaxial Cable

Braiding Material:Al, CCA,Cu, Tcu etc.
Braiding Coverage:30%, 45%, 60%, 80%, 90% etc.

Application:Local Communication Cable, Coaxial Cable,LAN Cable
Conductor Material:BC/CCS/CCA/TC/CU/CCAG
Transport Package:Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box

Cover Material:PE/PVC
Model:RG6 with Power Cable
Wire Core Material:Bare Copper Wire
Certification:CE, ISO,RoHS, CPR

Inner Conductor:CCS,Cu,CCA,Tc
Insulation:PE,Foaming PE
Jacket:PVC, PE
Color:White, Black, Yellow,Green etc

Material Shape:Round Wire
Conductor Type:Solid

OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera

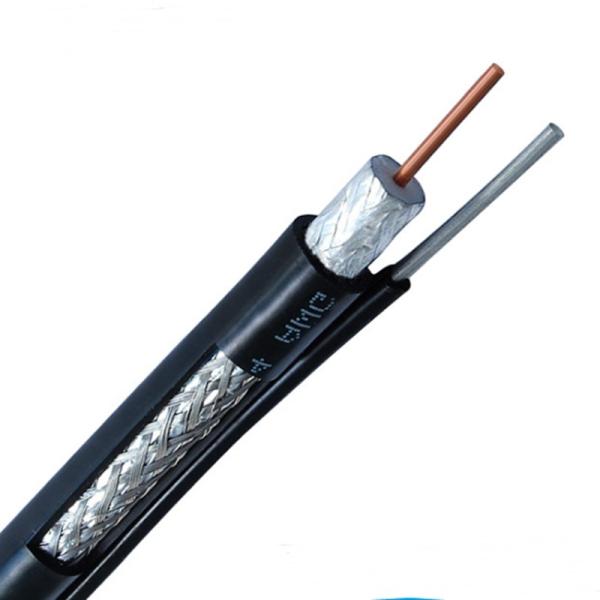

2. Construction

(1)Center Conductor:1.02±0.01mm BC
(2)Dielectric: 4.57±0.10mm FPE
(3)Braid: Al Foil + 64*0.12mm Al/Mg
(4)Jacket: 6.80±0.20mm PVC
(5)Power cable: 15*0.23CCA 1.70PE

OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera

3. Parameters

Options Parameters
Inner Conductor: BC/CCS/CCA/TC/SC Available
Dielectric: Foam PE/Solid PE
First Shield: Foil:Copper/ Aluminum Foil,(Un-bonded,Bonded,Double bonded, double un-bonded, Copper colored )
Second Shield: Al,CCA,BC,TC CCS Available
Wire Diameter:0.11,0.12,0.15,0.16mm Available
Braiding Net:32#,48#,64#,80#,96#,112#,128#,144#
Jacket: PVC/PE (black,white,color)

OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera

charactor
Impedance: 75+3 Ohm
Capacitance: 53+3pF/m
Velocity of Propagation: 85%
Return Loss: 20dB min (5-2300MHz)

OEM 75 Ohm RG6 2DC TRS Wire And Cable Products For CCTV Camera

Attenuation
Frequency (MHz) Maximum (dB/100 m)
5 1.9
55 5.25
187 9.35
350 12.63
550 16.08
750 18.54
865 20.01
1000 21.49
1450 26.37
1800 30.34
2000 31.82

4.Factory & Workshop &Warehouse

Company name HOOHA Co.,Ltd
Established 2003
Main products upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location Humen Town,Dongguan City,Guangdong province.
Manufacturing Center 4000 sqm
Showroom More than 2000 sqm.

6. Package and Tips

(1)Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll (10m,15m,20m,25,30m,50m,100m)
(2)Inner Packing: Wooden reel, plastic reel,paper reel,and gift box
(3)Outer Packing: Carton box, pully box, pallet available
Any packing available according to your request.
