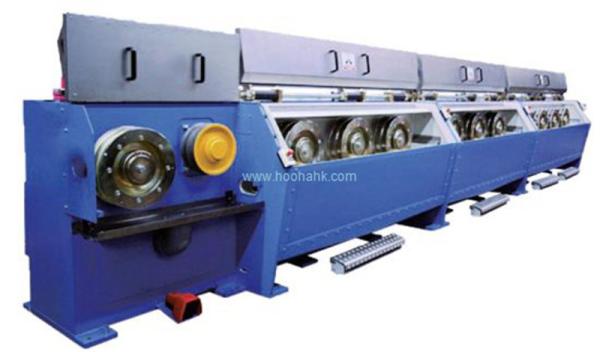

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
Specifications
Brand Name :
HOOHA
Model Number :
HH-D-400-9
Certification :
CE/ISO
Place of Origin :
Guangdong
MOQ :
1 set
Price :
US＄233500-236000/1set
Payment Terms :
L/C, T/T
Supply Ability :
1 set per month
Delivery Time :
60 Working Days
Packaging Details :
PE film wrapped, wood frame packed
Usage :
Rod drawing
Applicable material :
Copper or aluminum rod
Inlet diameter :
8-10mm
Finished wire diameter :
2.0-3.5mm
Mechanic speed :
1000-1500 m/min
Voltage :
380V or 415V 3 Phases
Power consumption :
AC 150-500 Kw
Dimension(l*w*h) :
27*5.5*5m
Weight :
24500kg
Condition :
New
After-sales service provided :
Lifetime maintenance and upgrade
Warranty :
One year after received
Main market :
Africa, Asia, East Europe
Description

8-10mm Copper and Aluminum Rod Drawing Machine with Factory Price

Application

The rod breakdown machine is capable of drawing wire down to diameters between 2.0 and 3.5 mm. Some 85 % of the material processed will serve as 1.8 mm input wire fed into our single and multi-wire drawing lines.

It largely goes into payoff packs with a maximum capacity of approximately 1.5 to 2 tons, with a particular focus on optimizing the winding quality.
Youtube Video Reference: https://www.youtube.com/watch?v=rg227TjsMno

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min

General Parameters

1 Raw materials Hypoxia/Anaerobic round copper rod or aluminum alloy rod
2 Inlet Rod Diameter 8-10mm
3 Outlet Wire Diameter 2.0-3.5mm
4 Number of Dies 9
5 Main Motor Power AC 200 KW
6 Annealing Power AC 320 KW
7 Production Speed Max 1500 M/Min
8 Voltage 380KV, can be customized
9 Weight 24500 KG
10 Measurement (L*W*H) 27*5.5*5 M

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min

Main Components

No. Name Qty.
1 Pay off Stand 1 set
2 D-400-9 Drawing Machine 1 set
3 TH5000 Annealer 1 set
4 YG400 Tension Rod 1 set
5 SN630-2 Take up 1 set
6 Operation Panel 1 set
7 Electrical Control System 1 set
8 Pointing Machine 1 set
9 Welding Machine 1 set

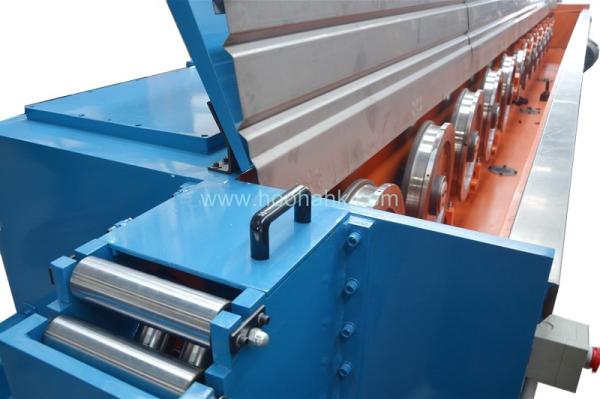

1. Host Drawing Machine

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min

1 Suitable materials Anaerobic round copper rod and aluminum alloy rod
2 Inlet Wire Dia.(mm) 8-10mm
3 Outlet Wire Dia.(mm) 2.0~3.5mm
4 Mechanics Speed(m/min) 1000-1500
5 Capstan Dia.(mm) Front 5 pcs 500mm, Rear 7 pcs 400mm
6 Constant Speed Capstan Dia.(mm) 450mm
7 No. of Dies(Channel) 9
8 Dies Outlet Size(mm) 50mm
9 Mechanics Elongation (%) 15-41
10 Main Motor Power(KW) AC200
11 Constant Speed Capstan Motor (KW) AC55
12 Lubricant Pump Motor(KW) 4
13 Drawing Coolant Mode Full Immersion
14 Dimension(mm)L×W×H 9000×1800×1200
15 Machine Net Weight(kg) About 17000


2. Annealing Machine

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min

1 Wire Size range of Annealing(mm) 1.2~3.6
2 Annealing Mode Contact mode DC annealing
3 Max. annealing DC current (A) 5000
4 Max. annealing DC voltage (V) 60
5 Dehydration Die Dia. (mm) 55
6 Capacity of annealer transformer (KVA) 425
7 Power of Steam Generation (KW) 18
8 The amount of steam (Kg/h) 20
9 Dimension(mm) L×W×H 4250×1200×2500
10 Machine Net Weight(kg) About 4500


3. Take-up Machine

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min

1 Max. Coiling Speed(m/min) 1300
2 Dia. of Wire Take Up(mm) 1.2~3.6
3 Coiler Basket Dia.(mm) 800
4 Size of Take up Φ630mm
5 Take Up Motor(kw) AC 18.5
6 Transport Reel Motor(kw) 0.75
7 Dimension(mm) L×W×H 4280×3800×4550
8 Machine Net Weight(kg) About 5000

Drawings

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
​

Packaging & Shipping

For normal way, clear PE film wrapped, wooden frame packed for small parts, loaded into container and shipped by sea. Special packaging way could be discussed.
​Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min

Our Advantages

Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
​

Our Focus

1.Design. Our engineers keep study in industry and work with sales to know more about market, then update our machines to be easy-operated and high productivity.
2.Quality. We always emphasis quality at the first place. This is why we can get well developed since established.
3.Customers' success. Hooha not only focuses on the sales of machines, but also pays high attention to the our customers' development. We pursue growing together with customers by providing long-term and full-range support to help them achieve success.
4.Supply more environment-friendly products, like power saving and low noise wire and cable machines.
5.Feed back to the community and help more people.
Annealer 3.5 mm Copper Aluminum Rod Wire Drawing Machine 1500M/Min
​

FAQ

Q1:What is your main brands for the electrical and mechanical parts?
A:Oversea famous brand parts such as Germany Siemens motor, Japanese NSK bearing and Yaskawa inverter etc.
Q2:What is your advantage compared with other suppliers?
A:What we can offer to our clients is not only the machine itself, but also offer: factory design, production process design, talent training, assist machines and raw materials. We provide the support in the entire industry chain for our clients as long as you need.

Q3:What's the payment terms?
A:T/T or L/C, 50% deposit and 50% balance before delivery, can be discussed also.

Q4:How long for the guarantee?
A: 12 months and charge for maintenance and upgrade in the whole life.

Q5: Do you have a video to show the machine running ?
A. Yes, you can visit our youtube channel : tiezhong chi.
