450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
450V 750V Electric Wires With Al Copper Conductor
Specifications
Brand Name :
HH
Model Number :
2+1
Certification :
CCC,CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
10000 meters
Price :
1 USD/meter
Payment Terms :
L/C, T/T
Supply Ability :
10000 Kilometer/Kilometers per Year
Delivery Time :
7-10 days
Packaging Details :
drum/coil
application :
construction
Conductor Material :
Al & Copper, Alu & Copper
Jacket :
PVC/Nylon
standard :
ASTM, AS, BS, DIN, IEC, NFC,
voltage :
450 V /750 V
type :
2 earth wire + 1 copper
OD :
2 x 1.5 +1.5 copper
Description

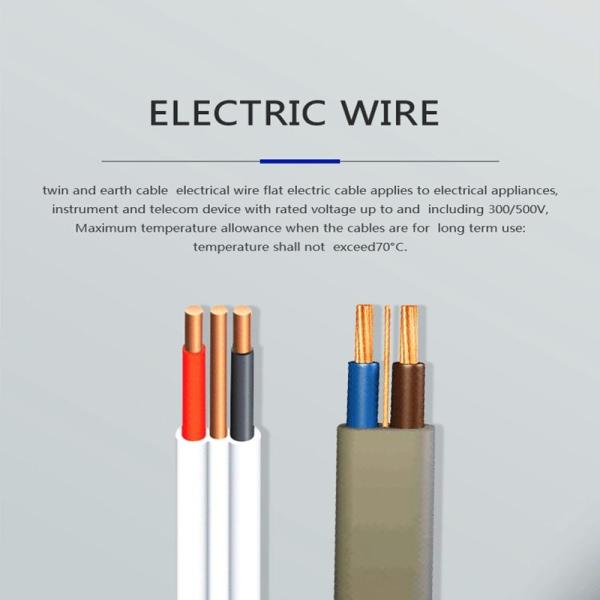

450/750v Al& Copper conductor wire cable power cable wire earthing

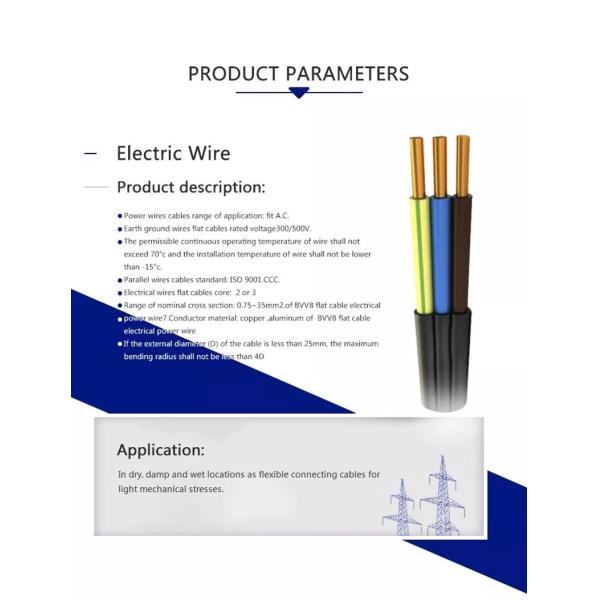

Power wires cables range of application

1.fit A.C. Earth ground wires flat cables rated voltage300/500V.

2.The permissible continuous operating temperature of wire shall not exceed 70°c and the installation temperature of wire shall not be lower than -15°c.

3.Parallel wires cables standard: ISO 9001.CCC.

4.Electrical wires flat cables core: 2 or 3

5.Range of nominal cross section: 0.75~35mm2.of BVVB flat cable electrical power wire7 .

6.Conductor material: copper ,aluminum of BVVB flat cable electrical power wire If the external diameter (D) of the cable is less than 25mm, the maximum bending radius shall not be less than 4D;

450V 750V Electric Wires With Al Copper Conductor

450V 750V Electric Wires With Al Copper Conductor

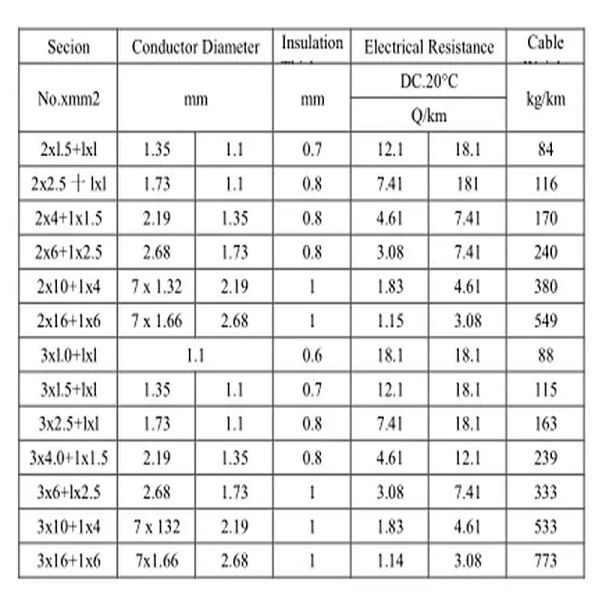

Paremeters

Conductor Class 1/2 Copper
Insulation PVC
use Electric Wire for House Hold Appliance
conductor copper

450V 750V Electric Wires With Al Copper Conductor

450V 750V Electric Wires With Al Copper Conductor

Packaging Details

1.packing in roll
2.packing in drum: 700*300*700
1100*400*800
1100*400*1100
1200*500*1100
3.Packing in Steel wooden drum: 1800*900*1100
1800*900*1100
2000*1000*1100
2200*1000*1100"

450V 750V Electric Wires With Al Copper Conductor

What is important to us ?

1.Quality, our engineers work with service colleagues.We are committed to enabling engineers to learn more about customer feedback from the service team.
2.Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries
3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.
4.Supply more environmentally friendly products.
5.Give back to the community and help more people.

450V 750V Electric Wires With Al Copper Conductor
