CNC Continuous Stripping and Ending Machine For Stripping and Terminal Pressing in One Action
CNC Continuous Stripping and Ending Machine For Stripping and Terminal Pressing in One Action
CNC Continuous Stripping and Ending Machine For Stripping and Terminal Pressing in One Action
CNC Continuous Stripping and Ending Machine For Stripping and Terminal Pressing in One Action
Specifications
Brand Name :
HOOHA
Model Number :
HH-1.8TS
Certification :
CE ISO RoHS
Place of Origin :
Guangdong,China
MOQ :
1
Price :
USD3257
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10sets/per month
Delivery Time :
60
Packaging Details :
PE PLASTIC
Model :
HH-1.8TS
Work capacity :
Uninterrupted wire stripping and terminal pressing
Power :
AC 110/220V 50Hz/60Hz single-phase
Motor :
40W Terminal machine 1/3HP; stepping motor in stripping part: 40W
Capacity :
1.8Ton
Stroke :
30mm
Stripping length :
2--6mm
Air pressure :
5-8kgf (need clean and dry air)
External dimensions :
440x500x2800mm
Weight :
90kg
Description
Product Information

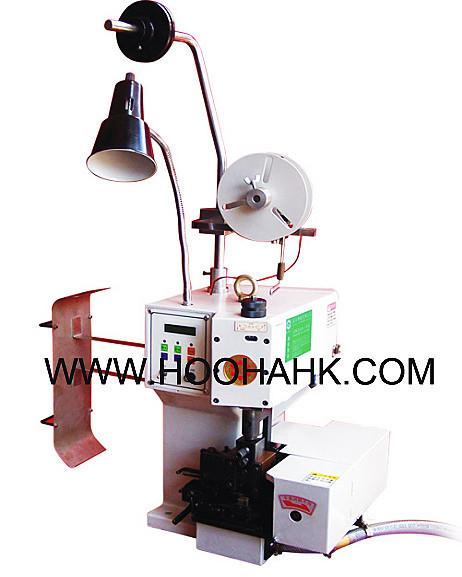

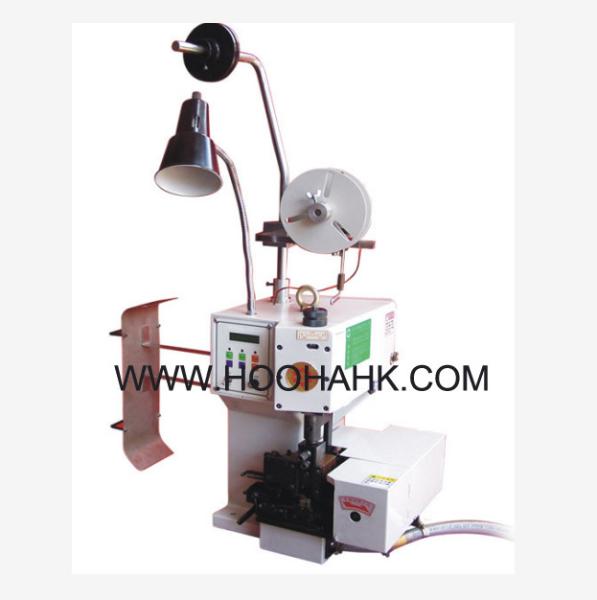

HH-1.8TS CNC Continuous Stripping and Ending Machine
Wire stripping and terminal pressing are done in one action. The combination of cassette type die holder and stripping system makes the machine achieve continuous action.
Feature Descriptions
1.The stripping system is driven by stepping motor, instant start can produce high torque effect.
2.The stripping system is designed with automatic, manual and automatic return functions.
3.Standby time can be adjusted: it can be adjusted according to the wire and terminal requirements, and the time for the stripper to return to the position after the terminal riveting is completed.
4.Use convex transmission method to complete the stripping and knife depth, high stability.
5.Terminal riveting tightness can be adjusted by the machine above the fine-tuning rotation, the adjustment accuracy of 0.02mm per frame.
6.With the design of extracting wire scraps and rewind device.
Specifications
Model
HH-1.8TS
Work capacity
Uninterrupted wire stripping and terminal pressing
Power
AC 110/220V 50Hz/60Hz single-phase
Motor
40W Terminal machine 1/3HP; stepping motor in stripping part: 40W
Control mode
It can manage automatic stripping and terminal pressing, separate terminal pressing and separate stripping.
Capacity
1.8Ton
Stroke
30mm
Stripping length
2--6mm
Air pressure
5-8kgf (need clean and dry air)
External dimensions
440x500x2800mm
Weight
90kg
Samples

Company Profile

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cablesolutions.
Technical Team

Hu,machine designer

Bi,general engineer

Wen,plant engineer

Name
Education
Position
Mainly responsible for project
Specializing in project
Working history ( year )
Zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
Xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
Xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
Lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
Zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
Jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
Xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
Changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
Haipin Li
University
Engineering director
Marketing and sales
project consulting
8
Sen Yang
University
Engineering translator
Marketing and sales
project consulting
5
Customer Cases

Customer in Algeria

Customer in India

Customer in South Korea

Customer in Egypt

Customer in America

Exhibitions ＆ Certifications

Exhibition in Thailand,2019

Exhibition in India,2018

Exhibition in Shanghai,2014
Packaging and Delivery

Packing with Wood

Packing with Carbon

Packing with PE Plastic

Shipping

Arriving

FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%),
There are 5-10 professional workers in HOOHA.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After
service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

6: Do you have a video to show the machine running ?
A. Yes , we have,our youtube channel :https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow

Applicable scope of processing wire diameter
mm2
0.013
0.03
0.05
0.08
0.1
0.2
AWG
36
32
30
28
26
24
mm2
0.3
0.5
0.9
1.3
2.0
3.0
5.0
AWG
22
20
18
16
14
12
10
