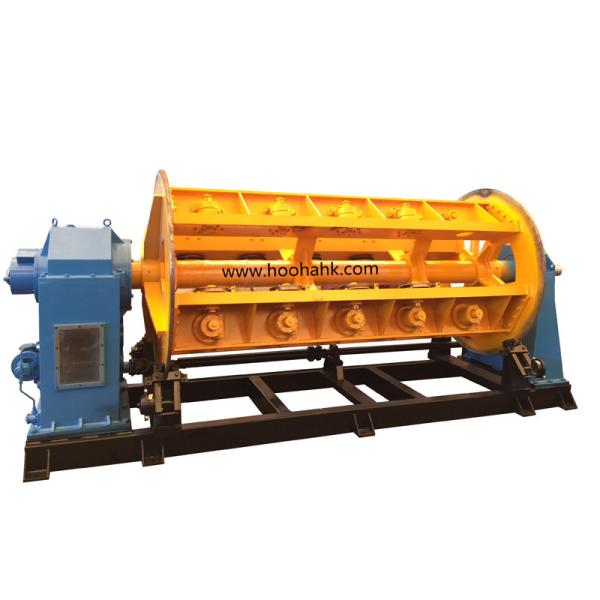

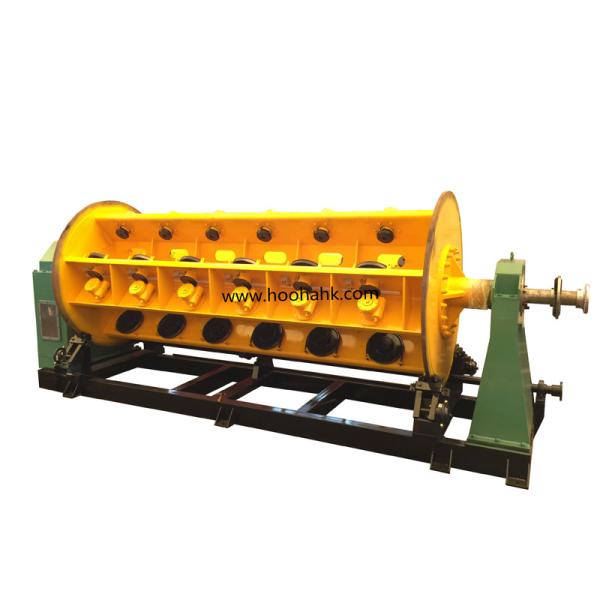

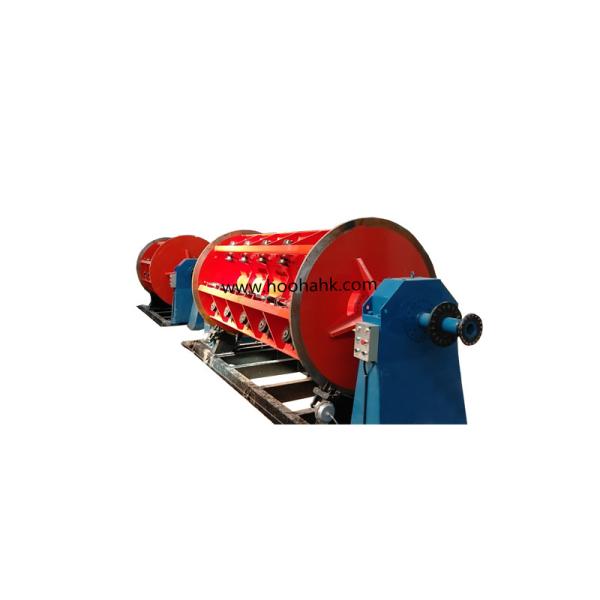

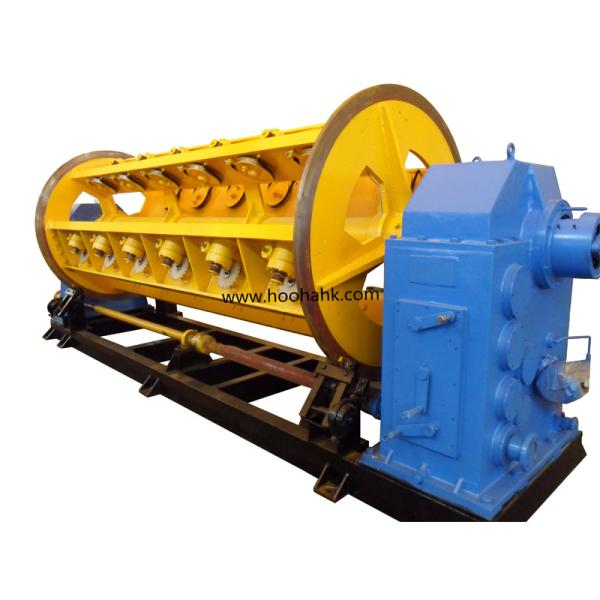

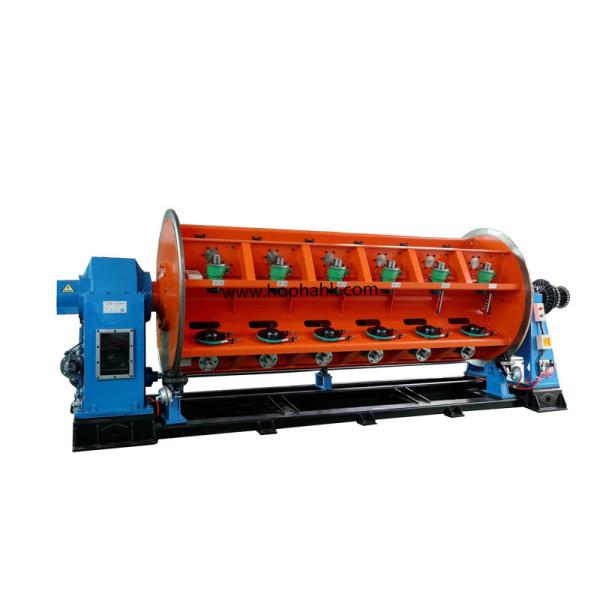

High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
High Speed Rigid Stranding Machine for Electrical Cable Production Line Cable and Wire Strander machine
Specifications
Brand Name :
Hooha
Model Number :
HH-630-12+18+24
Certification :
ISO, CE, SGS
Place of Origin :
Guangdong, China
MOQ :
1unit
Price :
USD95000/unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1unit30days
Delivery Time :
60days
Packaging Details :
film/wooden package
Usage :
Stranding
Single wire Diameter :
1.5 - 5mm
Max stranded Diameter :
45mm
Max cage rotate speed :
12B:140RPM 18B:125RPM 24B:110RPM
Capstan wheel diameter :
2000 mm
Central pay-off bobbin :
800-1600 mm
Pay-off bobbin in cage :
630 mm
Description
Product Description
Application:
This machine is mainly used for stranding copper and aluminum wires with 1+6+12+18+24 structure.
It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum
alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped
conductor stranding. The equipment adopts 36-stage traction variable speed gear box, dual active and dual traction devices.
Trait:
1. Design the top hole of special machine processing frame to ensure the concentric degree of two holes so as to avoid the concentric problem affecting the tension;
2. Optimized clamping structure, more stable pneumatic tension, more reliable clamping bearing;
3. Newly added upper disc mechanism at the lower hydraulic side enriches the upper disc varieties;
4. The newly added electric clamping mechanism enriches the clamping form.
Item
Unit
HH-500
Stranding-single wire Dia.
mm
Copper
Ø1.5~4.5
Aluminum
Ø1.8~5.0
Max. section area
mm2
Copper
500
Aluminum
630
Cage rotating speed
r/min
63~148
Hauling line speed
m/min
6.87 ~ 52.2
Stranding pitch
mm
47 ~ 825
Capstan Dia.
mm
Ø 2000*2
Central payoff bobbin size
mm
PN1600
Payoff bobbin size in cage
mm
PND500
Takeup bobbin size
mm
PN 2500
Machine center height
mm
1000
Main motor power
KW
55
Item
Unit
HH-630
Stranding-single wire Dia.
mm
Copper
Ø 1.5~4.5
Aluminum
Ø 1.8~5.0
Max. section area
mm2
Copper
300
Aluminum
400
Cage rotating speed
r/min
6 Bobbins
75~174
12 Bobbins
67~156
18 Bobbins
57~133
24 Bobbins
48~112
30 Bobbins
43~100
Hauling line speed
m/min
6~45.6
Stranding pitch
mm
34~1041
Capstan Dia.
mm
Ø 2500*2
Central payoff bobbin size
mm
PN1600
Payoff bobbin size in cage
mm
PND630
Takeup bobbin size
mm
PN2000
Machine center height
mm
1000
Main motor power
KW
45
The wire samples
The machine is used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables.
Company Profile
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
The Technical Team

Chen Senior Engineer
Machine design for 30 years

Hu Machine Designer
20 years engineering design experience

Bi Head Engineer
Responsible for project engineering

Why choose us?

1. We are the cable equipment manufacturer.
2. Professional engineer, long-term to research and development for to cable equipment .
3. High frequency capacity manufacturer machine is provide. Guarantee the machine all weather running .
4. Our machine use the international qualified brand, like Siemens, Omron, NSK, Lg, etc.
5. Technical support and spare parts service.
6. Well-experienced in overseas to support customer with technical,training,operating.
7. Responsible and Good communication and customer service skills,and save time and human cost for customers.
8. Complete Foreign Trade Team.
9. Working efficiently,quickly response to customer needs.
Professional Engineers and Experienced Sales Team
Name
Education
Position
Mainly responsible for project
Specializing in project
Working history ( year )
Zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15
Xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25
Xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15
Lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16
Zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15
Jinxin Liu
college
Marketing engineer
After service
electrical engineer
7
Xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10
Changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10
Haipin Li
University
Engineering director
Marketing and sales
project consulting
8
Sen Yang
University
Engineering translator
Marketing and sales
project consulting
5
Our professional sales and engineering team
Customer Cases
HOOHA provides technical support to overseas customer service
Dubai
Algeria
Syria
Egypt
Pre-sale
1.Professional engineer team provide customized design and machine arrangement drawing service 2.Professional engineer team can
visit customers's company in person and provide face-to-face service 3.Professional trading system provide high-efficient communication 4.Professional sales team including pre-sale staffs,after-sale staffs,order supervisor,shipping managers, finance
managers,cable. making engineers would give you more detailed consultant service.
Mid-sale
1.Professional follow-up system ensures high-quality service including live production video shooting,etc. 2.Quality control system with professional engineers ensures project goes smoothly.
3.Quality checking will be provided with professional quality
inspection report before machine delivery.
After-sale
1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training.
2.Free online consultance service. 3.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
4.Extend service support, such as raw material or accessory suggestions etc.
Exhibitions ＆ Certifications
2018 Bombay, India Fair
Our company took part in Bombay Exhibition in 2018
Russia Exhibition
The communication of Russia exhibition
2019 Thailand Exhibition
A successful interchange at the Exhibition in Thailand
2020 International Cable & Wire Fair
The Shanghai exhibition is gain a lot
Our Certificate
Packaging and Delivery

The raw material packing


1.The CCA copper will packing anti the oxidation way
2.The PVC/PE/FEP packing will use the paper box and wood packing
3.The tape also use the paper box add wood package

The machine packing

1.usually use the PE foam package
2.The base need wood package
3.The tape will fixed the machine on the container

The machine package arrange


1.The machine will arrange the drawing of each machine on the container before loading
2.save the space for our client
3.ensure the machine delivery 100% safty
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2017
* HOOHA products sell to
Africa(17.00%)
Mid East(17.00%)
Southeast Asia(16.00%)
Eastern Asia(13.00%)
South Asia(10.00%)
South America(8.00%)
Eastern Europe(4.00%)
North America(3.00%)
Northern Europe(3.00%)
Southern Europe(3.00%)
Oceania(2.00%)
Western Europe(2.00%)
Central America(2.00%)
2.What can you buy from us?
Drawing Machine
Cabling Machine
Bunching Machine
Stranding Machine
Extrusion Machine
Wrapping and Packing machine
3. How can we guarantee quality?
Always a pre-production sample before mass production
Always final Inspection before shipment
4. What services can we provide?
Accepted Delivery Terms:
FCA,FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency:
USD,EUR,CNY
Accepted Payment Type:
T/T,L/C,Credit Card,PayPal,Western Union,Cash
Language Spoken:
English,Chinese,Cantonese
5. What are our advantages over other suppliers?
10 year R&D working experience with over sea service
5 big LV/MV cable project over 5 million working experience
After service team has 30 country working experience
HOOHA team focus on the cable making and use solution supply chain.
