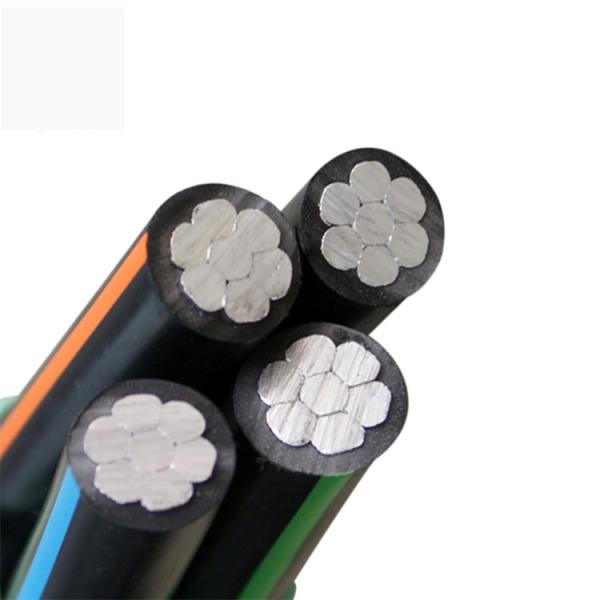

Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Specifications
Brand Name :
HOOHA
Model Number :
HH-ABC
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
10000meter
Price :
0.4USD
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000000000
Delivery Time :
30
Packaging Details :
drum packing
Name :
ABC Cable
Insulation Material :
XLPE/PVC/PE
Type :
LOW VOLTAGE
Cross Section :
185 mm
Type of conductor :
Stranded
Application :
overhead, Overhead,state grid,power station,
Jacket :
Bare
Conductor Material :
Aluminum
Brand :
Hooha
Number :
HH-ABC
Description

Company Profile
00:00
02:00
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Product Description
1.Application
ABC cables primarily used for 120 volt overhead service applications such as street
lighting.outdoor lighting.and temporary service for construction. To be used at voltage of 600 volts phase- to -phase or less and
at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90'C for crosslinked polyethylene(XLPE)
insulated conductors.
Covered line wire
Covered line wire is used primarily for overhead secondary distribution lines.It is not an electrically insulated conductor and is treated as bare conductor when installed.

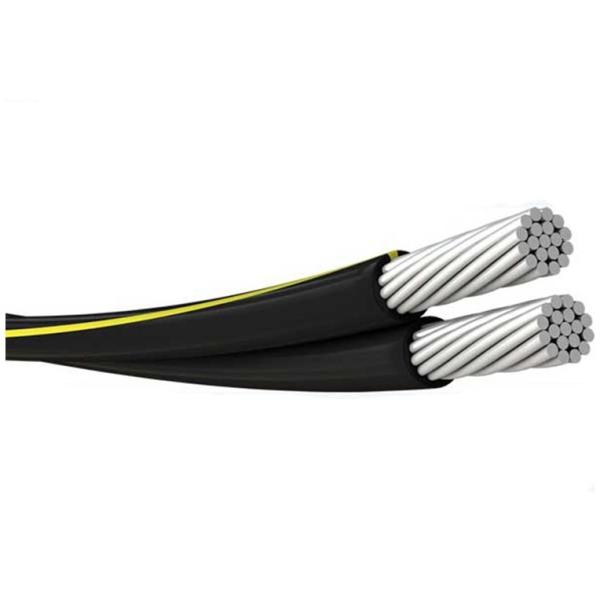

Duplex service drop
To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75 °C maximum.
Triplex service drop
To supply power from the utility’s lines to the consumer’s weatherhead. For service at 600 volts or less (phase to phase) at a conductor temperature of 75°Cmaximum for polyethylene insulation or 90°C maximum for cross linked insulation.
Messenger:

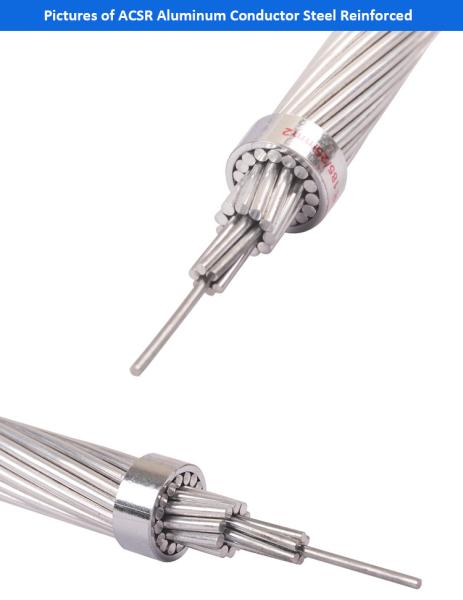

Duplex overhead aluminum wire has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.
Insulation:
Cables with duplex overhead service drop conductors have a black cross linked polyethylene ( XLP) insulation.
Triplex Service Drop Wire.
Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. The aluminum triplex
cable is an electrical cable meant for power distributions from the utility lines to the consumer’s premises through the weather
head. It has an operational voltage rating at 600 V and the maximum temperature rating of 75°C.
Messenger:
Aluminum triplex cable has a bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.
Insulation:
Triplex overhead aluminum wire has a black cross-linked polyethylene (XLP) insulation.
Specification
item
value
Place of Origin
China
City
Guangdong
Brand Name
Hooha
Model Number
HH-abc
Conductor Material
Aluminum
Insulation Material
XLPE/PVC/PE
Jacket
XLPE/PVC/PE
Number of Conductors
7
Application
overhead
Product name
ABC cable
Type
LOW VOLTAGE
Conductor Material
Aluminum
Type specification
10mm2 upto 240mm2
Neutral messenger
AAC,ACSR,AAAC
Insulation Material
XLPE/PVC/PE
Application
Overhead,state grid,power station,
Jacket
Bare
Type of conductor
Stranded
Cross Section
185 mm
Customer Cases
Tanzania
Algeria
Syria
Vietnam
Packing & Delivery
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
Aluminum aerial bundle cable 1 kV XLPE insulated ABC cable for overhead power line
1. Film packing 2. Wooden package 3. Enclosed wooden package
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
