Specifications
Brand Name :
HOOHA
Model Number :
HH-2
Certification :
CE/SGS/ISO
Place of Origin :
China
MOQ :
1
Price :
USD 1600
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
20 days
Packaging Details :
Wooden packing
Name :
Vertical length meter counter
Model :
HH-2
Weight :
50Kg
package size :
58X33X32 cm
Usage :
Testing
Display :
coils
Wheel number :
2
Type :
vertical
Color :
Customer Requirement
Warranty :
1 Year
Description
Company Profile

00:00

0:0

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.

Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Factory Picture
Product Description
Application:

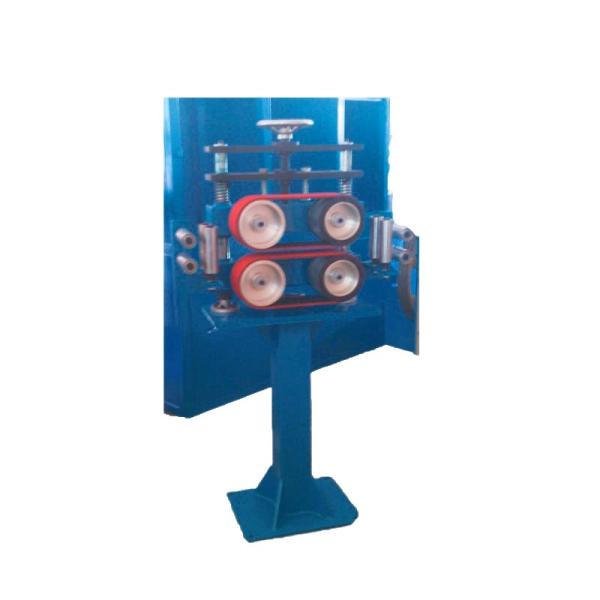

Belt type high precision meter counter is a special equipment used to measure the length of cables and other media. The tracked meter counter is dragged together after the measuring medium is clamped by the upper and lower tracks. The length of the crawler is the length of the measured medium. The length of the crawler track is the length of the pitch line that the crawler wheel turns, that is, the product of the crawler wheel pitch and the number of teeth. The encoder installed on the active crawler shaft measures the number of turns the crawler has turned. After conversion, the length of the medium can be obtained and recorded. The upper crawler is lifted up and down by the hand wheel and the screw rod, and the lower crawler is lifted up and down by the air cylinder. The lifting distance is determined by the outer diameter of the medium being measured.
Technical parameters
1. The measuring wheel diameter: 159.15 mmΦ
2. Measuring wheel width: 30mm.50mm.80mm.120mm
3. The product diameter: 1 mm - 50 mm Φ
4. Measurement speed: 200m/min
5. Measurement accuracy: error ≤0.3%
6. Encoder or induction can be used Compact structure
8. Track by upper and lower pair of wide synchronous gears
Upper pair of synchronous gear track automatic mechanical pressure adjustment
The following pair of synchronous gear tracks are rotary encoders mounted on the measuring shaft
9. Adjust leading wire access between front and rear rollers
10. Handle according to cable size
11. size: 600*260*1230 50kg

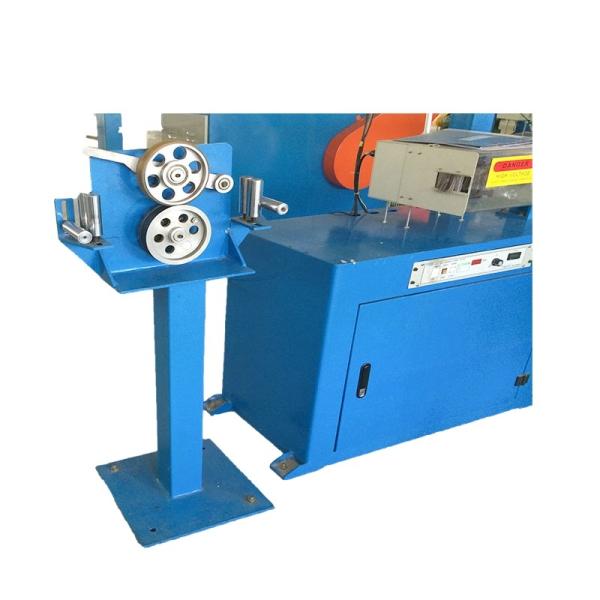

Measuring-meter platform
The surface of measuring-meter wheel shall be polished and be plated with hard chrome; a one-way bearing is installed in the measuring-meter wheel shaft to prevent the wheel from reverse rotation. The measuring-meter wheel is equipped with a rubber coated trace pressing wheel. The pressure of the trace pressing wheel can be adjusted; the photo-electric measuring-meter switch is applied for counting, with the error of measuring meter being ±0.5%.
Product parameter
product name
cable winidng machine
suitable for spool diameter
500/630/800/1000 (support customization)
suitable for cable diamater
1-20mm
speed adjustable
0-300m/min
Lifting way
hydraulic , electric, hand
Chucks way
Hand, pneumatic
traverse way
rolling ring drive
accumulator way
vertical accumulator
supply voltage
220/380V/ 240V
frequency converter
5.5kw/4kw/1.5kw
lifting motor
1. 5KW/ 0.75kw +RV Reduction drive
take up wire motor
5.5kw/4kw/1.5kw
Item
Value
Place of Origin
China
Guangdong
Brand Name
Hooha
Model Number
HH-2
Usage
Testing
Name
Vertical length meter counter
Weight
50kg
Usage
recorder
Color
Customer Requirement
package size
58X33X32 cm
Type
Vertical
Display
coils
Wheel number
2
Warranty
1 Year
Model
HH-2
Exhibitions ＆ Certifications
ShangHai Exhibition And Moscow Exhibition
Thailand Exhibition And India Exhibition
The Technical Team
Finance and Marketing department
Cheif engineer
Engineer department
Customer Cases
Algeria
Tanzania
Thailand
Packing & Delivery
Cable Extrusion Machine Vertical Length Meter Counter Length Measuring Cable Meter Counter Machine
Cable Extrusion Machine Vertical Length Meter Counter Length Measuring Cable Meter Counter Machine
1. film packing
2. wooden package
3. enclosed wooden package
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. Why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
