2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
Specifications
Brand Name :
HOOHA
Model Number :
HH-Teflon Cable
Certification :
CE/ISO
Place of Origin :
Guangdong
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set / 60 days
Delivery Time :
60 Working Days
Packaging Details :
PE film wrapped, wood frame packed as customer requiry
Condition :
New
Color :
As customer requires
Voltage :
380V 3 Phases or customized
Application :
Teflon Cable making
Cable size :
2-5 mm
Service :
One-stop
Main market :
Asia, Africa
Warranty :
12 Months
Description

Complete Set Teflon Cable Making Machine with Installation and Commissioning Service

2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

Usage:

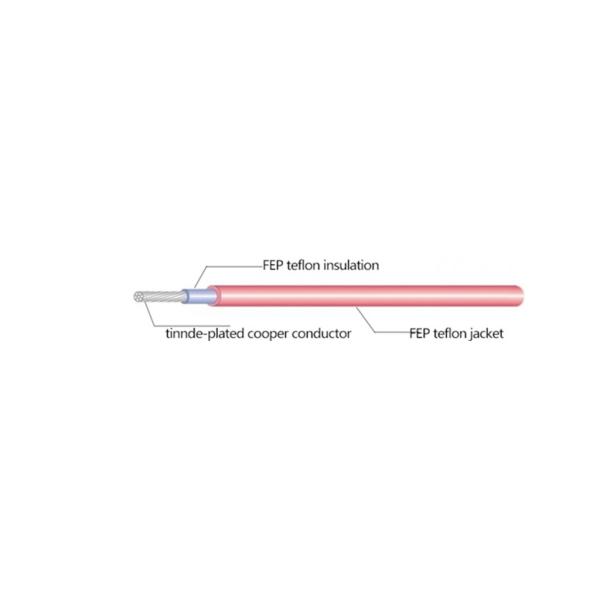

Polytetrafluoroethylene can be formed by pushing or extruding; it can also be made into a film and then cut into a shaft-mounted PTFE tape when used in high-temperature wires. It is used to produce high-frequency cables and directly made into water dispersion. It can be used for coating, impregnation or fiber making.

Polytetrafluoroethylene is widely used in industries such as nuclear energy, national defense, aerospace, electronics, electrical, chemical, machinery,instruments, meters, construction, textiles, metal surface treatment, pharmaceuticals, medical treatment, food, metallurgy and smelting etc. Corrosive materials, insulating materials, anti-stick coatings, etc. make it an irreplaceable product.

Production Process and Related Machines

1. Conductor Stranding---- HH-B-500 High Speed Bunching Machine

2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

2. Conductor FEP Insulation→

HH-E-35 Teflon Cable Extrusion Machine

2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

Components and Parameters

1. HH-B-500 High Speed Bunching Machine

Application:

It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.

Components:

No. Items Quantity
1 500 Bunching machine 1 set
2 Pay off stand multi-core copper wire 1 set

Parameters:

No. Items Value
1 Single wire diameter Ø0.08mm-Ø0.30mm
2 Stranding area 0.3mm2-2.5 mm2
3 Stranded wire length calculation How many meters per minute = twisting distance *2/1000* twisting bow speed per minute
4 Twisting pitch 5.66 - 39.37mm
5 Rotation speed of arched band Max: 2200RPM.
6 Spindle lubrication Use manual grease gun to inject oil

2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

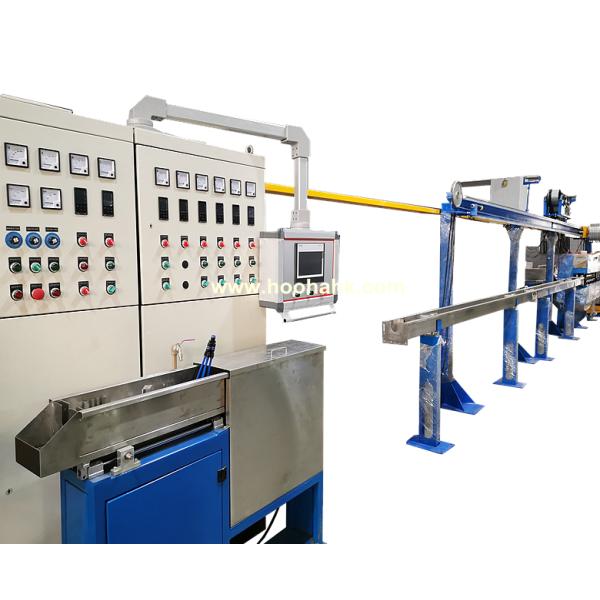

2. HH-E-35 Teflon Cable Extrusion Machine

Application:

This equipment is suitable for outer surface extrusion of Teflon wires and cables with insulation materials such as FEP, FPA, ETFE, PVDF.

Components:

No. Items Features
1 400-630 motorized pay-off stand 1 set
2 5-wheel Straightening device 1 set
3 Copper wire automatic sensor preheater 1 set
4 35 Teflon extruder 1 set
5 U7 non-adjustable head 1 set
6 Automatic drying and feeding machine 1 set
7 PLC Electric control box 1 set
8 1.5m Movable water tank with cover 1 set
9 Diameter tester 1 set
10 8m Fixed water tank 1 set
11 10 m Slide rail type + anode guide wheel storage rack 1 set
12 Dual-wheel capstan 1 set
13 Meter counter 1 set
14 High frequency spark tester 1 set
15 400-630 Double-head take-up machine 1 set
16 Spare parts

Parameters:

No. Items Features
1 Inlet Wire Diameter 0.3～2 mm
2 Finished Wire Diameter 0.5～3 mm
3 Cross Sectional Area 0.5～2.5 square mm
4 Extrusion Speed Max 150 m/min
5 Extrusion Capacity 50 kg/h
6 Installed Capacity 60 kva
7 Voltage 380KV, can be customized
8 Weight 3500 kg
9 Measurement (L*W*H) 23*3*3 m
10 Workers recommendation 3 workers

2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment
