Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine
Specifications
Brand Name :
HOOHA
Model Number :
500
Certification :
CE
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 unit
Price :
43750-45000 USD
Payment Terms :
L/C, T/T
Supply Ability :
10 units/month
Delivery Time :
30 working days
Packaging Details :
PE Foam
Application :
Pair twist
advantages :
triple times
Wire :
HDPE wire
line speed :
60 m/min
quality :
pass fluke
suitable :
UTP,FTP,S/FTP
Space :
one whole machine
market :
UAE,Iran,India,China
Description

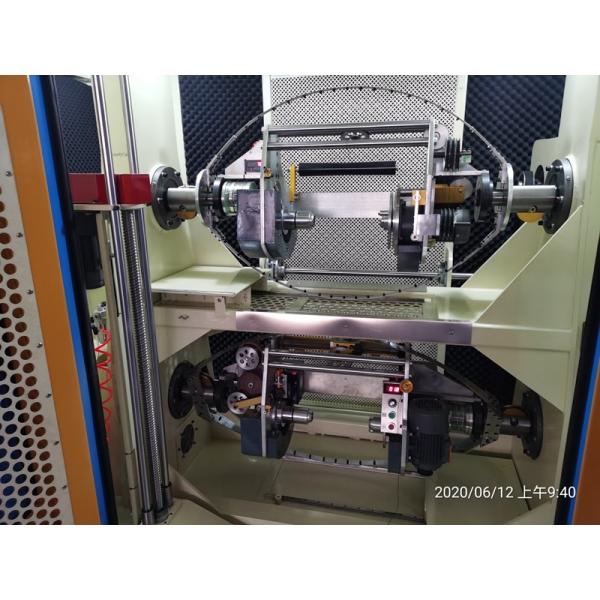

Lan cable CAT6 UTP,S/UTP,STP,S/FTP Triple Twisting Machine

1.Equipment composition

No Name
1 Upper layer: Single twist back machine
2 Down layer: Pair twisting machine

2. Performance

No Advantages
1 Applicable to the twisting of LAN cable, you can set the back-twist rate according to the requirements of the wire in the range of 0-100%, so that the wire can meet the requirements of CAT 5 and CAT 6 cables etc
2 Due to the unqualified raw materials, resulting in The ones that can't reach the test standard are not included in this range and the speed is increased by more than 30% compared with the previous back-twisting machine.
3 The back-twisting machine is set to 33%. The traditional twist-back pair twisting speed is assumed to be 1400 rpm, the pitch is 10MM, and the output per minute is 42 meters.
4 The triple twist is assumed to have a rotation speed of 2000 rpm and a twist pitch of 10 mm. And the output is 60 meters per minute.
5 Compared with the traditional model, the output of the triple twist machine is 30% more than the traditional output.

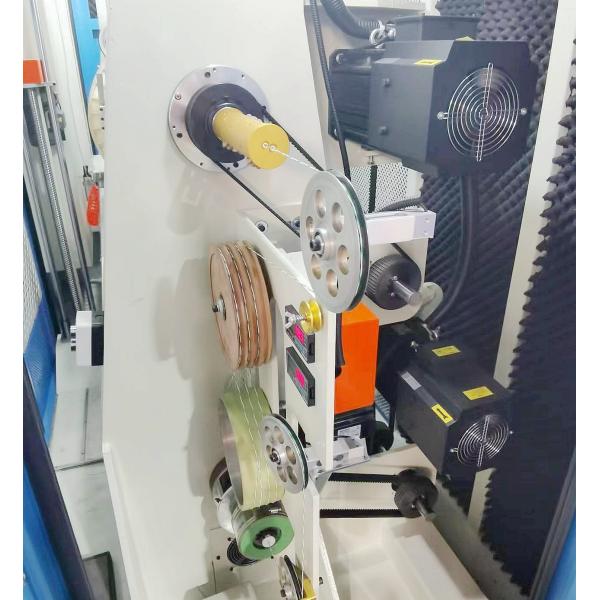

3. Single twist back-twist machine

3.1 External power pay-off

No Specification Parameters
1 Applicable drum Φ500mm*375*Φ56
2 Applicable wire production of insulated core wire
3 Applicable wire diameter 0.8mm-1.5mm
4 Wire tension when untwisted 0.6-3Kg
5 Max linear speed 130 m/min
6 Braking device motor and dancing wheel
7 Pay-off tension 0.6-3KG (tension is adjustable)

3.2 Internal rotary horizontal power pay-off

No Specification Parameters
1 Applicable drum Φ500mm*375*Φ56
2 Applicable wire production of insulated core wire
3 Wire tension when untwisted 0.6-3Kg
4 rotating speed of rotating object 2000RPM, actual use: 1800RPM
5 Max linear speed 130m / min
6 Power pay-off brake motor and dance wheel

Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine

4.Power

No Specification Parameters
1 Motor 7.5 HP + PG card tracking line speed, to ensure that the wire is within 2% mm of the set range

5.Extraction device

No Specification Parameters
1 type Horizontal
2 Cable tesnsion 3 Kg
3 Max linear speed 250 m/min
4 Diameter of extraction wheel Φ237.1
5 Type of extraction wheel multi-groove
6 Power 750W Vekoda motor + controller

6.Pair twist machine

No Specification Parameters
1 Application drum Φ500mm * 375 * Φ56
2 Maximum rotation speed 2000RPM (4000 twist),because the quality of the wire requires the test to pass, and the speed of the work is 1400RPM (4200 twist)
3 Maximum linear speed 130 m/min
4 Pitch 1mm-60mm
5 Maximum row pitch 10 mm
6 Main motor power 7.5 HP
7 Data display feedback to power pay-off or take-up motor correction
8 back torque rate maximum 100% (arbitrarily set within 0-100)
9 PLC Siemens

7.Production

1 Standard configuration: white body, black security door
2 Machine direction from left to right
3 Easily damaged items: carbon brush head, this piece is purchased by the buyer, the supplier provides samples and related information
4

Tool box , machine electric diagram , installation layout, operation manual
5 L x W x H=3.2 m x 1.6 m x 2 m
6 Weight : 4500 Kg

Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine

CAT6 cable making productivity
No Name Application Unit KW/Hr Unit /
Line speed(max)		 Capacity/8 hour QTY Suggest
1 PLC 50+35 PE insulation machine HDPE 55 kw 500 m/min 240,000 1
2 PLC 50+35 Chemical foaming insulation machine FOAM PE 60 kw 400 m/min 192,000 1
3 PLC 500 triple twist machine pair twist 10KW 60 m/min 28,800 2 4
4 PLC 800 Cantilever Twist Machine 4 pairs cabling 30KW 100 m/min 48,000 1
5 PLC 16 spindle braiding machine braiding 2 KW 10 m/min 4800 2 10
6 PLC 70 sheath machine Sheath 60KW 200 m/min 96,000 1
7 8 Figure Lan Cable Winding Machine 305 m/coil 5 KW 200m/min 96,000 1
A.CAT6,CAT6A U/UTP, 305 m/100 coil at 8 hours , if the PLC triple twist machine at 4 , can be 305m/160 coils a day .
B.CAT6A S/FTP 305 m/ 20 coils , if braiding to 10 units can be 305m/160 coils a day

Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine

Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine

1.Who are we?
Hooha company Limited is based in Hongkong, china.Factory is located in dongguan,China.Established in 2003, with 19 years of experience in wire and cable field trade.It only takes 1 hour from our company to guangzhou/shenzhen airport.

2.How can we guarantee quality?
1.Online inspect facotry,production,shipment,and aftersales services.
2.pre-production sample before mass production.
3.Highstandards and strict requirements, key accessories of cable equipment only use imported parts.
4.Mechnical parts gurantee 12months, elcctrical parts 12 months.
5.online communication,remote assistance,solve customer problem 24 hours,when the problem can not solved online,we will dispatch engineer to go aboard to the problem on-site for the customer.
3.What can you buy from us?
1.material for wire and cable
2.turkey project for wire and cable
3.extrusion line/bunching/twisting
machine for wire and cable
4.accessorries for cable equipments

4.How long is your delivery time?
1.Generally, 3-7 days for goods in stock
2.30 days for goods after realsing order.
3.project will take 60-90 days

5. Will the price be cheaper if the order is placed in bulk?
Yes,Of course,it will make 10%-12% discount

6.What services can we provide?
1.Plant solution and machine design.
2.technical support at machines and cable.
3.Installtion and commmsioning,after sales service.
4.Packaging customization 5.Customized,saving 10%-20% year-on-year cost

7.HOOHA cable equipment technical advantages
1.In order to ensure the high quality of products,we start from ensuring the accuracy of accessories, and the main accessories of products(Casing, end cover, shaft and wheel) they are all manufactured by CNC machining center,The main purchased parts are NSK Bearings from Japan,American gates belt,taiwan TTO Fluoro rubber oil seal,The working efficiency of the equipment is improved, the noise is reduced, and the service life of the equipment is extended to more than 10 years.
2.High precision dynamic balancing of all equipment rotors,The dynamic balance level is G1, reducing the unbalance to less than 1G, and the long-term operation is safe and reliable.
3.The bearing adopts double row cylindrical roller bearing and double row self-aligning roller bearing,compared with
the deep groove ball bearing, the bearing has high fatigue strength, long service life, stable operation and small vibration.
