Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Bow Type Cable Laying Up Machine For Big Section Electrical Cable Manufacturing
Specifications
Brand Name :
HOOHA
Model Number :
HH-1000/1600
Certification :
CE/ISO
Place of Origin :
Guangdong
MOQ :
5 Sets
Price :
US＄$87,800.00-$87,700.00/1set
Supply Ability :
5 set/1 month
Delivery Time :
30 Working Days
Packaging Details :
1. film packing 2. wooden package 3.enclosed wooden package
Wire material :
Copper Aluminum
Type :
Stranding
Description
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HOOHA
Model Number:
HH-1000/1600
Usage:
Stranding
Type:
Stranding
Automatic Grade:
Automatic
Motor:
Germany-Siemens
Inverter:
Siemens
Wire material:
Copper Aluminum
Specification:
CE ISO
HS Code:
8479400000
Warranty:
12months
Transport Package:
Wood Package
After-sales service:
Overseas Service Provided
Supply Ability
Supply Ability
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. film packing
2. wooden package
3.enclosed wooden package
Port
SHENZHEN
Picture Example:
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Video Description
00:30
Specification
item
value
Place of Origin
China
Brand Name
HOOHA
Model Number
HH-1000/1600
Usage
Cabling
Type
Cable Laying-up Machine
Automatic Grade
Automatic
Motor
Germany-Siemens
Inverter
Siemens
Electric Element
Siemens and Omron
Specification
CE ISO
HS Code
8479400000
Warranty
12 months
Transport Package
Wood Package
Product Description
Bow Type Cable Laying-up Machine for Data Cable Making
Application:
The machine is suitable for stranding and lay-up various sizes and various specifications of 3-7 cores. This is mainly used for power cables,insulated cores, which can be round or sector.

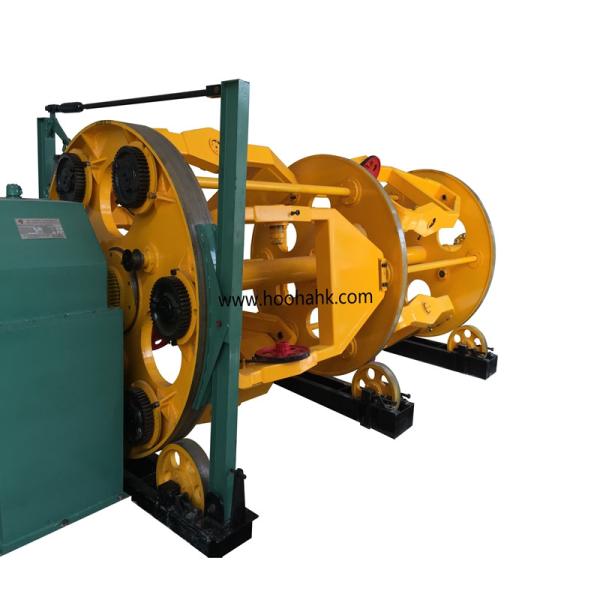

3/1000 Bobbin strand cage
1 Rotation speed range 17~42 r/min 2 Max single diameter 35mm 3 Bobbin outer diameter x shaft hole x outermost width 1000×80×750mm 4 Rotation speed grade 6 Grade, forward and reverse, neutral 5 Cage structure Cone-shaped 6 Transmission Ground shaft transmission 7 Tension Mechanical friction controlled 8 Function Twist the round wire when back-twist and twist the fan-shaped wire without back-twist 9 Back torsion Planetary gear set transmission back torsion, advanced electric Pre-twist online without stopping

2/1000 Center Pay-Off Frame
1 Bobbin outer diameter x shaft hole x outermost width 1000 x 80 x 750mm 2 Maximum Loading Capacity 3T 3 Structure Shaft structure with an electric lifting reel 4 Tension Mechanical friction controlled 5 Features Separate placement, not connected to the host

2500 Shaftless take-up frame
1 Take-up bobbin size PN1250-PN2500 2 Max load weight 16T 3 Traverse max diameter 60 mm 4 Take-up speed 40m/min 5 Take-up motor 8kg.m 6 Motor and gearbox Are mounted on the column slider 7 Traverse Independent type,save space and reduce the failure rate
The wire samples
It is mainly used for Data cable, HDMI cable, power cable, bare copper cable, shielding layer cable, control cable and other cables are multiple converged cables.
Company Profile
02:00
Hu Machine Designer
20 years engineering design experience
Bi Head Engineer
Responsible for project engineering
Chen Senior Engineer
Machine design for 30 years
Professional Engineers and Sale Teams
Name
Education
Position
Mainly responsible for project
Specializing in project
work year
zanyang Xie
college
General Engineer
The total project design and planning
power cable machine
15 years
xiaohua Hu
college
Vis general engineer
The total project design and planning
net cable,data cable machine
10 years
Changhong Cheng
college
Engineer
Drawings and after-sales service
Teflon,Optical fiber cable machine
25 years
xiuwu Chen
college
General Engineer
The total project design and planning
copper drawing machine
15 years
lixin Yuan
college
Engineer
The project design and planning
coppwer wire making technical
16 years
zhenghai Qiu
college
cable engineer
After service
cable making and cable factory management servie
15 years
jinxin Liu
college
Marketing engineer
After service
electrical engineer
7 years
xingguo Tang
High school
Electrical engineer
After service
electrical engineer
10 years
changqiang Li
High school
Maintain engineer
After service
machina maintain and install service
10 years
haipin Li
University
Engineering director
Marketing and sales
project consulting
8 years
sen Yang
University
Engineering translator
Marketing and sales
project consulting
5 years
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Exhibitions ＆ Certifications
2018 Bombay, India Fair
Our company took part the exhibition in India in 2018.
2019 Thailand Exhibition
Our company is attached to Thailand to participate in the exhibition in 2019
2020 International Cable & Wire Fair
Our company will participate in the Shanghai International Cables and Wire Wire Exhibition in 2020
CE Certification Incorporation Certification Cabex Certification SGS Certification
Customer Cases
Syria
Dubai
Egypt
Algeria
Huston, USA
Packing & Delivery
The raw material packing

1.The CCA copper will packing anti the oxidation way2.The PVC/PE/FEP packing will use the paper box and wood packing
3.The tape also use the paper box add wood package
The machine packing

1.usually use the PE foam package2.The base need wood package
3.The tape will fixed the machine on the container
The machine package arrange

1.The machine will arrange the drawing of each machine on the container before loading2.save the space for our client
3.ensure the machine delivery 100% safty
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,
sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%).
There are 5-10 professional worker in HOOHA.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
6.After service 1. Delivery dates: 45 days 2. Payment: TT or L/C 3. Packing: Plastic packing to ensure the goods safety on the transportation. 4. Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience. 5. After service phone number online
