Water Proof Heat Shrink Wire Terminals / Mini Cap Seal Pa Insulation
Water Proof Heat Shrink Wire Terminals / Mini Cap Seal Pa Insulation
Specifications
Brand Name :
KUAILI
Model Number :
Adhesive-lined
Certification :
ROSH
Place of Origin :
China
MOQ :
consult
Price :
consult
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
50000 per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Product Name :
Mini cap seal
Insulation :
PA
Shrink ratio :
3：1
Water proof :
100%
Fully shrink temperature :
135 ℃
Operating temperatures :
-55C to +105C
Description

AMC-D-1 Heat Shrink Tube Mini Caps, Adhesive-Lined Insulating Caps For Cables

AMC---MINI CAP

Specialized in providing mechanical and environmental protection for wire harness, the transparent type is convenient to check inside, the black color is flame retardant.

Characteristics:4:1 shrink ratio allows a few sizes to cover a wide range of splice and component diameters.
Mechanically tough jacket provides strain relief and abrasion protection.
Thick adhesive liner forms an effective barrier against fluids and moisture and performs well at an extended temperature range.

AMC-D

Length

Inside diameter Recovered wall thickness

Part

Number

 Size Nominal overall as supplied Minimum open barrel as supplied Minimum expanded as supplied Maximum recovered after heating Total wall after heating
AMC-D-1 1/8 22.0(0.87) 12.7(0.50) 3.2(0.125) 0.58(0.023) 1.22±0.15(0.048±0.006)
AMC-D-2 3/16 25.4(1.00) 15.2(0.60) 4.8(0.187) 1.52(0.060) 1.57±0.20(0.062±0.008)
AMC-D-3 1/4 28.4(1.12) 15.2(0.60) 6.4(0.250) 2.03(0.080) 1.98±0.20(0.078±0.008)
AMC-D-4 3/8 31.8(1.25) 18.3(0.72) 9.5(0.375) 2.29(0.090) 2.08±0.25(0.082±0.010)
AMC-D-5 1/2 38.1(1.50) 21.6(0.85) 12.7(0.500) 2.29(0.090)

2.54±0.25(0.100±0.010)

How to use mini caps?

This is mainly used for ends to objects exposed in the air.

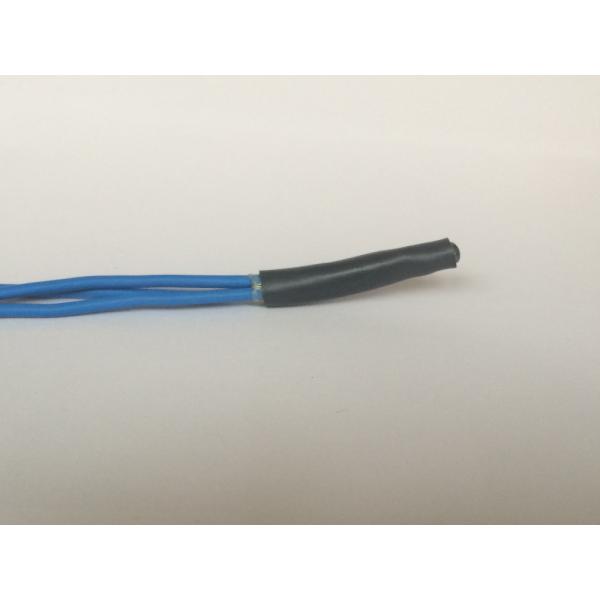

Water Proof Heat Shrink Wire Terminals / Mini Cap Seal Pa Insulation

One end is sealed with adhesive resin material.

Suitable size of cable goes another ends

Heating surface of mini cap until inside PA hot melt adhesive melts to cover and protect the cable tightly.

How to choose a suitable size?

Normally choose the biggest one which can cling on the device tightly.
The length of the cap can be customized.
