IP67 Heat Shrink Wire Terminals Splicing Wire , Operating Temperature -40 ~125 Degree
IP67 Heat Shrink Wire Terminals Splicing Wire , Operating Temperature -40 ~125 Degree
Specifications
Brand Name :
KUAILI
Model Number :
SST-SR
Certification :
ROSH
Place of Origin :
China
MOQ :
consult
Price :
consult
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
50000 per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Type :
Closed end connector
Color :
Green
Operating temperature :
-40 degree ~125 degree
Minimum shrink :
150 degree
Waterproof Level :
IP67
Description

SolderGrip closed end connector splices,High quality Heat Shrinkable Splicing Wire

Features and benefits

  • Soldered connection.
  • Electrical insulation.
  • Sealed for strain relief.
  • Simple installation.

Operating temperature range

  • Operating temperature: -40℃~125℃
  • Minimum shrink temperature: 150℃
  • Fully recovery temperature: 175℃
  • Starting temperature of solder melt: 138℃
  • Minimum fully recovery temperature: 160℃

Product Dimensions

Product

Name

Ball

Color

 Product Dimensions Copper Cross Section Bundle Diameter
L±3.5 ΦA B

Min

mm2(CMA)

Max

mm2 (CMA)

ΦD

max

M±1

(M±0.04)
SST-SR01 Green 38.3 3.6 +0.4/-0.2 26.0±2.0 0.7(1400) 2.4(4800) 3.3 15.0
SST-SR02 Red 37.7 5.0 +0.7/-0.2 23.5±2.0 2.0(4000) 4.0(8000) 4.5 15.0
SST-SR03 Blue 45.5 7.5 +0.9/-0.2 26.5±2.0 3.5(7000) 8.0(16000) 7.0 15.0
SST-SR04 Yellow 45.0 9.4 +0.9/-0.3 25.5±3.0 7.5(15000) 12.0(24000) 9.0 15.0

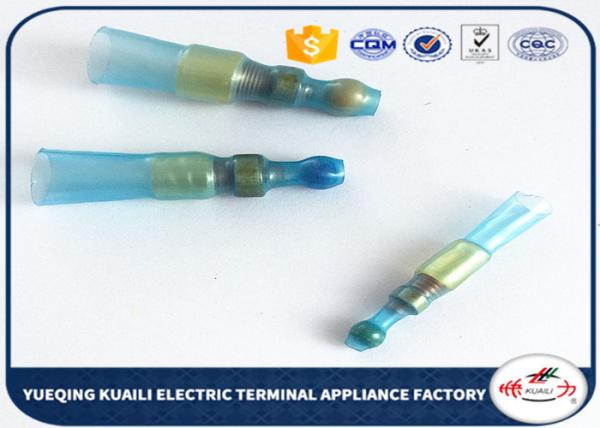

IP67 Heat Shrink Wire Terminals Splicing Wire , Operating Temperature -40 ~125 Degree IP67 Heat Shrink Wire Terminals Splicing Wire , Operating Temperature -40 ~125 Degree

Applications

  • SolderGrip heat-shrinkable solder-type closed-end connectors are designed for electrical termination of multiple-wire combinations. They provide a reliable alternative to crimping, welding, or conventional twist-on-style closed-end connectors.
  • Their unique combination of wire fixturing and controlled-soldering technology provides dependable electrical termination of multiple wire combinations.
  • SolderGrip terminators consist of a heat-shrinkable thermoplastic sleeve containing a spiral-wound copper insert. The insert is fitted with a prefluxed solder band.
  • This innovation design allows SolderGrip products to reliably terminate as many as 10 wires different sizes and types in a single device.
  • The capability of Solder Grip terminators encompasses single or multistranded.bare or tinned copper wires with low-or high temperature insulation.
  • The termination is environmentally protected and strain relieved.
  • SolderGrip splice terminators are color-coded for easy identification.
