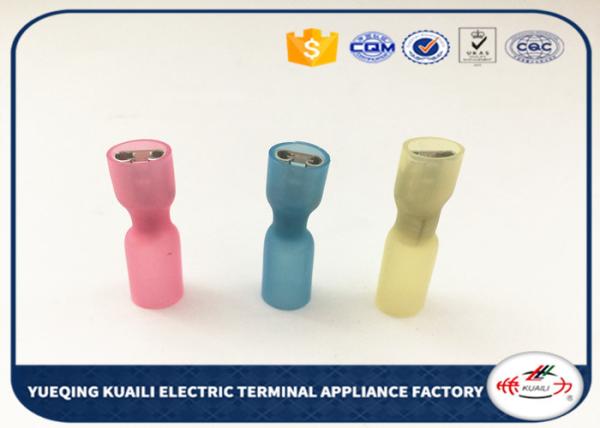

Female Heat Shrink Wire Terminals Electrical Crimp Terminal 22-10 AWG
Female Heat Shrink Wire Terminals Electrical Crimp Terminal 22-10 AWG
Specifications
Brand Name :
KUAILI
Model Number :
locking spade terminal
Certification :
ROSH
Place of Origin :
China
MOQ :
1000pcs
Price :
consult
Payment Terms :
D/A, D/P, T/T, L/C
Supply Ability :
50000 per week
Delivery Time :
5~30days According to the order quantity
Packaging Details :
100pcs/bag or as customer's requirement. Outer packing export carton with size is 45.3*25.8*19.8cm it depends on the goods.
Product Name :
heat shrink locking spade terminal
Material :
Copper/PE/Brass
Work temperatur :
-55℃~125℃
Fully shrink temperature :
130℃
Color :
Red/blue/yellow
Cable size :
0.5-6mm2
Description

Heat Shrink male Wire Connectors Electrical Crimp Terminal 22-10 AWG

Applications: the heat shrinkable tubing made of polyolefin, with adhesive lining for protecting splices from water, condensation, salt, and corrosion. Providing strain relief and against vibration in rugged environments, which completely insulates and protects electrical connections. It offer long-term performance, easy installation, and a low installed cost, which is more reliable than conventional splices.

Characteristics:Automotive/truck wiring repair and fleet maintenance

Automotive/truck/RV wire harness fabrication

Commercial wiring for pumps, pools and spas

Fleet maintenance & Marine electronics

Heat Shrink Insulated Male and Female Specifications electric supplies
1,Maximum Electric Rating:150.C 600V
2,Maximum Electric Current:22-16 AWG/0.5-1.5mm2:19A;16-14AWG/1.5-2.5mm2:27A;12-10AWG/4-6mm2:48A
3,Terminal Body:Copper/brass
4,Insulation:Heat Shrink Tube
5,Plating:Tin

Item No. Wire range
mm2/Awg		 Tab Size Dimension(mm/inch) Insulation
Color
C W L D
MDD 1.25-110(5) 0.5-1.5mm2
22-16AWG		 2.8 x 0.5 1.7 2.75 30 4.8 Red
MDD 1.25-110(8) 2.8 x 0.8 2.75 30
MDD 1.25-187(5) 4.8 x 0.5 4.75 32
MDD 1.25-187(8) 4.8 x 0.8 4.75 32
MDD 1.25-250 6.4 x 0.8 6.35 32.5
MDD 2-187(5) 1.5-2.5mm2
16-14AWG		 4.8 x 0.5 2.3 4.75 32 5.8 Blue
MDD 2-187(8) 4.8 x 0.8 4.75 32
MDD 2-250 6.4 x 0.8 6.35 32.5
MDD 5.5-250 4-6mm2
12-10AWG		 6.4x 0.8 3.4 6.35 32.5 6.8 Yellow

Specifications
High quality Waterproof Heat Shrink Ring Terminal Connector kit

we could packing as our cusotmer inquire (qty)

Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
